Yczj-450/200 Hydraulic Bucking Unit

Huludao City Liaoxi Petroleum Machine and Tools Factory
  • Certification：ISO
  • Applicable Pipe Diameter：60-450mm
  • Rated Breakout Torque：200kn·m
  • Rated Makeup Torque：200kn·m
  • Type：Petroleum Drilling Tool & Accessory
  • Usage：Screw-on and Screw-off Machinery

Base Info

  • Model NO.：YCZJ-450,200
  • Power Type：Electric
  • Transport Package：Wooden Case
  • Origin：China
  • HS Code：8431431000
  • Production Capacity：6 Sets,Month

Description

Basic Info.

Model NO. YCZJ-450/200 Power Type Electric Transport Package Wooden Case Origin China HS Code 8431431000 Production Capacity 6 Sets/Month

Product Description

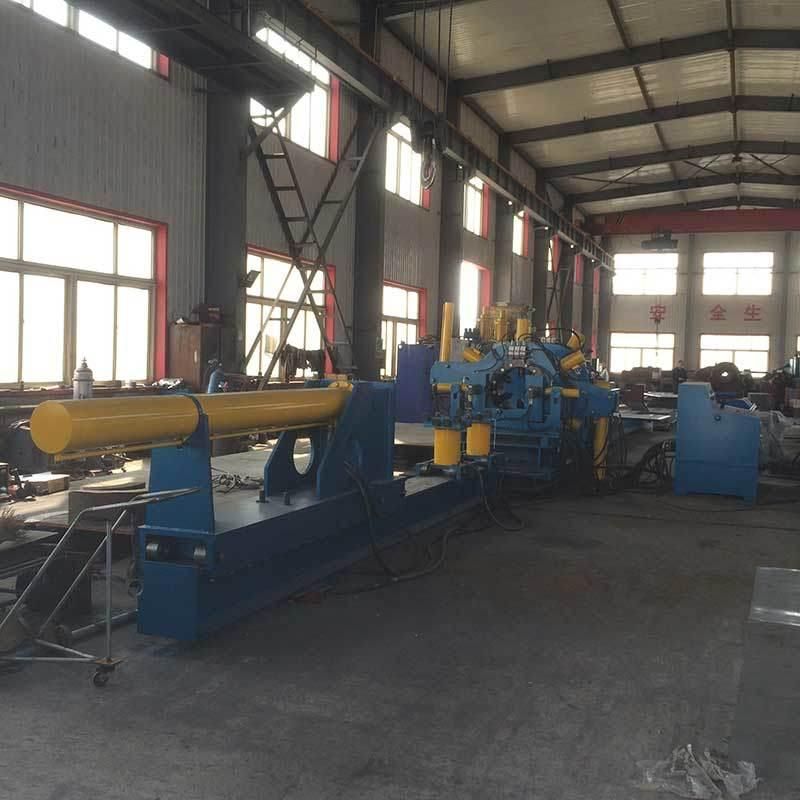

YCZJ-450/200 hydraulic bucking unit is a self contained hydraulic make-up and break-out machine designed for fast, safe and dependable maintenance of tools and motors in either a workshop or drill site locations. The basic machine consists of a bed complete with fixed headstock chuck, moveable tailstock chuck that applies torque, and a hydraulic console unit.
Specifications:
Rated Make-up torque200KN·m
Rated Break-out torque200KN.m
AccommodatesΦ60~Φ450mm
System pressure25Mpa
Motor power18.5KW
Motor rotating speed1460r/min
Spinner
       		Applicable pipe diameter:Φ60~Φ450mm
Max spinner torque: 4Kn·m
Push-pull unit
 		Stroke: 1500mm
Max pushing force:  ≤407KN
Max pulling force:   ≤280KN
