Petroleum Equipment & Machinery

7" Top Plug Wiper Cementing Plug

Puyang Zhongshi Group Co., Ltd.
  • Certification:API Certificate, ISO
  • Type:Cementing Accessories
  • Material1:NBR
  • Material2:Aluminium
  • Type1:Non Roatating
  • Type2:Top Plug

Base Info

  • Model NO.:7" wiper plug
  • Type3:Bottom Plug
  • Usage:Oil (Gas) Production Machinery, Oil and Gas Processing Machinery, Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery
  • Power Type:Electric
  • Transmission System:Mechanical
  • Transport Package:Wooden Box
  • Specification:5"-20"
  • Trademark:zs
  • Origin:Puyang
  • Production Capacity:500 PCS,Month

Description

Basic Info.

Model NO. 7" wiper plug Type3 Bottom Plug Usage Oil (Gas) Production Machinery, Oil and Gas Processing Machinery, Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery Power Type Electric Transmission System Mechanical Transport Package Wooden Box Specification 5"-20" Trademark zs Origin Puyang Production Capacity 500 PCS/Month

Product Description


7" top plug wiper cementing plug

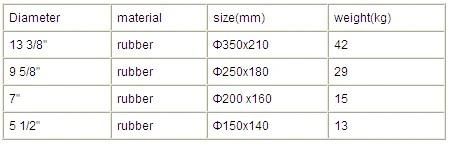

Specifications:

Top Cementing plugs:


1.Cement plug for well cementation accessories
2.Bottom plug and top plug
3.competitive price The top cementing plug is designed to exert continuous pressure on the casing wall.

The core is made of special materials such as Plastic, Aluminium or Phenolic depending on the application and well conditions. The tapered base fits the cavbity of the top plug initiating a positive seal. A solid rubber top plug is also available.

The bottom plug is like the top cementing plug. The fins and tail section provide positive wiping action. Fins also serve as a seal while cementing. The core of the bottom plug also made of special materials.A rubber diaphragm at the top of the plug ruptures after the plug is seated allowing cement to flow through.

Usage:

The cementing plug is used to separate the cement slurry from the mud. It can prevent the mud from blending into the cement slurry to influence the cementing quality.

Structure characteristics:

There are two kinds of cementing plug: Conventional cementing plug and special cementing plug. Conventional cementing plug is divided into Top plug and Bottom plug.
Special plug has Top/Middle/Bottom plug used in two-stage cementing, drill pipe plug and hollow plug used in drilling liner cementing and composite plug used in composite casing.

7" Top Plug Wiper Cementing Plug7" Top Plug Wiper Cementing Plug
7" Top Plug Wiper Cementing Plug
