• Model NO.：9 5 8"
• Thread2：Ltc
• Thread3：Stc
• Height：680
• Weight：45
• Usage：Oil (Gas) Production Machinery, Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery
• Power Type：Electric
• Transmission System：Mechanical
• Transport Package：Wooden Box
• Specification：5"-20"
• Trademark：zs
• Origin：Puyang
• Production Capacity：450 Per Month

Basic Info.

Model NO. 9 58" Thread2 Ltc Thread3 Stc Height 680 Weight 45 Usage Oil (Gas) Production Machinery, Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery Power Type Electric Transmission System Mechanical Transport Package Wooden Box Specification 5"-20" Trademark zs Origin Puyang Production Capacity 450 Per Month

Product Description

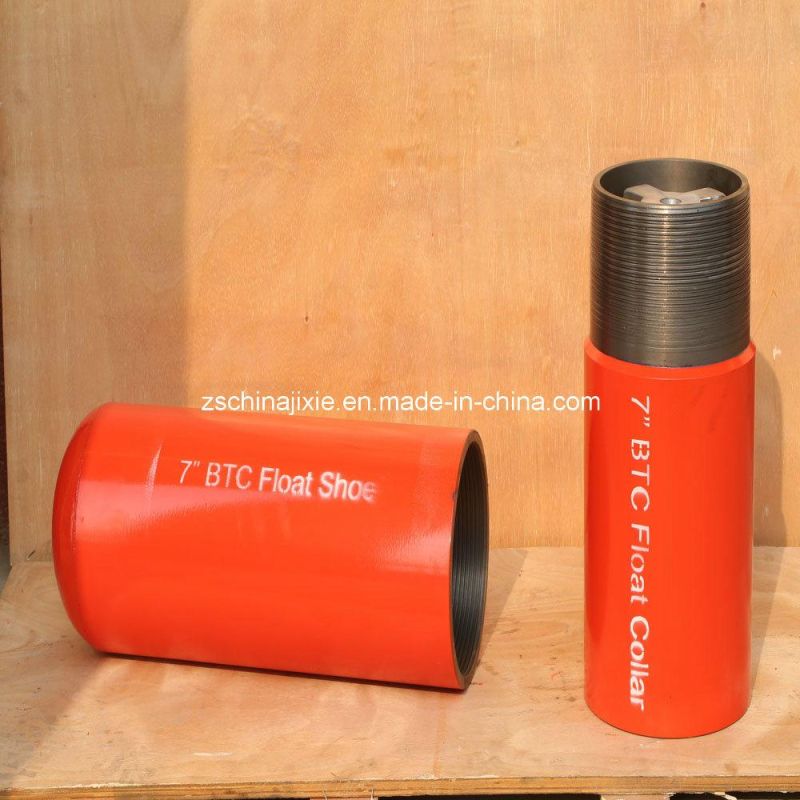

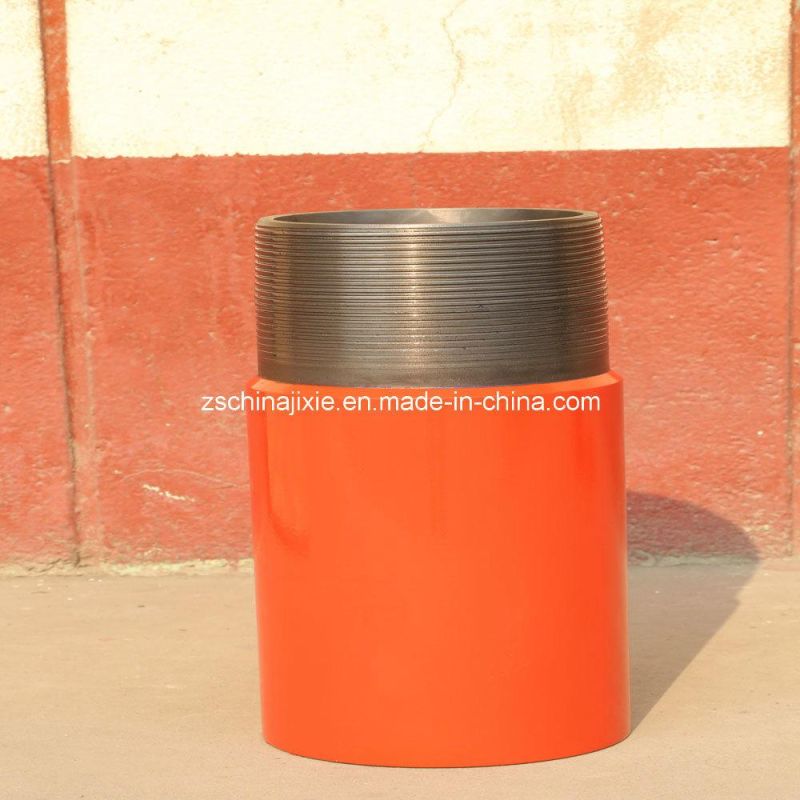

cementing accessories-insert stab in float collar
Float collar is installed on the casing and up the float shoe. Like float shoe, it also provide buoyancy to the casing string when it's lowered, reducing the load on the drilling rig. A build-in check valve provides buoyancy to the casing string also prevents cement from re-entering the casing after it's displaced. It's a receptacle to cement plug.

Float Collar Features:

1. All inner parts are made of easily drillable aluminum alloy.
2. The device can be connected directly to the casing of the same type.
3. Reliable back-pressure leak proof structure, enable grout or slurry flow with less resistance.
4. Valve seat and valve disk can effectively prevent grout from flowing back.
5. Non-rotating landing plate is available on request.
6. Either PDC or rock bit drillable.

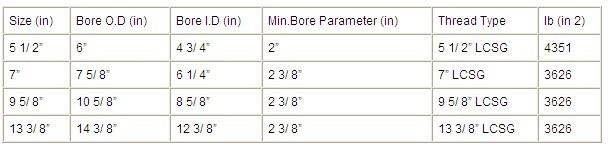

Technical Parameters:
