• Model NO.：FIG100, 200, 206, 406, 602, 1002, 1502
• Product Name：Fmc Weco Fig 200 206 602 1002 1502 Hammer Union
• Working Pressure：2000psi~15000psi
• Size：1" - 8"
• Connection：Threaded, Welded
• Working Medium：Oil, Natural Gas and Gas Containing H2s, CO2
• Transport Package：Export Packing
• Specification：FIG100, 200, 206, 406, 602, 1002, 1502
• Trademark：OilMan
• Origin：China
• HS Code：84314310
• Production Capacity：1000 Pieces Per Month

Basic Info.

Model NO. FIG100, 200, 206, 406, 602, 1002, 1502 Product Name Fmc Weco Fig 200 206 602 1002 1502 Hammer Union Working Pressure 2000psi~15000psi Size 1" - 8" Connection Threaded, Welded Working Medium Oil, Natural Gas and Gas Containing H2s, CO2 Transport Package Export Packing Specification FIG100, 200, 206, 406, 602, 1002, 1502 Trademark OilMan Origin China HS Code 84314310 Production Capacity 1000 Pieces Per Month

Product Description

FMC Weco Fig 200 206 400 602 1002 1502 Female Hammer Union
 1.Product Overview
(a).Hammer unions manufactured by our company is mainly used in cementing, crushing, acidifying, test and blocking, kill line, high pressure manifolds and vehicle-mount system;Underground work is used to connect the various parts of the pipeline construction. Flexible operation, high voltage and other characteristics;
(b).The high pressure wing union designed and manufactured by our company includes thread union and welding union, with specification 1"~12" and cold working pressure 14Mpa-105Mpa (2000psi-15000psi);
(c).High pressure hummer union is marked with apparent connection buckle and pressure rating;
(d).The anti-sulfuretted hydrogen hammer union is workable under acid environment and shows grass green.

2.Design Features
(a).With precise ball surface and 90 degree conical surface processed by precise machine, Wing hammer union is of high strength and pressure-bearing capacity;
(b).The LP thread, UN thread, EU thread, processed by numerically-controlled machine and imported cutter, has high precision and strong sealing, ensures high press and sealing;
(c).The seal ring is made by imported sizing material. The seal ring can keep strong sealing for joints and avoid joints from corrosion, and prolong the product life;
(d).The wing hammer union which specially applicable to acid environment is designed and manufactured in strict accordance with NACE MR0175;
(e).Wing unions joints are all ACME thread, thus it is easy to assemble, disassemble without any tools and it has self-lock function. The product parts are universal internationally and can be exchanged.

3. Main Technical Parameters for Hammer Union


Size	SMLS ---1"-8"

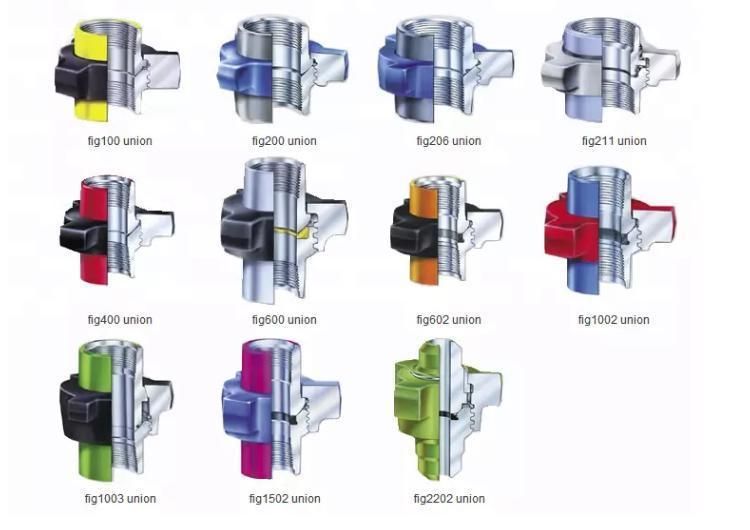

type	fig100, fig200, fig206, fig207, fig300, fig400, fig602, fig1502
Standard	API 6A
Material	carbon steel: 45#, 20#, Q345 etc. Stainless steel: ASTM SS304, 304L, 316, 316L, 321, 1Cr18Ni9Ti, 00Cr19Ni10 etc.
Surface	Yellow, Red, Blue, Orange or upon customer's requirement
Certification	ISO 9001:2008
Packing	Plywood cases, pallets, or as per your request.
Application	Petroleum, chemical, machinery, electric power, shipbuilding, paper making, construction etc
Port of delivery	Shanghai port, Tianjin port, Qingdao port etc.




	Working  Pressure	1"	2"	3"	4"	6"	8"
FIG 100	1000LB		√	√	√	√	√
FIG 200	2000LB	√	√	√	√	√	√
FIG 206	2000LB	√	√	√	√	√	√
FIG 207	2000LB	√	√	√	√
FIG 300	3000LB	√	√	√	√
FIG 400	4000LB	√	√	√	√
FIG 602	6000LB		√	√	√
FIG 607	6000LB		√
FIG 1502	15000LB	√	√	√

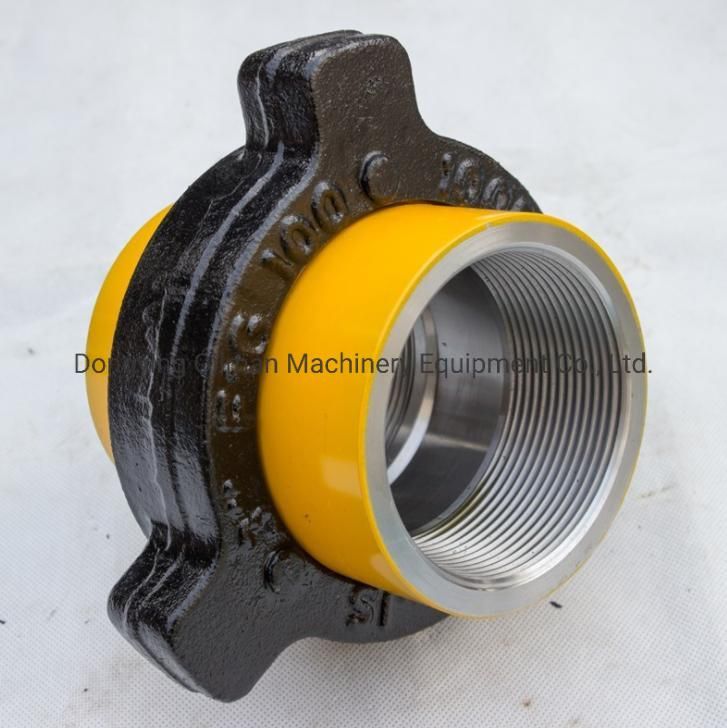

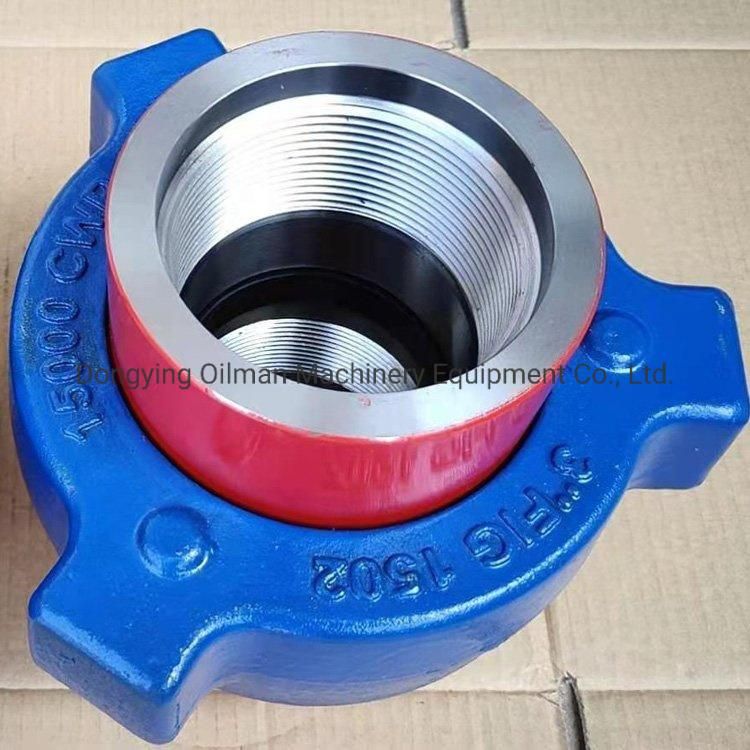

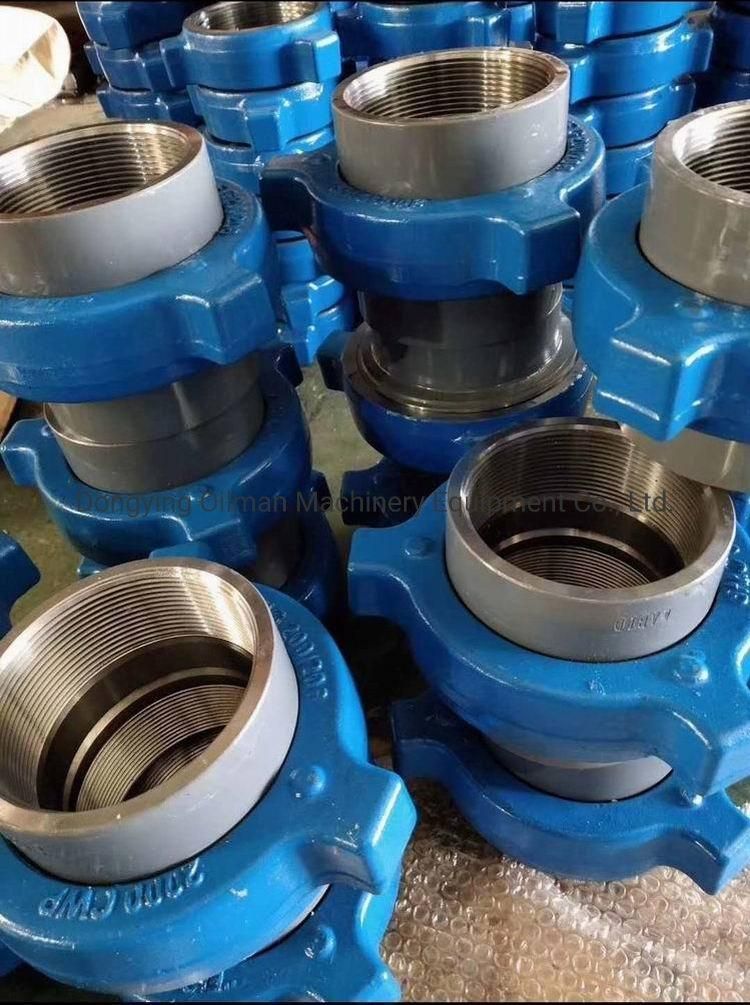

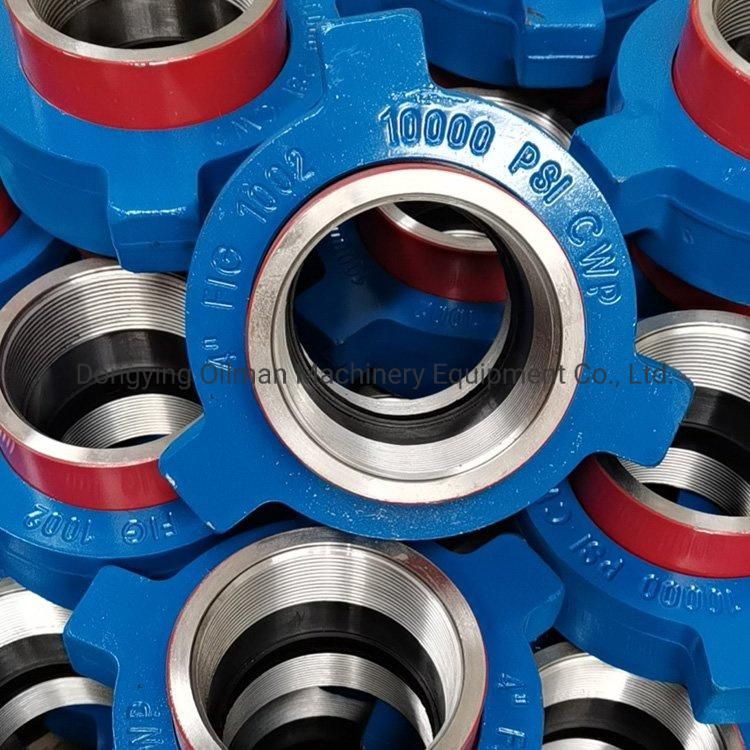

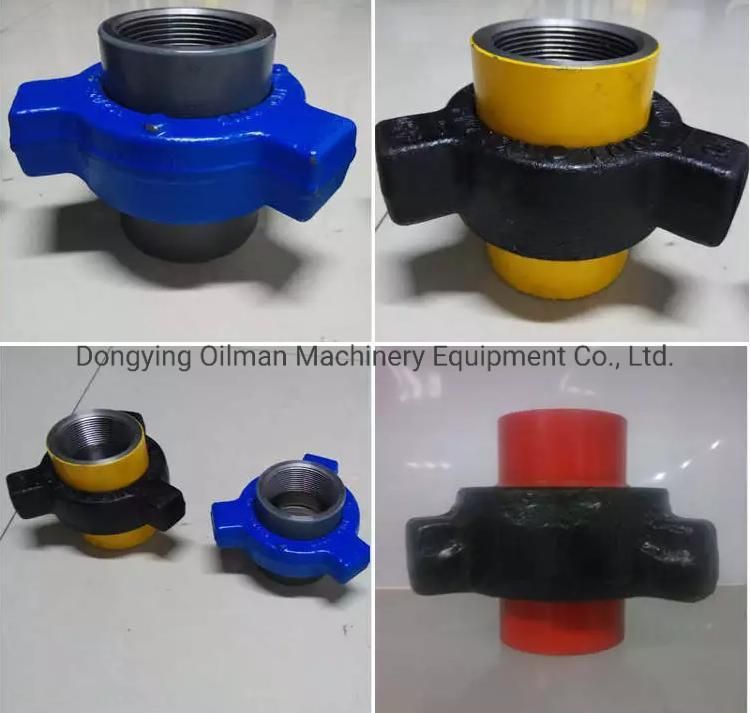

Hammer Union Pictures:

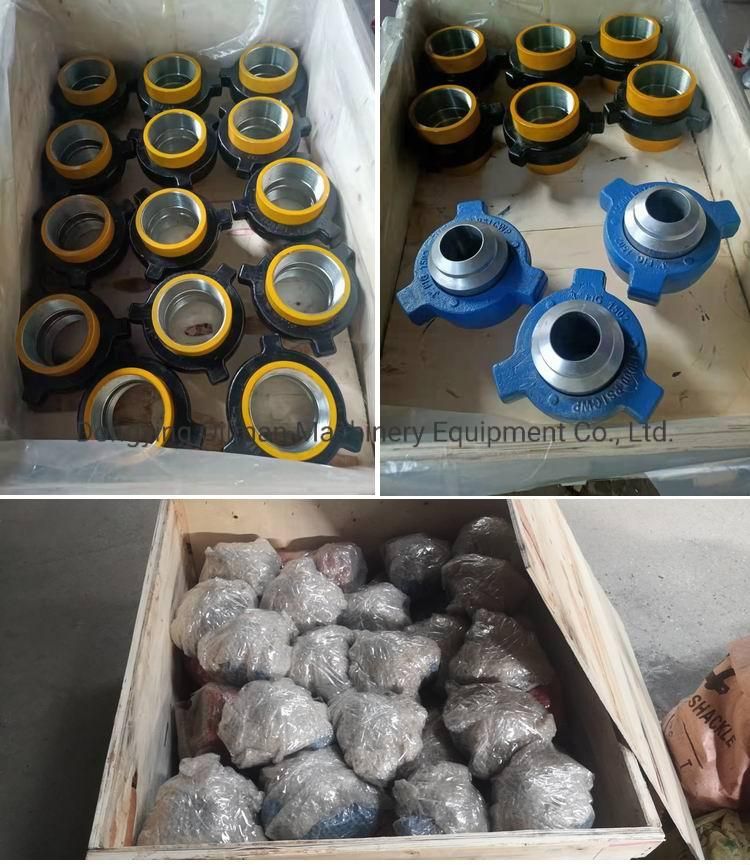

Packing & Delivery of Hammer Union:

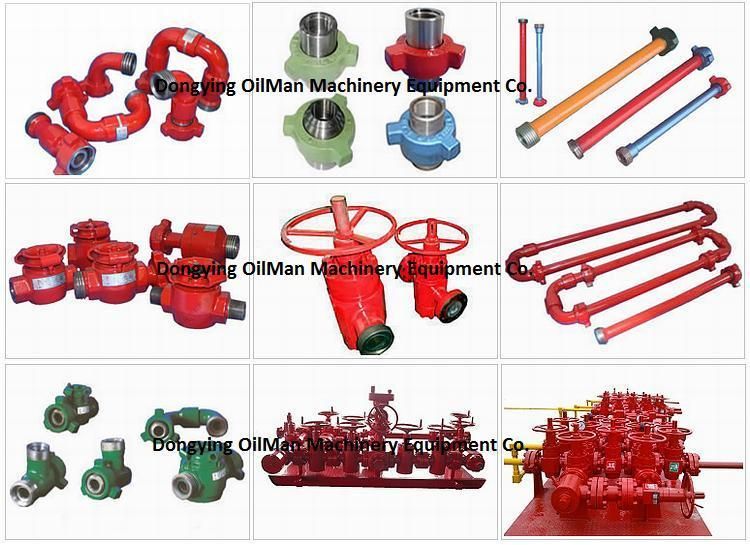

Related Products:

About us

Dongying OilMan Machinery Equipment Co.,Ltd is a professional supplier of various petroleum equipment, including drilling rig and accessories, well control system, solid control equipment, drill string, handling tools, downhole tools, OCTG, drilling tools, cementing tools and sapre parts with API certification. Our products have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.



Certificates

API-5CT, API-10D, API-7K, API-11E, API-6A, API-11AX, API-5D, ISO 9001, ISO14001, ISO18001 etc.
