Downhole Slickline Tools Un Qls Wireline Hydraulic Jar
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：BBSL
- for Wire Size：0.108", 0.125"
- Connection：Un, Qls, Hdqrj
- Length：2FT, 3FT,5FT
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. BBSL for Wire Size 0.108", 0.125" Connection Un, Qls, Hdqrj Length 2FT, 3FT,5FT Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

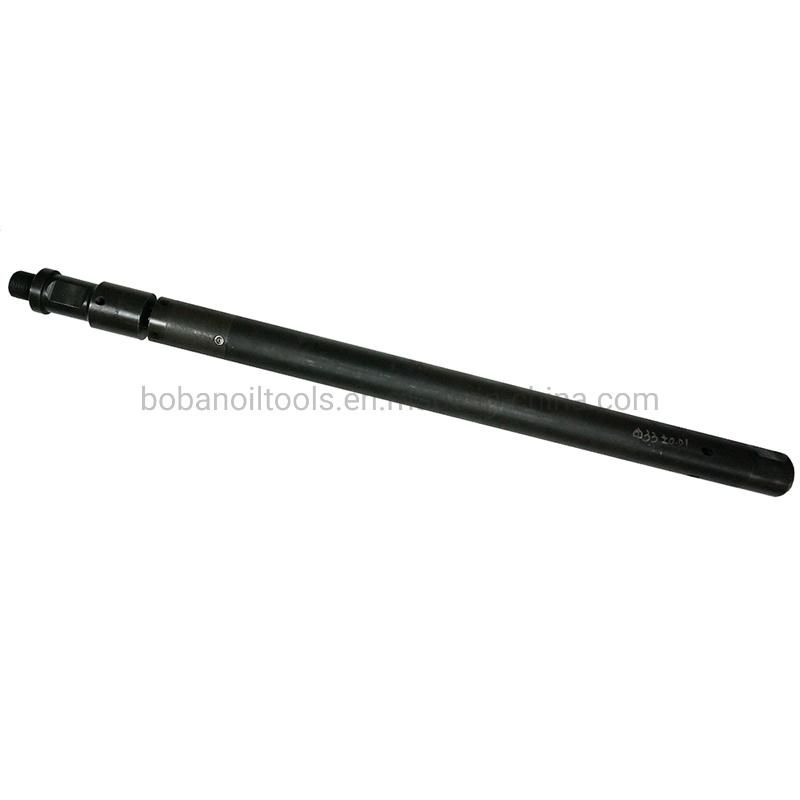

Downhole Slickline Tools UN QLS Wireline Hydraulic JarI. IntroductionA wireline hydraulic jar is a wireline service tool designed for dependable upward jarring during wireline operations. When a strain is taken on the wireline the top sub and mandrel are pulled upward while the piston is impeded in its upward movement by the hydraulic fluid. This delaying action allows sufficient strain to be taken on the line to strike a blow of the required intensity.
BOBAN series wireline swivel joints are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
| Size | Fishing Neck | Connection |
| 1.5" | 1.375" | 15/16UN |
| 1.75" | 1.375" | 15/16UN |
| 1.875" | 1.75" | 1-1/16UN |
| 2.125" | 1.75" | 1-1/16UN |
| 2.5" | 2.313" | 1-9/16UN |
