6m3 Mud Mixing Unit with Mixer Agitator Tank

TIANJIN RUILIKE ENGINEERING MACHINERY CO., LTD.
  • After-sales Service：Support
  • Warranty：Lifelong
  • Certification：CE, ISO9001:2015
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Cast Steel

Base Info

  • Model NO.：RLKPJ6
  • Type：Mud Tank
  • Trenchless：Solid Control Equipment
  • Mud System：Mud Mixing Unit
  • Transport Package：Wooden Box
  • Specification：6m3
  • Trademark：RLK
  • Origin：Made in China
  • HS Code：84748090
  • Production Capacity：600

Description


Agitator or mud gun
Agitator power5.5Kw x 15.5Kw x 27.5Kw x 27.5Kw x 211Kw x 2Impeller layerOne layerOne layerDouble layerDouble layerDouble layerPower of Mixer Pump11-15Kw11-22Kw11-37Kw22-55Kw22-55KwNet tank size
No injection device1.95x1.95x1.72m3.55x1.95x1.72m4x2x2.08m5.3x2x2.08m6.2x2.1x2.08mN.W. of tank1500kgs2300kgs2800kgs3600kgs4000kgs
Remak:
Cubage of tank and flow of drilling fluid pre-preparing all can customize as order.
Power of mixer pump and flow all can customize according flow rate of mud pump. whole external size will be changed as power spec.

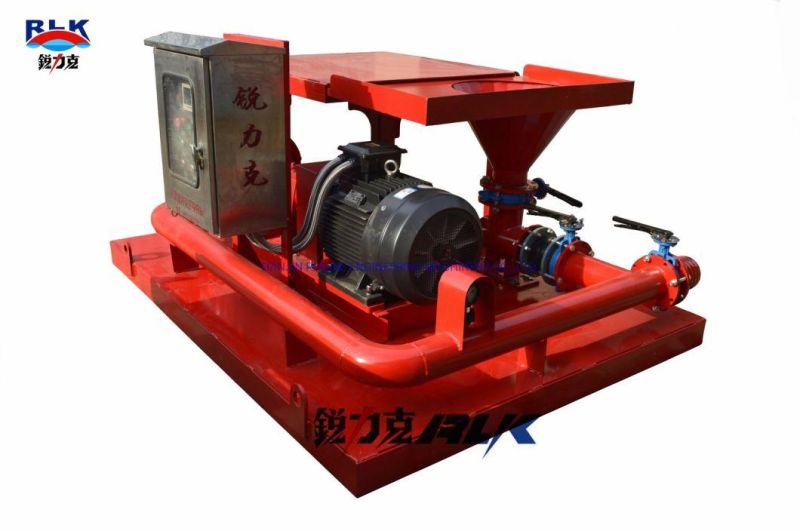

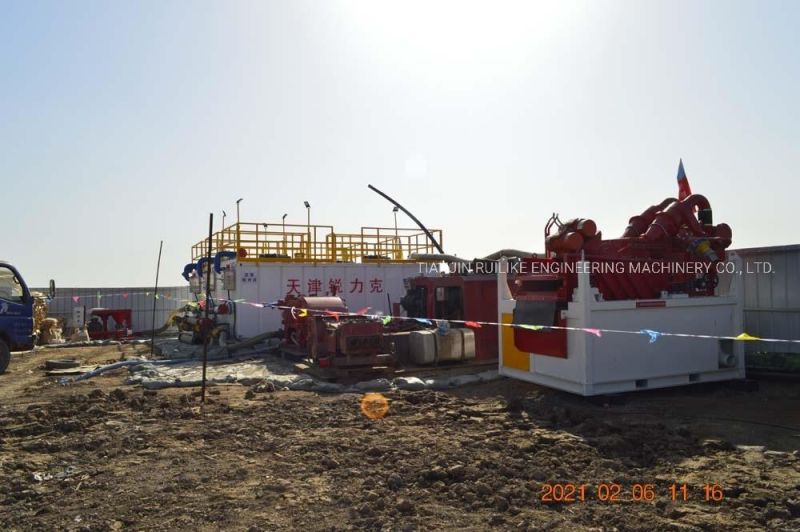

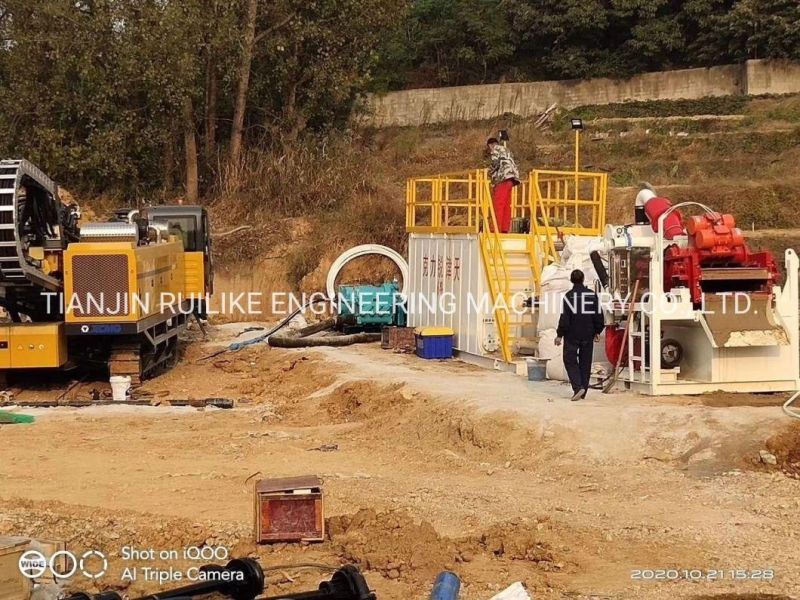

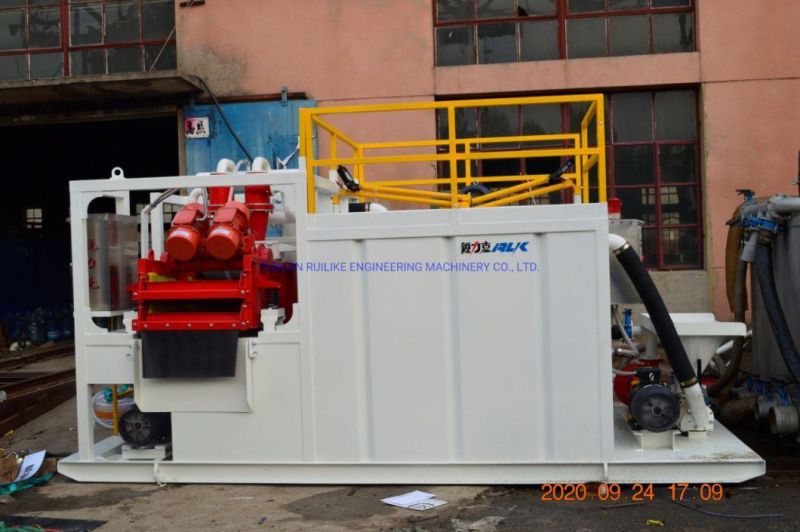

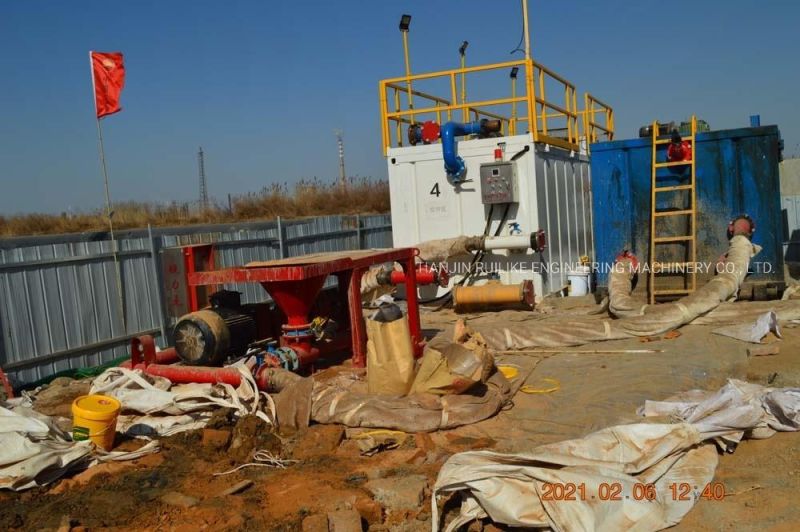

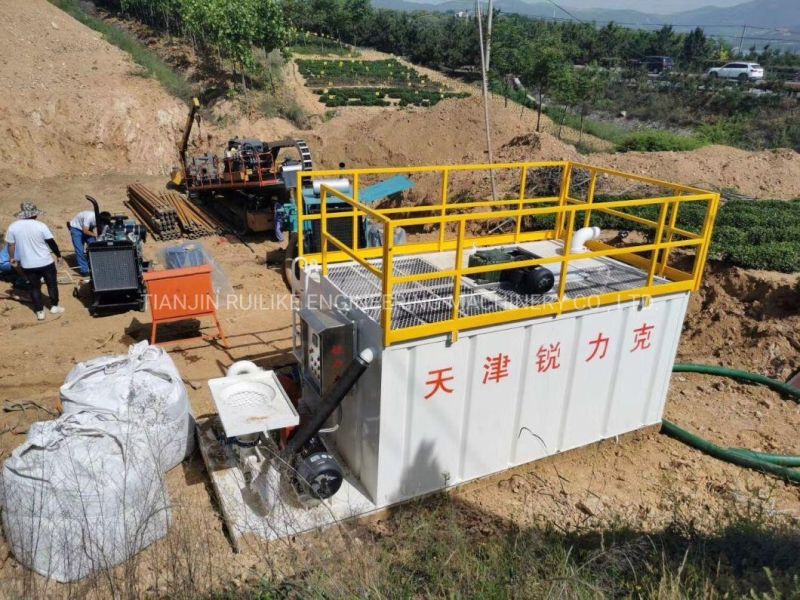

Picture of machine
6m3 Mud Mixing Unit with Mixer Agitator Tank

6m3 Mud Mixing Unit with Mixer Agitator Tank6m3 Mud Mixing Unit with Mixer Agitator Tank6m3 Mud Mixing Unit with Mixer Agitator Tank
6m3 Mud Mixing Unit with Mixer Agitator Tank6m3 Mud Mixing Unit with Mixer Agitator Tank
6m3 Mud Mixing Unit with Mixer Agitator Tank6m3 Mud Mixing Unit with Mixer Agitator Tank6m3 Mud Mixing Unit with Mixer Agitator Tank6m3 Mud Mixing Unit with Mixer Agitator Tank

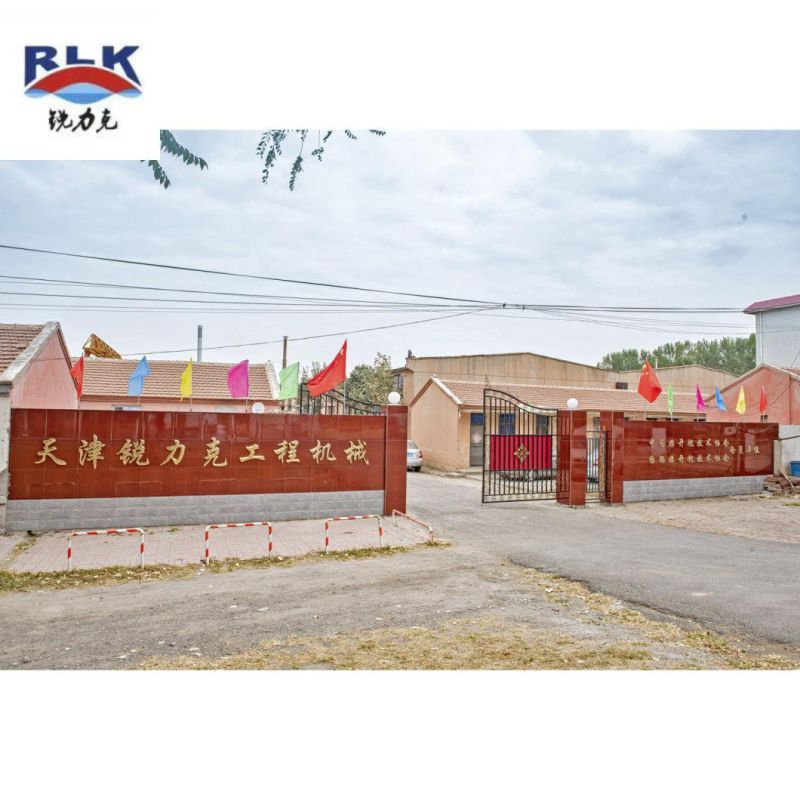

Picture of My factory

6m3 Mud Mixing Unit with Mixer Agitator Tank

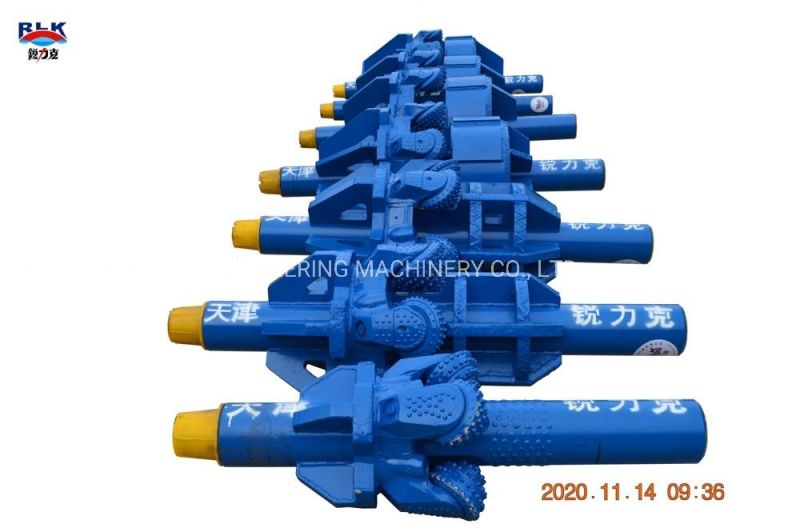

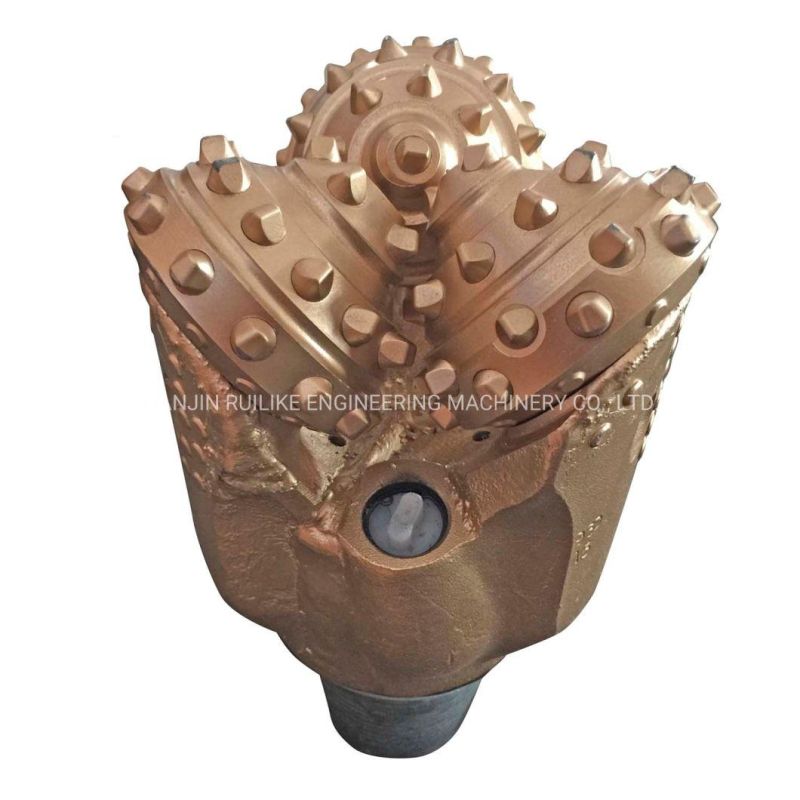

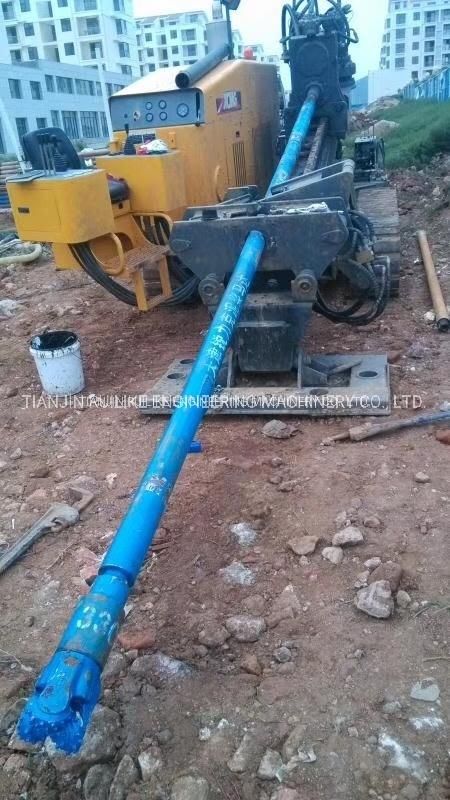

We manufacture mill tooth backreamers and insert tooth backreamers with short lead time. According to the characteristics of HDD machine and different formation conditions, choose proper tooth shape, bearing structure, sealing form and inclination of palm back. Hydraulic cutting, smooth sand discharge, effectively reduce the accumulation of rock and sand, cone body adopts hot compress anti-abrasive gold, reduce wear and tear, unique anti-stripping design, to avoid roller bearing damaged, the roller falling off in the hole as to causing accident. Guarantee of welding process to prevent overheat to damage roller seal and bearing. The drill body adopts spiral design, with good straightening and slagging effect, reduces repeated rock breaking by roller, and improves reaming speed. (the underreamer between 220mm-1600mm diameter be bespeak as order).
