• Model NO.：RLK200
• Type：Drilling Fluid Shale Shaker
• Trenchless：Solids Control Equipment
• Mud Recycler：Cleaning Drilling Mud
• Transport Package：Unpacked
• Specification：RLKJC200
• Trademark：RLK
• Origin：Made in China
• HS Code：8474100000
• Production Capacity：600

Installed Power Total Power40 KwPump Motor37 KwVoltage / Frequency380 V / 50 HzCyclone Diameter300 mmQ'ty2Cut Point(DN50)>60μm  Area3.06 m²No. of Decks2Material/Polyurethane  Dia of inlet4 inchDia of outlet8 inchSize3000mm x 2000mm x 2530mmWeight3600kgs

Mud Cleaning system Introduction
Mud cleaning system from TIANJIN RUILIKE be used for oil and gas drilling, trenchless projects, Horizontal Directional Drilling, Injection-and anchor drilling ,Slurry supported garb works for pit sand diaphragm walls, Well drilling, Deep drilling, Micro-tunneling, Pile foundation projects adopting slurry hole, Pipe-jacking constructions, Rotary drilling rig, Aggregate processing, Mining Industry, Tunneling projects.


1.  Fully purifying the drilling mud is conducive to controlling the performance index of the mud, reducing the sticking accidents and improving the quality of hole making.
2. Effective separate drilling mud and solids, conducive to improving the working efficiency of hole making.
3. The repeated use of drilling mud is beneficial to saving slurry materials and reducing construction costs.
4. Closed-circuit circulation of mud and low water content of slag material are beneficial to reduce environmental pollution.
5. The integrated product design greatly saves the floor space, compressing the collective and increasing the convenience of transportation.
6. The returning drilling mud from the drilling hole can be recovered 80-90%, can save sodium soil and other raw materials 40-50%, the discharge of solids moisture content can be controlled within 30%.It can be buried on site.
7. It reduces the labor intensity of the workers to configure the new pulp and saves the 24 hours hydration time of the new pulp.
8. Greatly saves the transportation cost of the waste mud without purification and recovery.This cost is particularly evident when drilling into rock formations.

To sum up, the use of the Slurry Separation System is conducive to the related engineering construction of high quality, efficient, economic, civilized, is a pure green environmental protection machinery products.


WORKING PRINCIPLE OF INTEGRATED SLURRY SEPARATION SYSTEM (Please check the work process diagram)

With the help of the pit pump, the drilling mud in the mud pit enter into the lower screen of the shale shaker, this is the first stage screen processing, large particles of solid phase is expelled, liquid mud leakage into the mud tank under the shale shaker, with the help of the slurry pump on the slurry separation system, drilling mud in the mud tank enter into the hydrocyclone for the secondary centrifugal separation, solid phase were obigger than 60 microns to separate the back to the upper deck of the top screen and screening out the back, clean mud from upper cyclone discharge, back to the undersize circulating tank for filling slurry discharge enter to the others slurry storage tank for drill rig. In the cyclone circulation tank back fill slurry pipeline set liquid level automatic balancing device, composed of floating ball and liquid level frame, when circulating tank liquid level rise, floating ball, level the flap closed, mud a lot outside, when the liquid level lower level open, turning back to the tank filling slurry, WaiPaiLiang decreases, when the liquid level to adjust the level, no longer outside, all back to the tank to fill slurry, reach the status since the circulation system. At the discharge outlet of the slurry pump, one way enters the cyclone, and a bypass pipeline is connected with the mixing nozzle pipeline in the circulating tank, and a valve is provided. When the deposition in the tank increases, the valve can be opened to backwash and stir the deposition in the circulating tank, and the slurry after mixing is pumped into the cyclone for solid-liquid separation again.The schematic diagram is as follows:

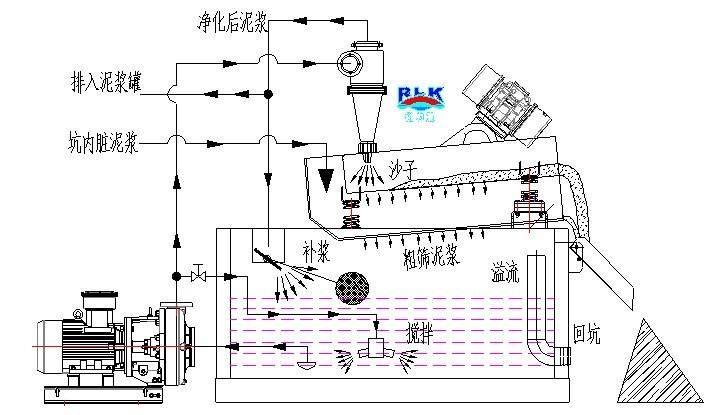

                                    The Picture of Diagram of Work Process
