Sucker Rod Wheeled Rod Guide
Dongying Zhaoxin Industry and Trade Co, Ltd.- After-sales Service：After Sale Service
- Warranty：6 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：Atmospheric Pressure
- Material：Alloy
Base Info
- Model NO.：7,8"

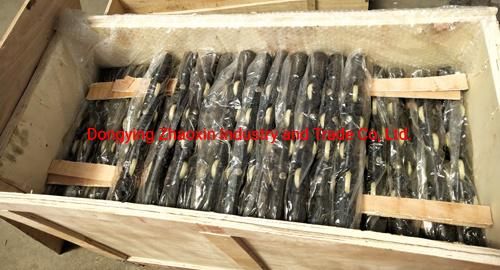

- Transport Package：Wooden Case
- Specification：7,8"
- Trademark：ZX
- Origin：China
- HS Code：8481431000
- Production Capacity：3000 PCS Per Month
Description
Basic Info.
Model NO. 7/8" Transport Package Wooden Case Specification 7/8" Trademark ZX Origin China HS Code 8481431000 Production Capacity 3000 PCS Per MonthProduct Description

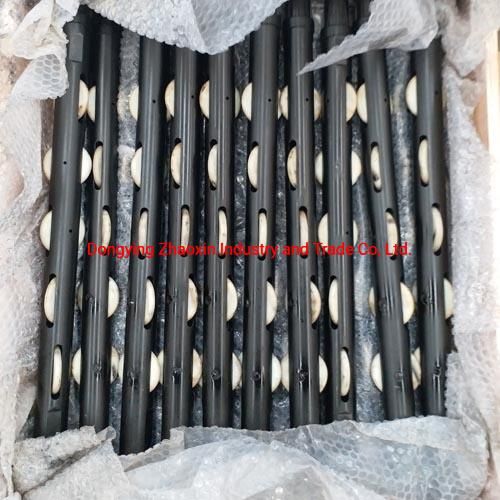

WHEELED ROD GUIDE
Wheeled rod guides centralize the rod string and reduce friction during stroking, and also reduce wear on sucker rods and tubing.
Guide Couplings should be installed:
1.On the first two or three rods above the bottom hole pump.
2.Intermittently throughout the rod string where wear is indicated on rods or tubing.
3. Where known hole deviation occurs.
4.On the first two or three rods below the stuffing box
| Application | Diameter | Length | Length of groove |
| 5/8" rod 2-3/8" tubing | 1.5 | 27 | 1.80 |
| 3/4" rod 2-3/8" tubing | 1.5 | 27 | 1.8 |
| 5/8" rod 2-7/8" tubing | 1.5 | 27 | 2.25 |
| 3/4" rod 2-7/8" tubing | 1.5 | 27 | 2.28 |
| 7/8" rod 2-7/8" tubing | 1.625 | 27 | 2.28 |
| 1" rod 2-7/8" tubing | 2.0 | 29 | 2.28 |
| 3/4" rod 3-1/2" tubing | 1.5 | 31 | 2.75 |
| 7/8" rod 3-1/2" tubing | 1.625 | 31 | 2.75 |
| 11.5" rod 3-1/2" tubing | 2.0 | 31 | 2.75 |
contact : victoria
