Dissolvable Frac Plug
Dongying Zhaoxin Industry and Trade Co, Ltd.- After-sales Service:After Sales Service
- Warranty:6 Month
- Manufacturing Process:CNC Milling
- Surface Treatment:Without Processing
- Operation Pressure:10000psi
- Material:Alloy
Base Info
- Model NO.:5-1,2"
- Application:Dissolvable
- Transport Package:Wooden Case
- Specification:5-1,2" 7"
- Trademark:ZX
- Origin:China
- HS Code:8431431000
- Production Capacity:100 Set Per Month
Description
Basic Info.
Model NO. 5-1/2" Application Dissolvable Transport Package Wooden Case Specification 5-1/2" 7" Trademark ZX Origin China HS Code 8431431000 Production Capacity 100 Set Per MonthProduct Description

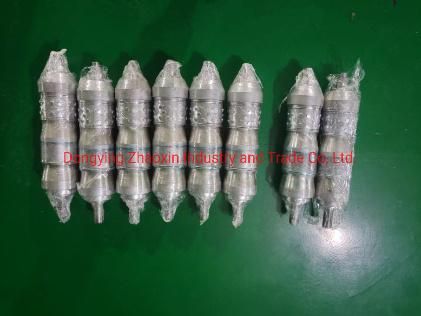

FULLMETAI DISSOLVABLE PLUGMultistage fracturing of horizontal Wells is a major stimulation measure for low permeability and unconventional oil and gas resources development. Dissolvable bridge plug is the main technique for staging horizontal Wells. With the development of low-grade resources, the length of horizontal interval and the number of fracturing stages are increasing, and its importance is becoming more and more prominent.
full-metal dissolvable bridge plugs has many specification like φ89, φ99, φ108 ect, which can meet the needs of multistage fracturing of different well diameters
The full-metal dissolvable bridge plug is adapted to the Baker #10/#20 setting tool, the length of the bridge plug body is small, and the setting displacement is short;
Specification
Size | Casing ID mm | Length mm | Working pressure MPa | Setting tool | Working temperature |
φ89 | φ99.6 φ101.6 | 310 | 70 | #10 | 20-180ºC |
φ89 | φ104.8 | 320 | 70 | #20 | 20-180ºC |
φ99 | φ114.3 φ115.2 | 320 | 70 | #20 | 20-180ºC |
φ108 | φ121.4 φ124.3 | 310 | 70 | #20 | 20-180ºC Con |
