• Model NO.：9T1000 12T1600 12P160
• Type：Liner
• Outer Sleeve：Forged
• Inner Sleeve：High Chromed
• Main Products：Liner
• Tensile Strength：>610MPa
• Yield Strength：>450MPa
• Name：Zirconia Liner
• Surface Treatment：Sand Blast
• Theory：Centrifugal Pump
• Transport Package：Pallet
• Specification：4-1,2"to7-1,2"
• Trademark：Lake
• Origin：China
• Production Capacity：200PCS,Month

Basic Info.

Model NO. 9T1000 12T1600 12P160 Type Liner Outer Sleeve Forged Inner Sleeve High Chromed Main Products Liner Tensile Strength >610MPa Yield Strength >450MPa Name Zirconia Liner Surface Treatment Sand Blast Theory Centrifugal Pump Transport Package Pallet Specification 4-1/2"to7-1/2" Trademark Lake Origin China Production Capacity 200PCS/Month

Product Description

Company Prefile:
Lake Petro is located in Dongying City,which is famous for Shengli Oilfied and the largest manufacturing hub of prtroleum equipment in China.Following the principle of "quality first,science and technology innovated,pepole oriented" ,every Lake Petro person is sparing no effort to provide the customers with best products and services.Our products are based on advanced production line and testing equipment, our products are designed and manufactured according to certification of API,ISO,GOST,etc.

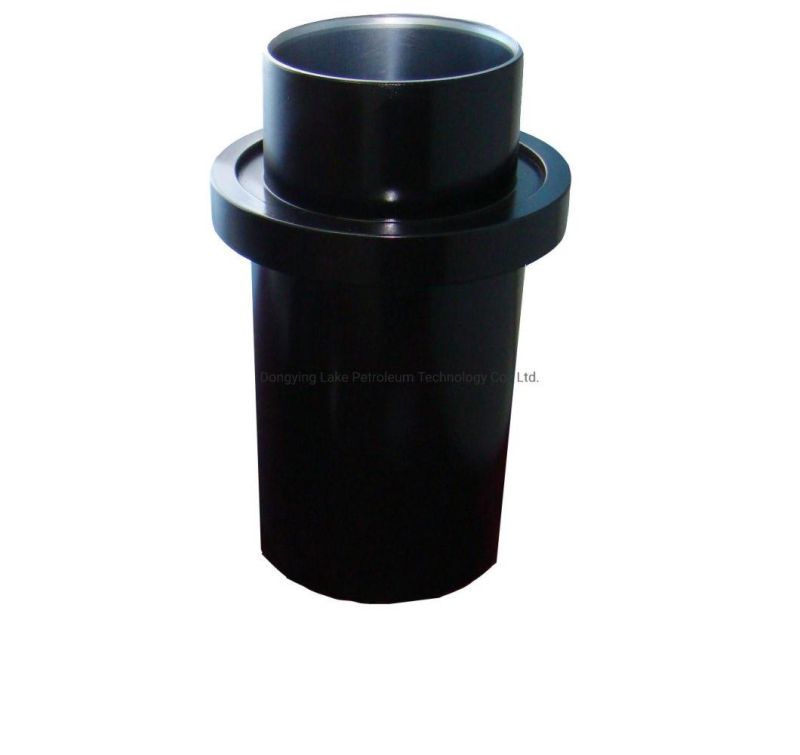

 Liner
Liner is divided into Ceramic Sleeve Liner, Double Metal Liner, Carburization & quenching Liner and Chrome-plated Liner

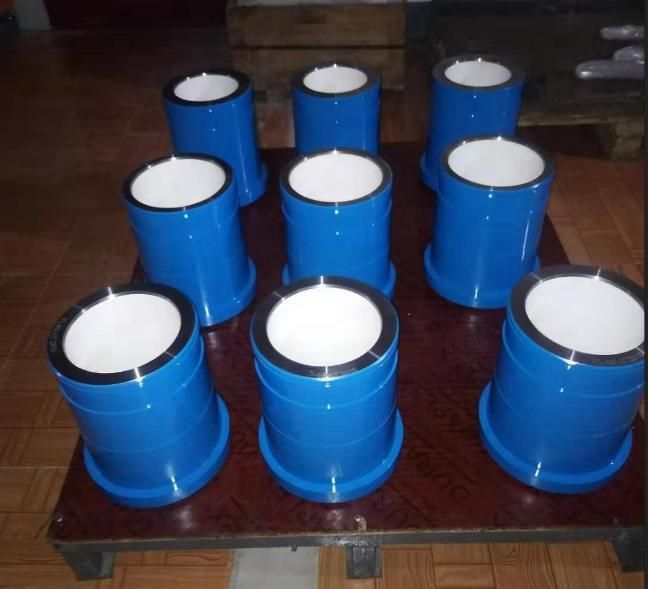

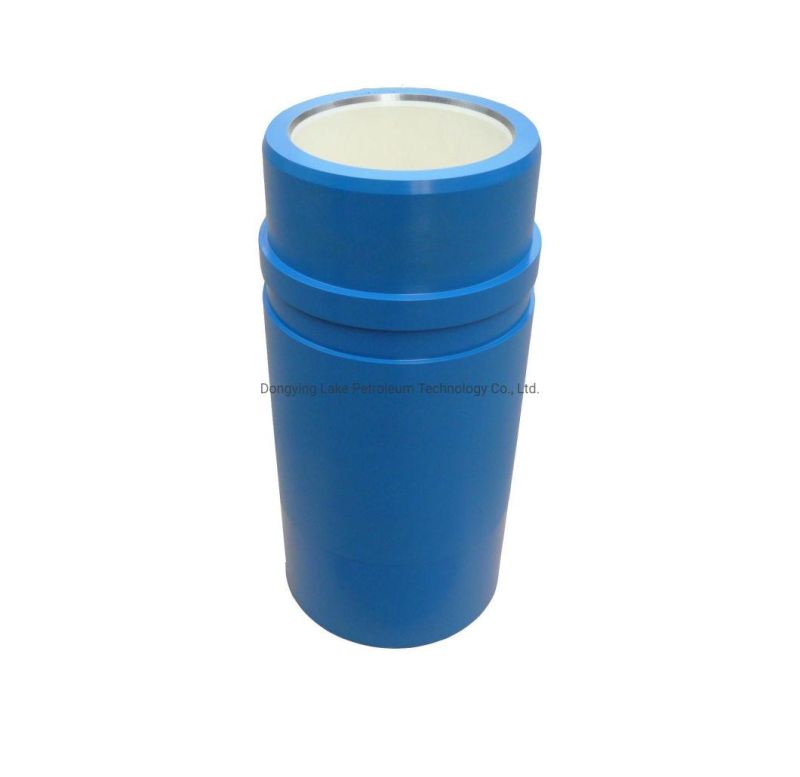

Ceramic Sleeve Liner
Material of sleeve is Zirconia and its shell is 45#(ASTM1045)forged steel.

No	Properties	Units	Values	Remark
1	Composition	%	Y2O3+ZrO2≥99.5%	ZrO2≥95%
2	Density	g/cm³	5.95-6.05
3	Flexural Strength	Mpa	800-1200
4	Tensile Strength	Mpa	500-600
5	Weibull Modulus	M	>30
6	Compressive Strength	Mpa	>1950
7	Modulus of Elasticity	Gpa	200
8	Poisson `s Ratio		0.31
9	Hardness	HV0.3kg/mm²	>1120	HB≥87
10	Fracture Toughness	Mpam¹/²	8-10
11	Average Grain Size	μm	0.4-0.6
12	Thermal Conductivity	W/m*K	3.08

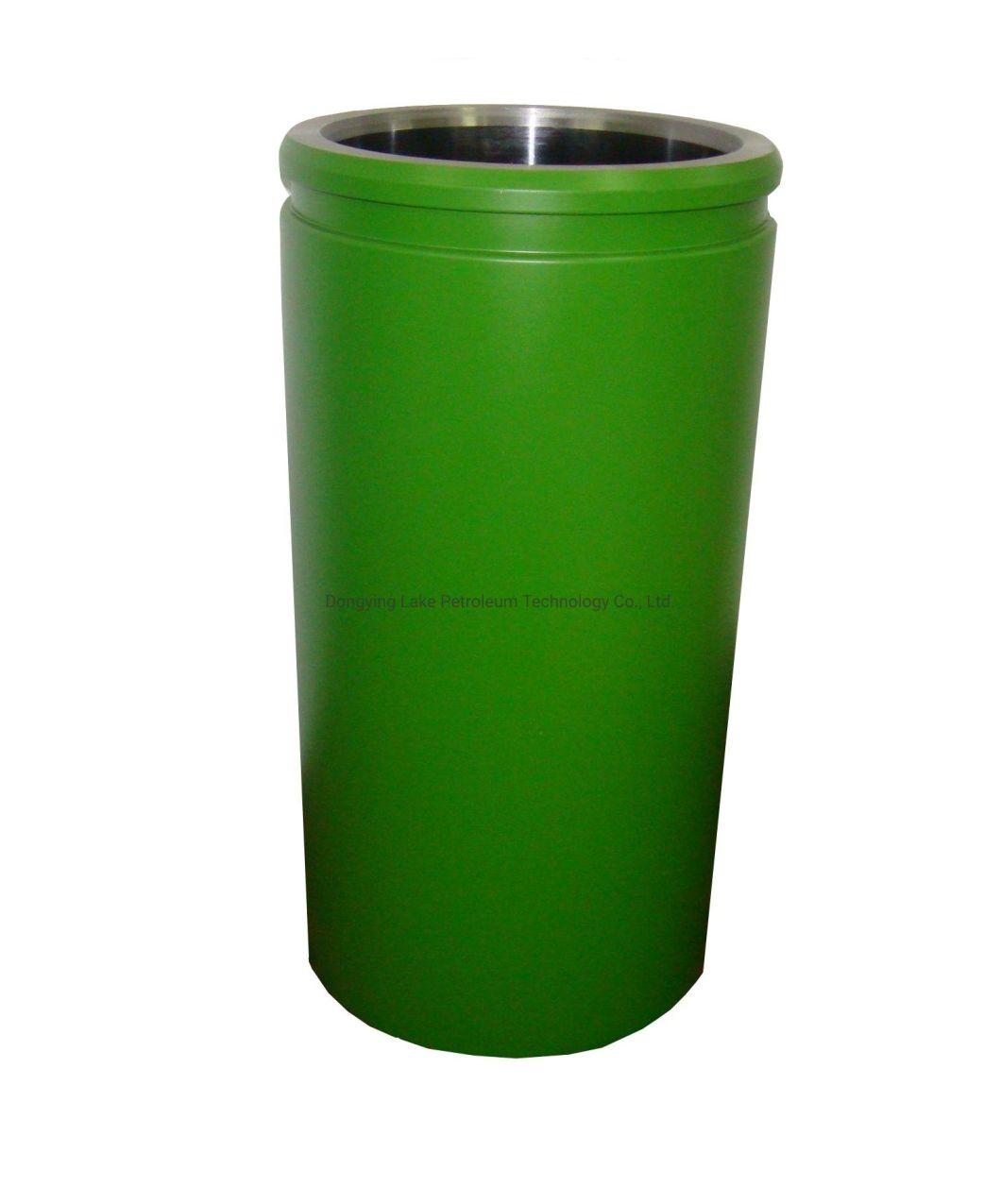

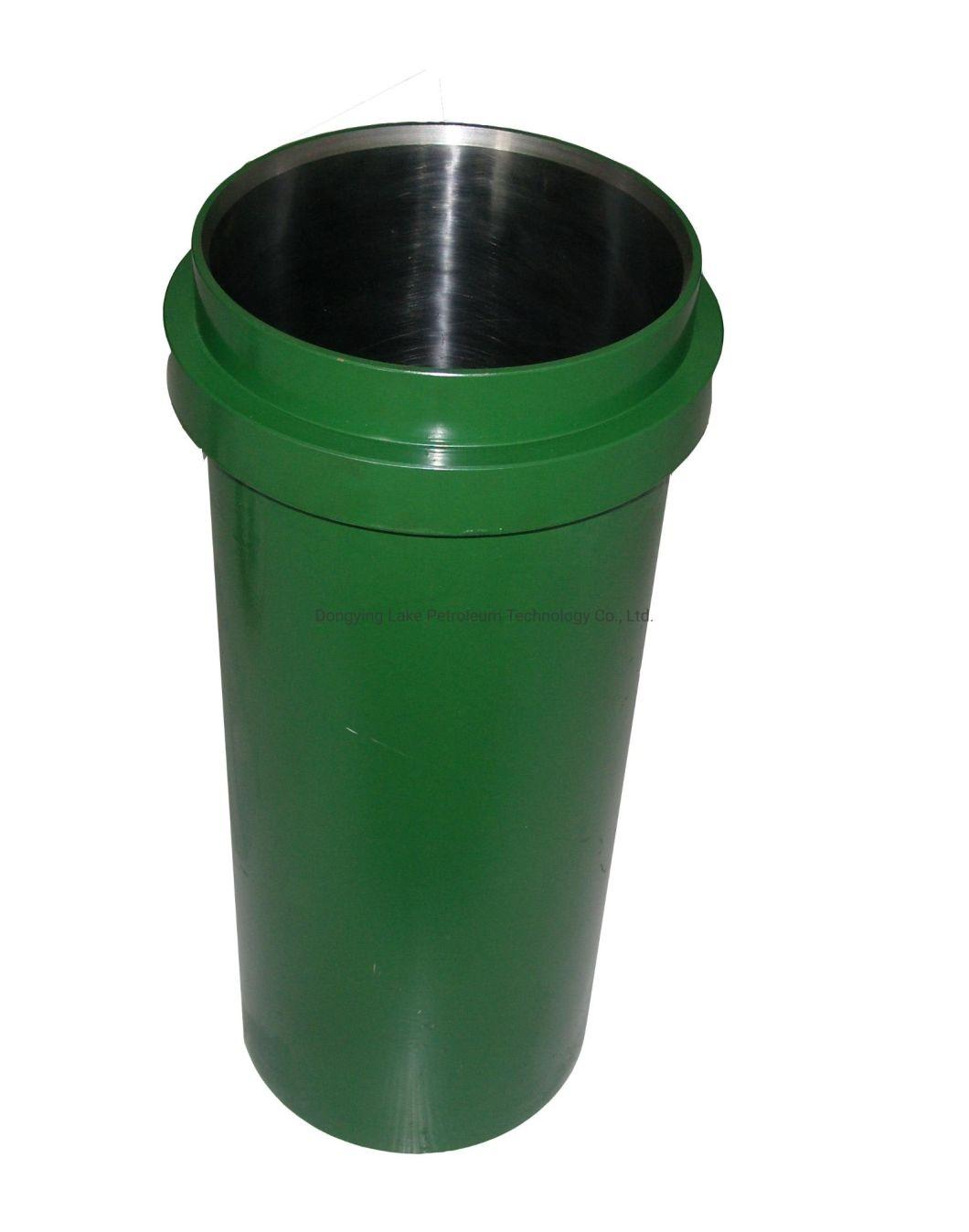

Double Metal Liner
Material for shell is forged steel pipe or seamless steel tube, 45#(ASTM1045). Normalizing hardness degree is 160BHN(HB180-200), percentage elongation 17%(δ>17%),tensile strength not less than 85000PSI(σb>610Mpa), Flexural Strength not less than 60000PSI(σb>450MPa)and shell with HP.

Sleeve material is high chrome centrifugal, which is chrome containing 26-28%, its thickness 0.25~0.35 inch (6.35 -8.89mm. its standard thickness is 7mm and special thickness reduced has 3 kinds, 4mm, 4.5mm & 5mm. Normally, it means standard thickness if there is no special explanation ), quenching hardness HRC59-67.

Its Chemical Composition Table is as following

Element	C	Cr	Si	Mn	Mo	S,P
Content	2.8%-3.1%	26%-28%	0.6%-0.9%	0.5%-1%	0.5%-0.8%	<0.05%

Some special chemical composition will be adopted to use on the sleeve according to the requirement of the client or special working conditions
High Frequency, Carburization & quenching Liner Material is 20#(ASTM1020)seamless steel tube or forged steel. The bore will
be carburized first and then High Frequency quenching . The thickness of
Carburized layer is more than 1.5mm and hardness of the bore is HRC58-62


Chrome-plated Liner
 Material is 45#(ASTM1045)or 40Cr(ASTM5140)seamless steel tube or
forged steel. Thickness of chrome plated is 0.15~0.2mm and hardness of
its bore is HRC58-60
