Chemical Industry Liquid Hydrocarbon Bottom Loading Arm
LIANYUNGANG LOADARM INDUSTRY CO., LTD.- Certification：ISO 9001:2000
- Power Source：Manual
- Operation Pressure：Pn4.0
- Applicable Medium：Mud, Water, Crude Oil, Gasiline, Diesel
- Structure：Seamless Pipe with Swivel Joint
- Material：Stainless Steel, Carbon Steel, PTFE Lined etc
Base Info
- Model NO.：AL1401
- Color：Light Gray or Customized
- Quality Guarantee：1 Year
- Seals：PTFE
- Application：Truck Tanker, Rail Car, Marine
- Accessories One：Quick Coupling, Vacuum Breaker
- Accessories Two：Break Away Coupling, Liquid Level Alarm
- Transport Package：Pallet or Wooden Case
- Specification：DN50, DN80, DN100, DN150
- Trademark：LOADARM
- Origin：China
- HS Code：8428909090
- Production Capacity：5000 Sets , Year
Description
AL1401 is a typical of loading arms. It can be easily operated and maintained.
Places Applied
Top open loading
Applications
Product oil, chemicals
Nominal Diameter
DN25~DN200 (1"~8")
Working Temperature
-196~250ºC
Working Pressure
PN1.0~PN4.0
Material of pipeline
Carbon steel, stainless steel, aluminum, low-temperature steel, PTFE lined etc.
Our loading arm on site:

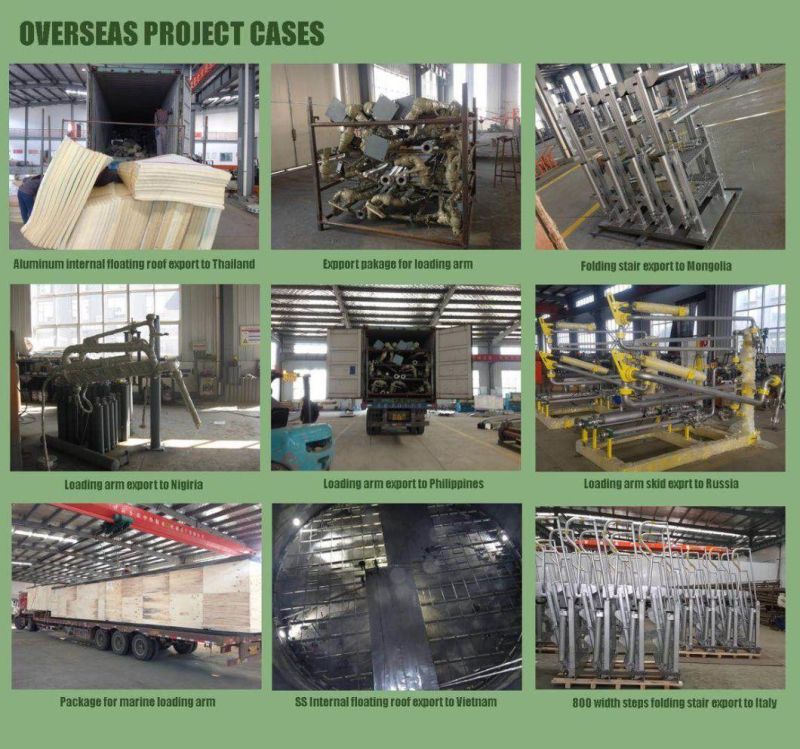

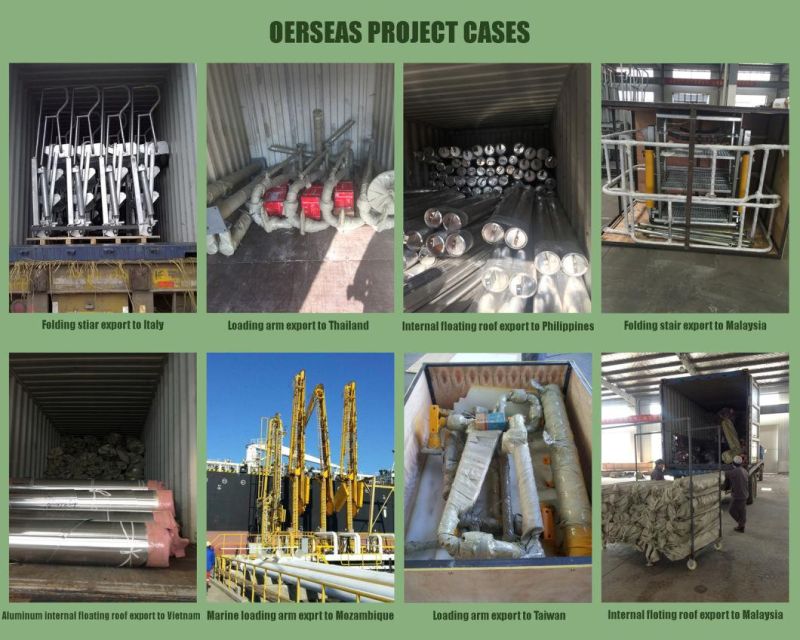

Overseas Project Cases:
