• Model NO.：13 3,8′′
• Samples：Available
• Application：Cementing
• Thread：API
• Transport Package：Wood Case
• Specification：13 3,8′′
• Trademark：ZS
• Origin：China, Henan
• HS Code：84314310
• Production Capacity：1000PCS,Month

Basic Info.

Model NO. 13 3/8′′ Samples Available Application Cementing Thread API Transport Package Wood Case Specification 13 3/8′′ Trademark ZS Origin China, Henan HS Code 84314310 Production Capacity 1000PCS/Month

Product Description

API 13 3/8'' float equipment stinger tools


 Features

1.Body is made of high quality alloy steel with high mechanical strenght.

2.Performance meet API RP 10F standards.

3.Either PDC or rock bit drillable.

4.Available in 5 1/2" to 20" sizes. Customized sizes are also available.

5.Grade---J55,K55,N80,P110

Function

Effectively channel the casing into the well, float equipment can not only relief the loading of drill tower during running in the hole with casing, but also prevent the liquid flow back after finish cementing.




Features

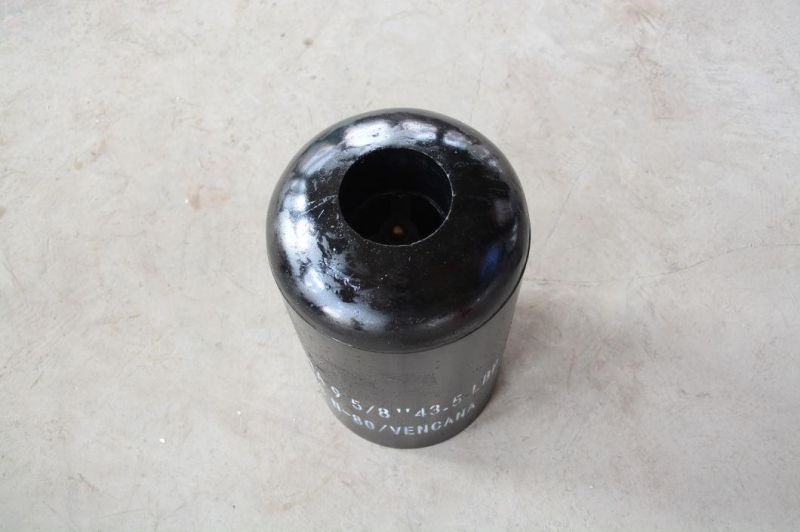

l Rounded nose profile float shoe helps guide the casing string.

l High strength design ensures excellent performance for flow endurance and back pressure holding.

l Auto fill up, saves considerable running-in time.

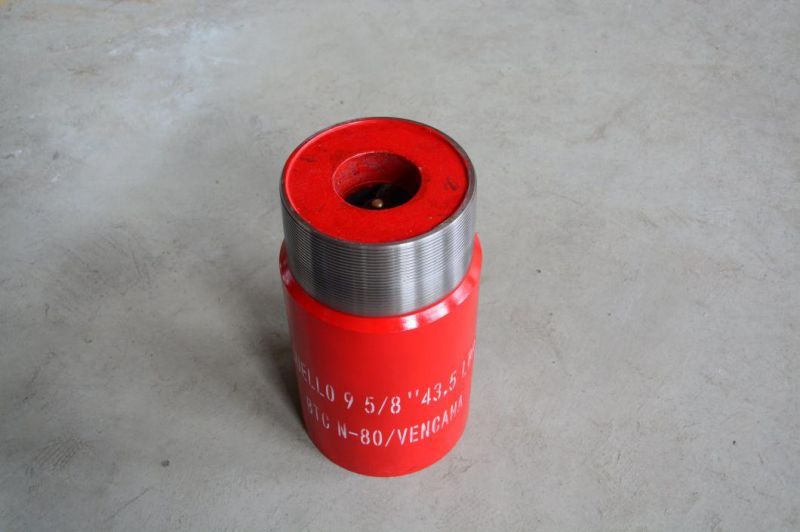

l Special non-rotating design float collar ensures corresponding

cementing plugs drilled out quicking.

l Single valve and double valve versions are available.

l Spring structure and ball structure valve are available.

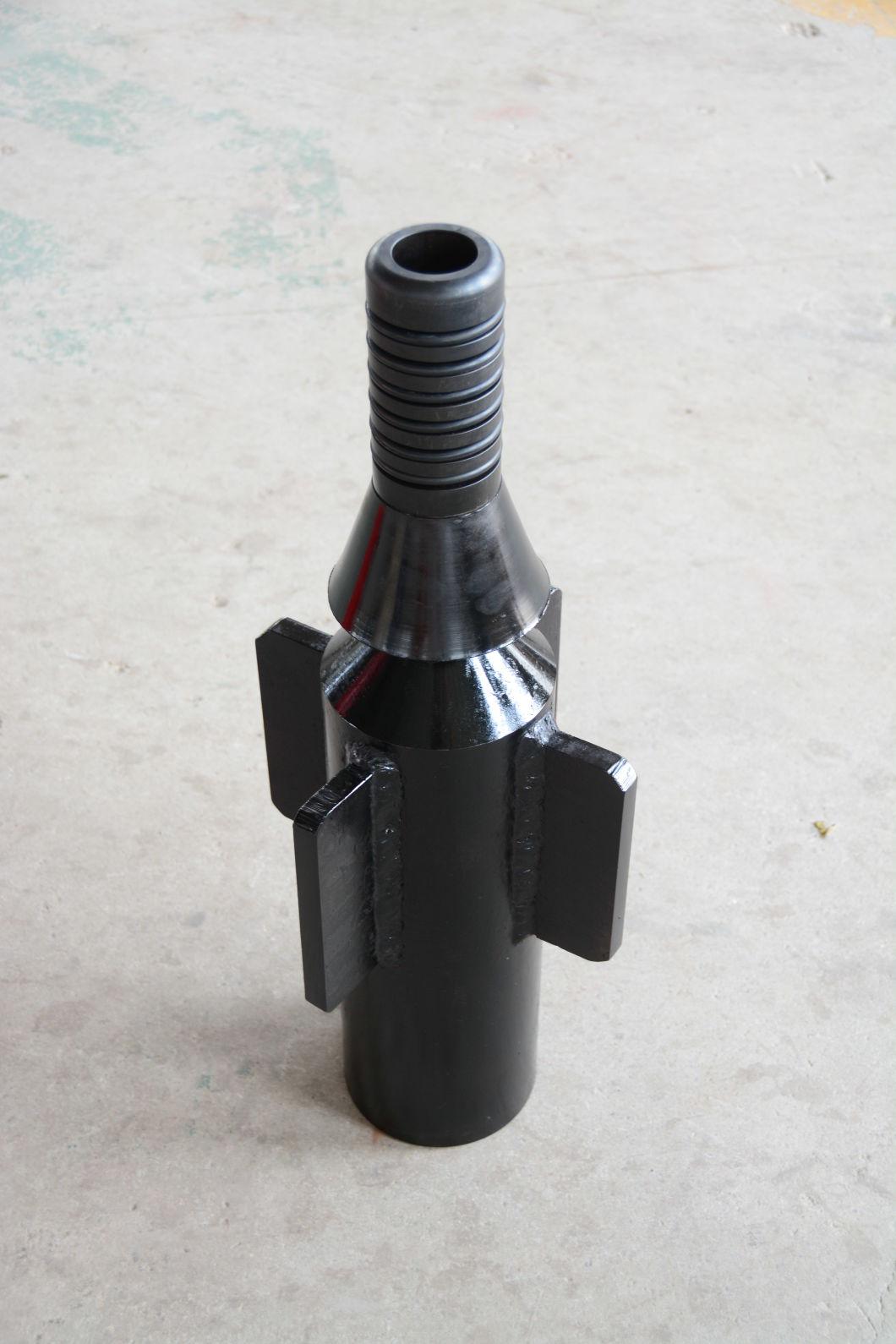

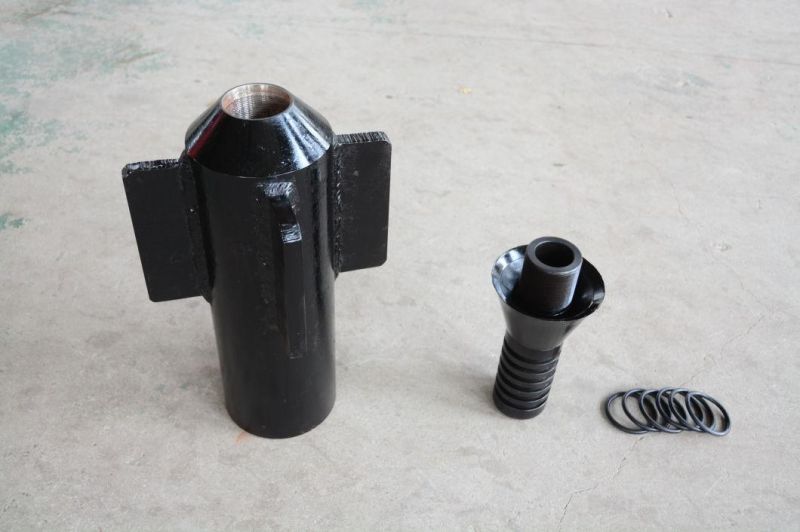

l Stab in type and normal type are available.





Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore (in)	Thread Type	lb(in2)
				Parameter

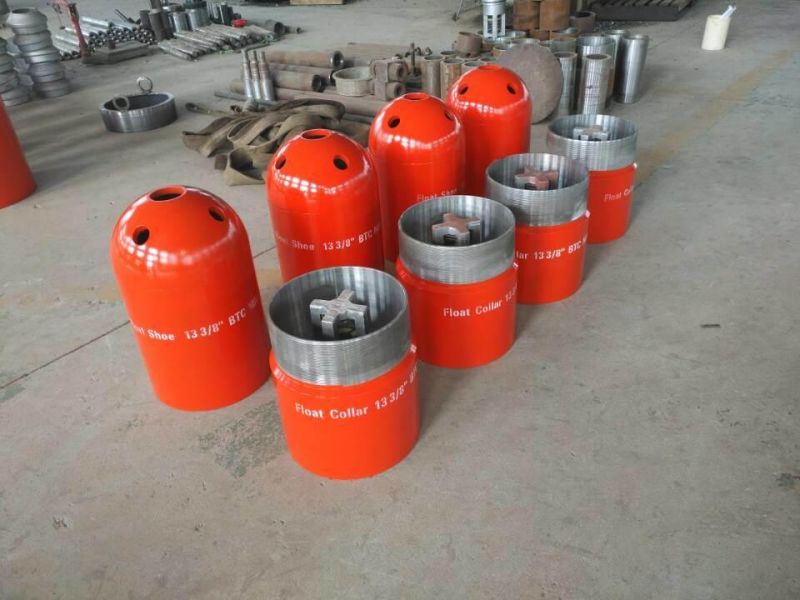

Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
