• Model NO.：LQRQ-113
• Type：Mud Tank
• Product Name：Frac Tank
• Medium：Frac,Mud
• Raw Material：Carbon Steel
• Layer：Single Layer
• Thickness：6mm to 10mm
• Anti-Corrostion：Special Material
• Logo：as Need
• Weight：as Specification
• Size：as Need
• Accessories：as Need
• Transport Package：Non
• Specification：20000L to 80000L
• Trademark：Luqiang
• Origin：China(Mainland)
• HS Code：73090000
• Production Capacity：500sets,Year

Basic Info.

Model NO. LQRQ-113 Type Mud Tank Product Name Frac Tank Medium Frac,Mud Raw Material Carbon Steel Layer Single Layer Thickness 6mm to 10mm Anti-Corrostion Special Material Logo as Need Weight as Specification Size as Need Accessories as Need Transport Package Non Specification 20000L to 80000L Trademark Luqiang Origin China(Mainland) HS Code 73090000 Production Capacity 500sets/Year

Product Description

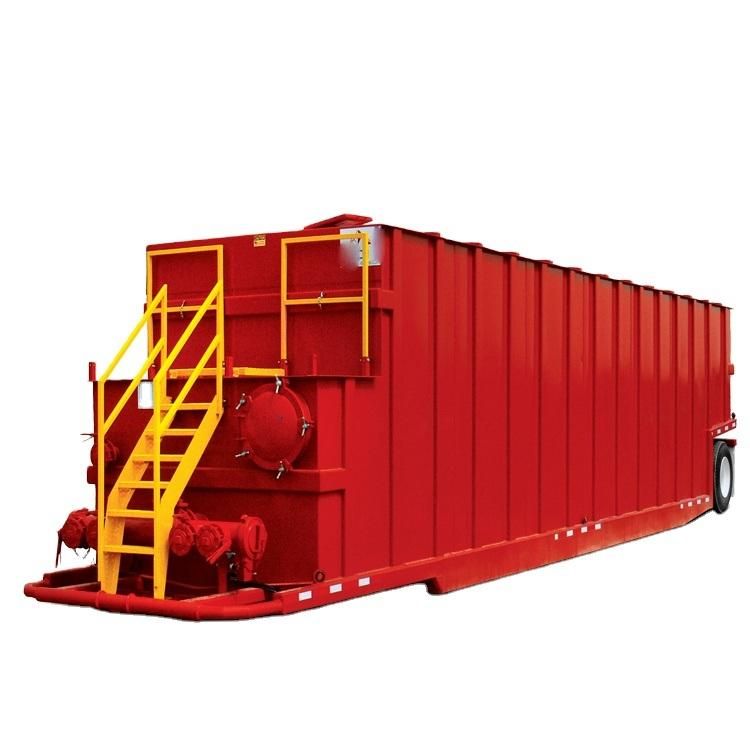

                                        frac tank



ypically used for fracing wells in the oil and gas industry, a frac tank may also be used to store any liquids like run-off water, diesel fuel, glycol, oils, waste products, or for use when mining mud or drilling mud.



• frac tanks for coal seam gas fracking or fracking natural gas
• tanks for fracking oil
• tanks for fracking mud, mining or drilling mud
• frac water treatment tanks

Other features include:



• Skid mounted with bumpers for easy movement on site.
• Corner castings at the ISO position for easy handling.
• Intermodal format allows cost effective mobilisation to any remote site.
• V bottom internal format for easy drainage.
• Manway access side access for easy access and cleaning.
• Hatches in the roof.
• Full blanked manifold on the rear to allow multiple units to be connected for larger projects.
• Central valve on from and rear to allow operation from either end.
• Unit designed for the static storage of liquids on site.
• Optional Ground operated air relief valve.
• Supplied with removable robust frame bolted on the rear end to protect manifolds and to minimise damage any transport damage

Certifications:
Our company has A1,A2 design license and manufacturing license of pressure vessel and issued by  the State General Administration,and we have passed ISO 9001and America UL  142,1746 test and  get the regarding certificate.Our frac tanks had exported Australia and gained great reputations.

Cooperation partner

  We established good relationship with Shell company Petro China,Sinopec,CNOOC,World Food  Programmer and petroleum companies in Asia ,middle East,Australia and Africa market. Frac tanks are popular all around the tanks.
