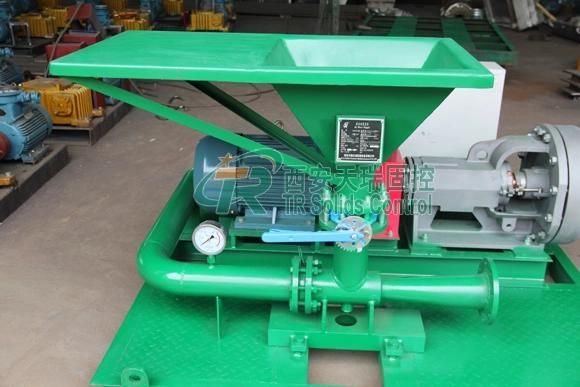

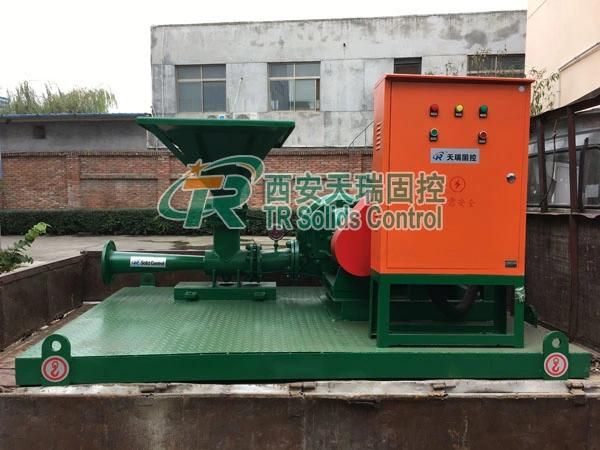

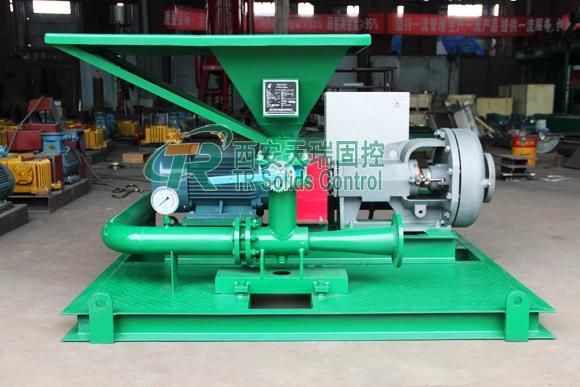

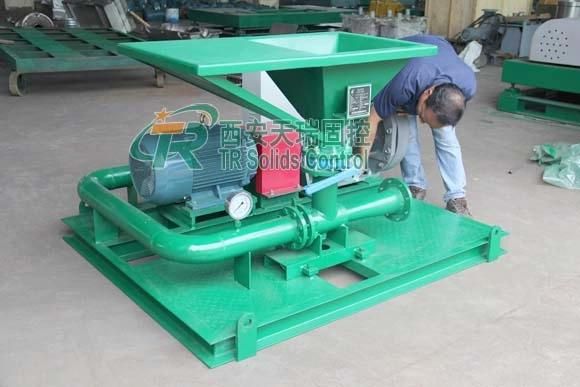

500*500mm Hopper Dimension Mud Mixer Machine Solids Control Use

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Stainless Steel
  • Type：Mixed Funnel
  • Capacity：60m3,H

Base Info

  • Model NO.：TRSLH100
  • Matching Pump：Trsb4*3-11j
  • Motor Power：11kw
  • Work Pressure：0.25 to 0.4MPa
  • Inlet Diameter：100mm
  • Nozzle Diameter：25mm
  • Hopper Dimension：500*500mm
  • Burden Speed：<40kg,Min
  • Weight：1100kg
  • Dimension：2000*1650*1100mm
  • Transport Package：Iron or Wooden Case
  • Specification：2000*1650*1100mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets Per Month

Description

ModelTRSLH150-50TRSLH150-40TRSLH150-30TRSLH100Matching PumpTRSB8×6-13J(55kw)TRSB6×5-13J(45kw)TRSB5×4-14J(37kw)TRSB4X3-11J(15kw)Capacity240m3/h180m3/h120m3/h60m3/hWork Pressure0.25~0.40Mpa0.25~0.40Mpa0.25~0.40Mpa0.25~0.40MpaInlet Diameter150mm150mm150mm100mmNozzle Diameter50mm40mm30mm30mmHopper Dimension750x750mm750x750mm600x600mm600x600mmBurden Speed≤100kg/min≤80kg/min≤60kg/min≤40kg/minWeight1600kg1450kg1300kg1100kgDimension2200*1700*1200mm2200*1700*1200mm2000*1650*1100mm2000*1650*1100mm

500*500mm Hopper Dimension Mud Mixer Machine Solids Control Use500*500mm Hopper Dimension Mud Mixer Machine Solids Control Use500*500mm Hopper Dimension Mud Mixer Machine Solids Control Use500*500mm Hopper Dimension Mud Mixer Machine Solids Control Use






Competitive Advantages



1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet

Customer's satisfaction is the highest pursuit of TR Solids Control.
