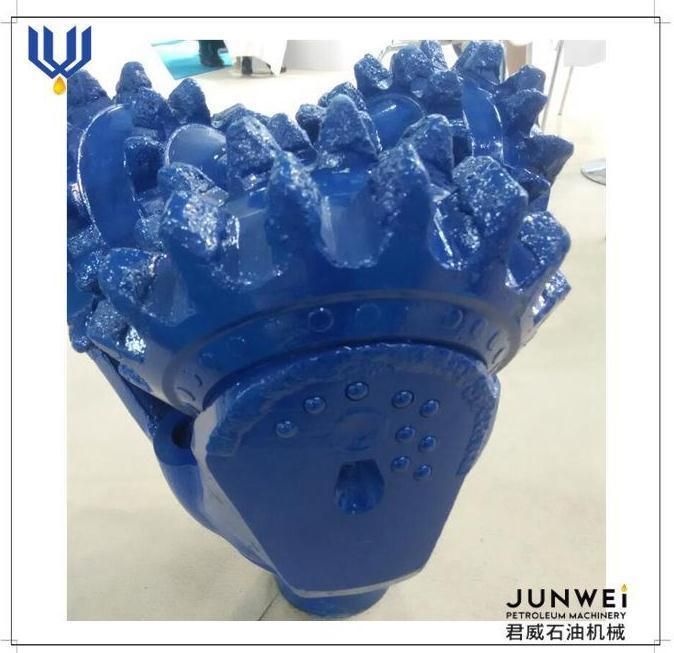

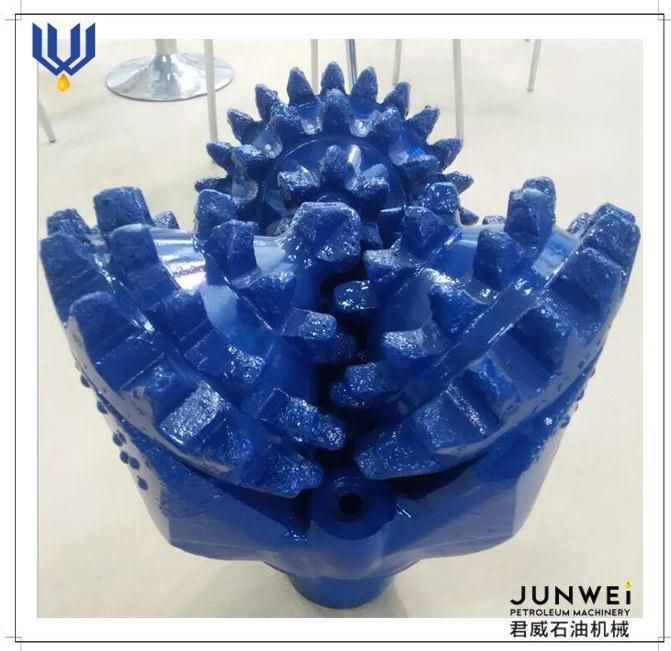

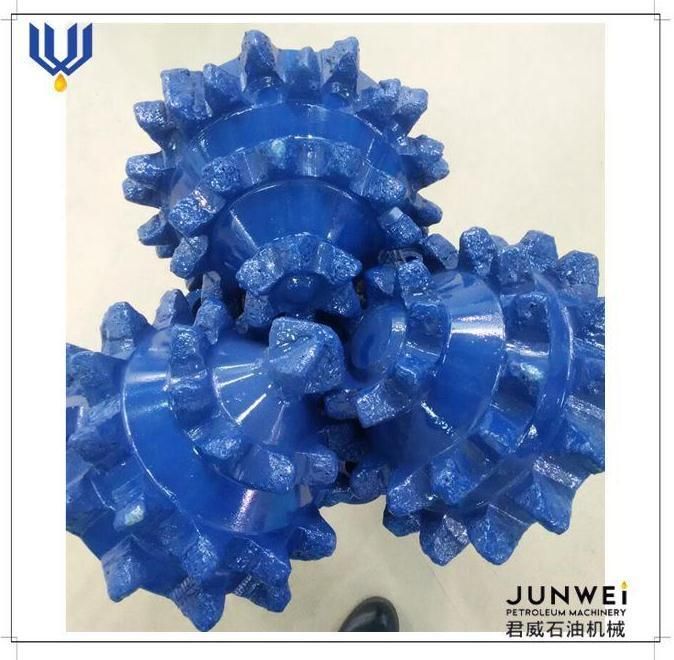

Model | Steel Tooth Bits iadc115 |
IADC CODE | 114 117 126 137 214 215 217 317 |
Available sizes: | 3 1/2"~ 26" larger sizes can be custom as your requirement |
API regular pin(inch) | 2 3/8;2 7/8;3 1/2;4 1/2;6 5/8;7 5/8 |
Recommended make up torque(KN.M) | 4.1-4.7/6.1-7.5/9.5-12.2/16.3-12.7/38-43.4/46.1-54.2 |
Advantage | competitive price and best quality |
Bearing type | sealed bearing and non-sealed bearing RM/RMT(metal sealed roller bearing) RR/RRT (rubber sealed roller bearing JR/JRT (rubber sealed journal bearing) FR(rubber sealed floating bearing) |
Formation | soft,medium soft,hard,medium hard,very hard formation |
IADC | WOB | RPM | Applicable Formations |
(KN/MM) | (r/min) |
(Bit Dia) |
116 117 | 0.35~0.8 | 150~80 | Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk etc. |
|
126 127 | 0.35~0.9 | 150~70 | Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,softshale.soft limestone,ect. |
|
136 137 | 0.35~1.0 | 120~60 | Soft to mesium soft formations with low compressive strength and high drillability.such as medium soft shale,hard gypsum,medium soft limestone.medium soft sandstone soft formation with harder nterbeds,ect. |
|
216 217 | 0.4~1.0 | 100~60 | Medium hard formations with high compressive strength,such as medium soft shale,hard gypsum,medium soft limestone,medium soft sandstone,soft formation with harder interbeds ect. |
|
246 247 | 0.4~1.0 | 80~50 | Medium hard formations with high compressive strength,such as abrasive shale.limestone,sandstone,dolomite,hard gypsum,marble,ect. |
|
417 437 | 0.35~0.9 | 150~70 | Very soft formations with low compressive strength and high drillability,such as clay,mudston,chalk,gypsum,salt,soft shale,soft limestone,etc. |
447 |
517 527 | 0.35~1.0 | 140~60 | Soft formations with low compressive strength and high drillability,such as mudstore,gypsum,salt,soft shale.soft limestone,ect. |
|
537 547 | 0.45~1.0 | 120~50 | Soft to medium formations with low compressive strength,such as medium soft shale,medium soft limestone,medium soft sandstone,medium formation with harder and abrasiver interbeds,ect. |
|
617 627 | 0.45~1.1 | 90~50 | Medium hard formations with high compressive strength,such as hard shale,limestone,sandstone,dolomite,ect. |
|
637 | 0.5~1.2 | 80~40 | Hard formations with high compressive strength,such as sandstone,limestone,dolomite,hard gypsum,marble,ect. |
