• Model NO.：cast steel centralizer
• OEM：Avaliable
• Sample：Avaliable
• Vane：Stright Vane, Spiral Vane,
• Centralizers Type：Cast Steel Rigid Centralizers
• Transport Package：Wooden Case
• Specification：4-1,2inch to 20inch, custom size avaliable
• Trademark：ZS
• Origin：Henan
• Production Capacity：20000 Piece,Pieces Per Month

Basic Info.

Model NO. cast steel centralizer OEM Avaliable Sample Avaliable Vane Stright Vane/ Spiral Vane/ Centralizers Type Cast Steel Rigid Centralizers Transport Package Wooden Case Specification 4-1/2inch to 20inch, custom size avaliable Trademark ZS Origin Henan Production Capacity 20000 Piece/Pieces Per Month

Product Description

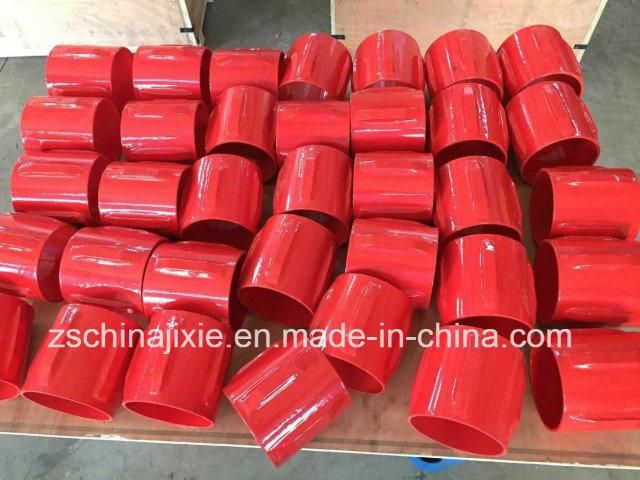

Straight Blade Cast Steel Solid Body Centralizer for Oilwell Cementing
Description of solid rigid centralizer
Rigid centralizers are with high supporting force and low starting force , thus enabling the casing smoothly down and at the same time stay at a high level.
Sizes ranging from 4-1/2" to 20", custom size are available
Spiral vane: reducing drag force.

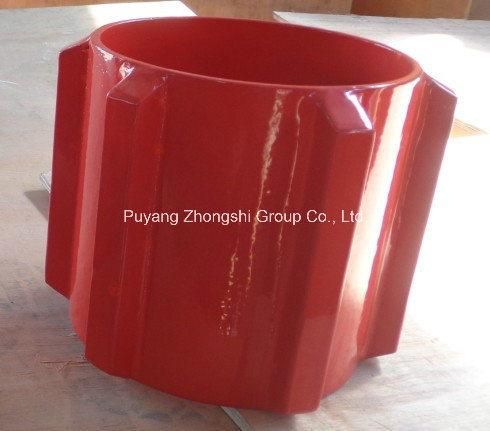

Feature of cast steel straight vane centralizer
1. Application:in deviated and horizontal wells, liner overlaps, and shoe joints.
2. Suitable for either cased or open hole.
3. Made of high tensile, solid, cast steel, for shock, impact, and corrosion resistance.
4. Vane ends are beveled 30 degrees relative to casing centralizer to provide excellent lead into restrictions, and reduced drag when running into hole.
5. Wide vanes distribute load from the casing string into the well bore without gouging.
6. The design of the vanes keeps running forces at a minimum.

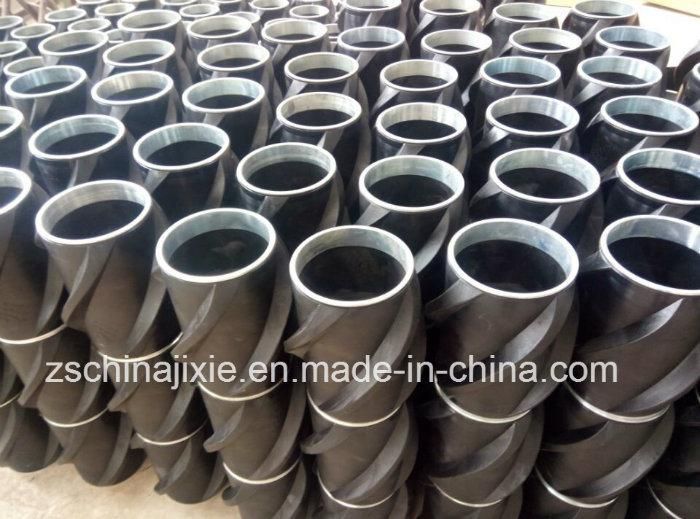

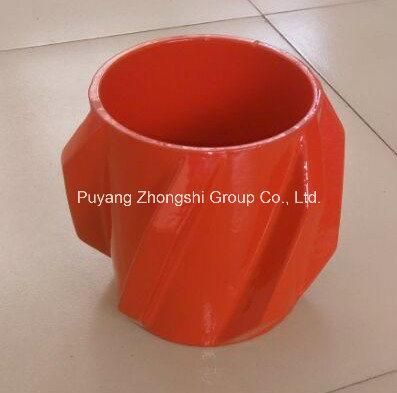

Feature of cast steel Spiral vane Solid Rigid Centralizers
The 360 degrees overlapping solid vane provides maximum wall contact and fluid swirl. Thus reduced flow area between the spiral blade and produces a vortex motion of the fluids for more fluid velocity with direction.


Technical parameter of steel rigid centralizer

Specification	In-Dia(mm)	Wall Thickness (mm)	Height(mm)	Total height(mm)	Largest Dia(mm)	Spring Number
5-1/2"*8-1/2"	142-148	3-5	55	650	225	5
7"*9-5/8"	181-186	3-5	55	650	255	6
7"*8-1/2"	181-186	3-5	55	650	235	6
8-5/8"*12-1/4"	223-228	3-5	55	650	330	8
9-5/8"*12-1/4"	250-255	3-5	55	650	330	8
10-3/4"*12-1/4"	274-276	3-5	55	650	330	9
13-3/8"*17-1/2"	342-347	3-5	55	650	450	11
18-5/8"*24	476	3-5	55	600	610	12
20"*26	510	3-5	55	600	660	12
