• Model NO.：7′′*8 1,2′′ & 9 5,8′′*12 1,4′′
• Samples：Available
• Blades：5PCS
• Length：240mm
• Markings：Available
• Drawing：Available
• ODM：Available
• Sizes：4 1,2′′-20′′
• OEM：Available
• Transport Package：Wood Cases
• Specification：7′′*8 1,2′′ & 9 5,8′′*12 1,4′′
• Trademark：zhongshi
• Origin：China
• HS Code：843143100
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. 7′′*8 1/2′′ & 9 5/8′′*12 1/4′′ Samples Available Blades 5PCS Length 240mm Markings Available Drawing Available ODM Available Sizes 4 1/2′′-20′′ OEM Available Transport Package Wood Cases Specification 7′′*8 1/2′′ & 9 5/8′′*12 1/4′′ Trademark zhongshi Origin China HS Code 843143100 Production Capacity 3000PCS/Month

Product Description

                                     API Standard 5 1/2'' Casing Spiral Composite Rigid Centralizer

Casing centralizer is one of the necessary conventional casing accessories, upon well operations completion, the rational use of casing centralizer can play the role of:

     Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;

     Making casing centralizer centered within the well;

     Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;

     Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.



The reset force of double bow type centralizer is higher than that of single bow centralizer, centering centering performance is better than that of single bow type.

Rigid centralizers can be installed on the casing with stop collars or with integral set screws. Installations that allow casing rotation and reciprocation are preferred because of improved displacement efficiency. Most slip-on rigid centralizers must be installed between stop collars and are freely floating there between.

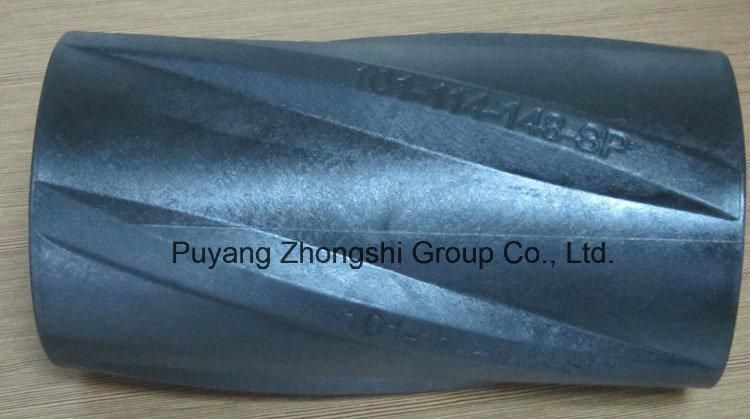

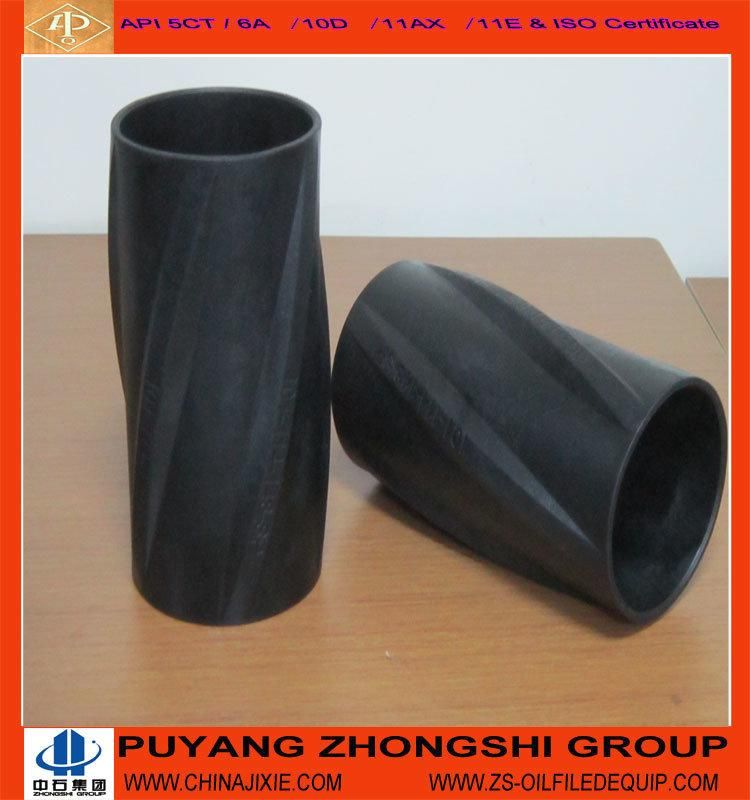

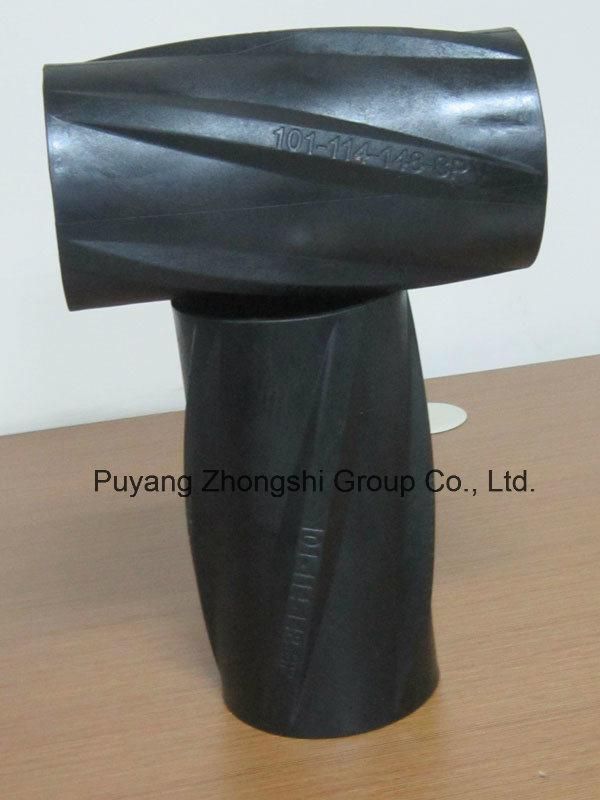

The composite centralizer is used during running and cementing operations to centralize casing.

Made of advanced composite, the one-piece centralizer has a low coefficient of friction, is heat resistant, and is highly durable.
The composite material performs reliably even in extreme wellbore conditions.

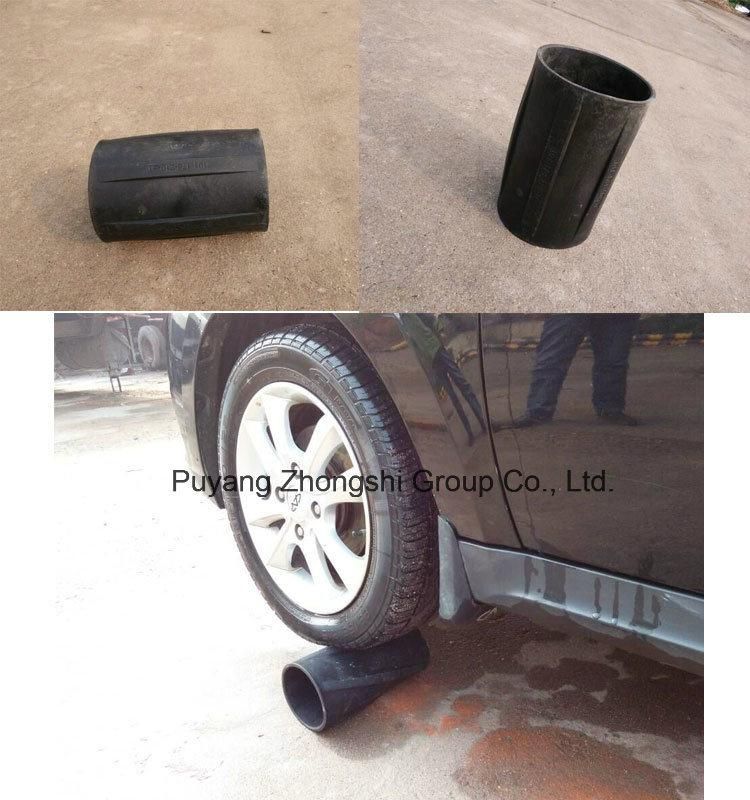

Unlike many plastic centralizers, this centralizer withstands high-impact loading and is highly wear resistant.
The composite centralizer has a smooth, tapered construction to easily pass obstructions in the wellbore, which makes it well suited for horizontal applications.
The centralizer enables casing strings to reach total depth efficiently, provides optimal standoff for mud displacement, and greatly enhances cementing operations.

Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC. Our group have 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.

We have the certificates of API 5CT, API 10D, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.








Our  products mainly include:



1. Pumping Unit                                 2. Tubing Pump/Sucker Rod Pump and Accessories

3. Float Collar & Float Shoe              4. Casing Centralizer
5. Cementing Plug                             6. Cementing Head
7. Stage Collar                                   8. Casing/Tubing and Coupling
9. Drill Pipe                                        10. Sucker Rod
11. Air Blaster                                    12. Sucker Rod Guide

Characteristics:
A) Designed for High Restoring Force and Low Starting & Running Force
B) End collars are designed with self-locking action, which are easy to assemble.
C) Undergo special coating process to prevent from rust
D) Can be shipped in half assembled condition for economy in shipping and storage costs.
E) Specification: 4"---20". Any special sizes or combination can available on request.

specifications for reference:


Model(in)	Hooping In-Dia.(mm)	Hooping  thickness  (mm)	Hooping height(mm)	Total Length(mm)	Max. Out-Dia.(mm)	Spring  Pieces
5-1/2*8-1/2	142-148	3-5	90-120	650±50	225±5	5
7*9-5/8	181-186	3-5	90-120	650±50	255±5	6
7*8-1/2	181-186	3-5	90-120	650±50	235±5	6
8-5/8*12-1/4	223-228	3-5	90-120	650±50	330±5	8
9-5/8*12-1/4	250-255	3-5	90-120	650±50	330±5	8
10-3/4*12-1/4	274-276	3-5	90-120	650±50	330±5	9
13-3/8*17-1/2	342-347	3-5	90-120	650±50	450±5	11
18-5/8*24	476±1	3-5	90-120	600±50	610±5	12
20*26	510±1	3-5	90-120	600±50	660±5	12
