Oilfield Slickline Wireline Coiled Tubing Bop Blowout Preventer Wireline Valve
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：Forging
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：Boban
- Connection：Acme or Bowen
- Control Method：Single, Hydraulic
- RAM：Single RAM or Hydraulic RAM
- Services：Standard Services, H2s Services
- Working Pressure：5K 10K 15K Psi
- Transport Package：Wooden Case
- Specification：3"~5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：10 PCS Per Month
Description
Basic Info.
Model NO. Boban Connection Acme or Bowen Control Method Single, Hydraulic RAM Single RAM or Hydraulic RAM Services Standard Services, H2s Services Working Pressure 5K 10K 15K Psi Transport Package Wooden Case Specification 3"~5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 10 PCS Per MonthProduct Description
Oilfiled Slickline Wireline Coiled Tubing BOP Blowout Preventer Wireline ValveI. Introduction

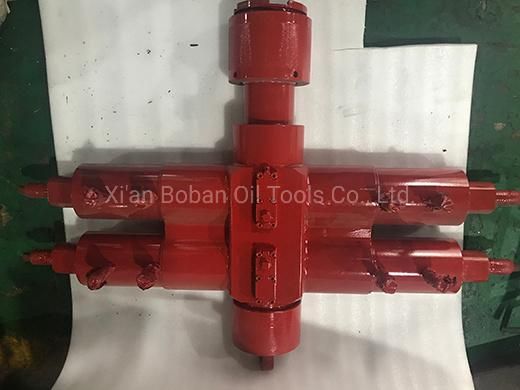

Wireline Valve, also known as Blow Out Preventer (BOP), is commonly found located between Lubricator and Wellhead. The design allows pressure to be contained within the well once the bodies are closed. It allows the equalisation of lubricator and well pressure when the operation is to be resumed.

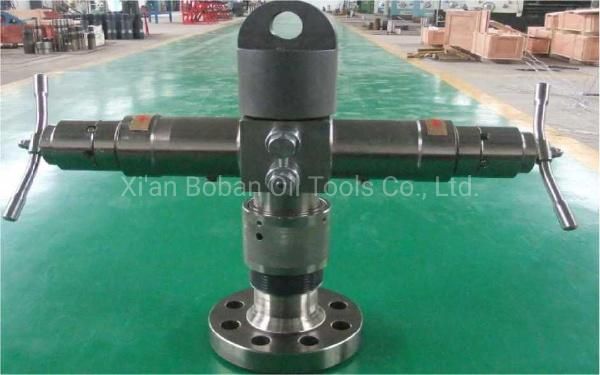

Single manual operated Wireline Valve features a pair of Ram assemblies and stem connected handle that can be manipulated by manually rotating the handles to open or close the rams. This tool is designed only suitable for slickline operation.
II. General Technical Parameters
| Work Pressure | ID. | Wireline / Slickline OD. | Control Method | Remarks |
| 5K Psi | 2.5" | 0.125" | Manual/ Hydraulic | SingleRam |
| 5K Psi | 2.5" | 7/32" | Hydraulic | Double Ram |
| 5K Psi | 3" | 0.125" | Manual/ Hydraulic | Single Ram |
| 5K Psi | 3" | 7/32" | Hydraulic | Double Ram |
| 5K Psi | 4" | 0.125" | Manual/ Hydraulic | Single Ram |
| 5K Psi | 4" | 7/32" | Hydraulic | Double Ram |
| 10K Psi | 2.5" | 0.125" | Hydraulic | Single Ram |
| 10K Psi | 2.5" | 7/32" | Hydraulic | Double Ram |
| 10K Psi | 3" | 0.125" | Hydraulic | Single Ram |
| 10K Psi | 3" | 7/32" | Hydraulic | Double Ram |
| 10K Psi | 4" | 0.125" | Hydraulic | Single Ram |
| 10K Psi | 4" | 7/32" | Hydraulic | Double Ram |
| 15K Psi | 2.5" | 0.125" | Hydraulic | Single Ram |
| 15K Psi | 2.5" | 7/32" | Hydraulic | Double Ram |
| 15K Psi | 3" | 0.125" | Hydraulic | Single Ram |
| 15K Psi | 3" | 7/32" | Hydraulic | Double Ram |
| 15K Psi | 4" | 0.125" | Hydraulic | Single Ram |
| 15K Psi | 4" | 7/32" | Hydraulic | Double Ram |
Note. Other sizes are available upon request. Available for both standard services and H2S services.
