• Model NO.：4 1,2"-20"
• Samples：Available
• Height：200mm
• Drawings：Available
• Markings：Available
• ODM：Acceptable
• OEM：Acceptable
• Blades：6PCS
• Size：4 1,2′′-20′′
• Transport Package：Wood Cases
• Specification：4 1, 2"-20"
• Trademark：zhongshi
• Origin：China, Henan
• HS Code：843143100
• Production Capacity：5000PCS,Month

Model(in)Hooping In-Dia.(mm)
Hooping
thickness
 (mm)
Hooping height(mm)Total Length(mm)Max. Out-Dia.(mm)
Spring
Pieces
5-1/2*8-1/2142-1483-590-120650±50225±557*9-5/8181-1863-590-120650±50255±567*8-1/2181-1863-590-120650±50235±568-5/8*12-1/4223-2283-590-120650±50330±589-5/8*12-1/4250-2553-590-120650±50330±5810-3/4*12-1/4274-2763-590-120650±50330±5913-3/8*17-1/2342-3473-590-120650±50450±51118-5/8*24476±13-590-120600±50610±51220*26510±13-590-120600±50660±512
Our composite centralizers provide the following benefits:
Reduce total well construction costs - eliminate the need for expensive casing couplings
Enables casing or screen deployment in longer reach wells - industry leading low friction factors reduce torque and drag, enabling the user to reach total depth
Zero corrosion - totally non-metallic material removes the contamination risk to carbon or expensive hi-chrome content steel tubulars and completion equipment
Low wear and material loss - low friction factors and advanced material formulations result in low wear
High impact and side load resistance -  longer lasting
Light weight - the size to weight ratio is significantly lower than metallic centralizers which reduces freight and handling costs
Specific OD's can be accommodated - composite material can be machined down to meet requirements.
Features

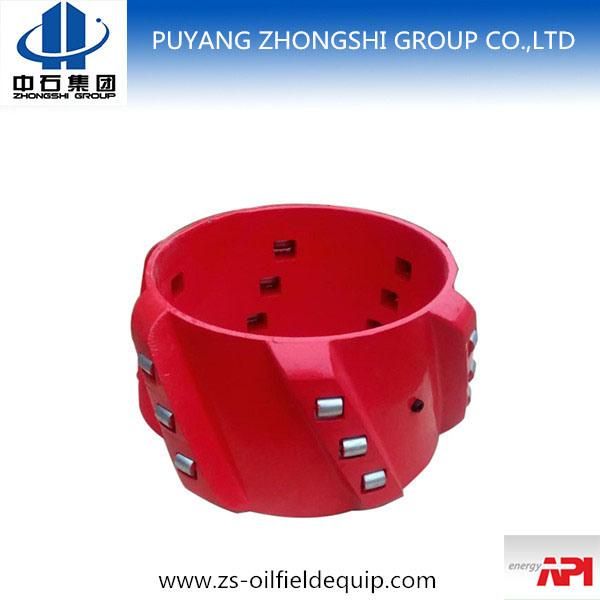

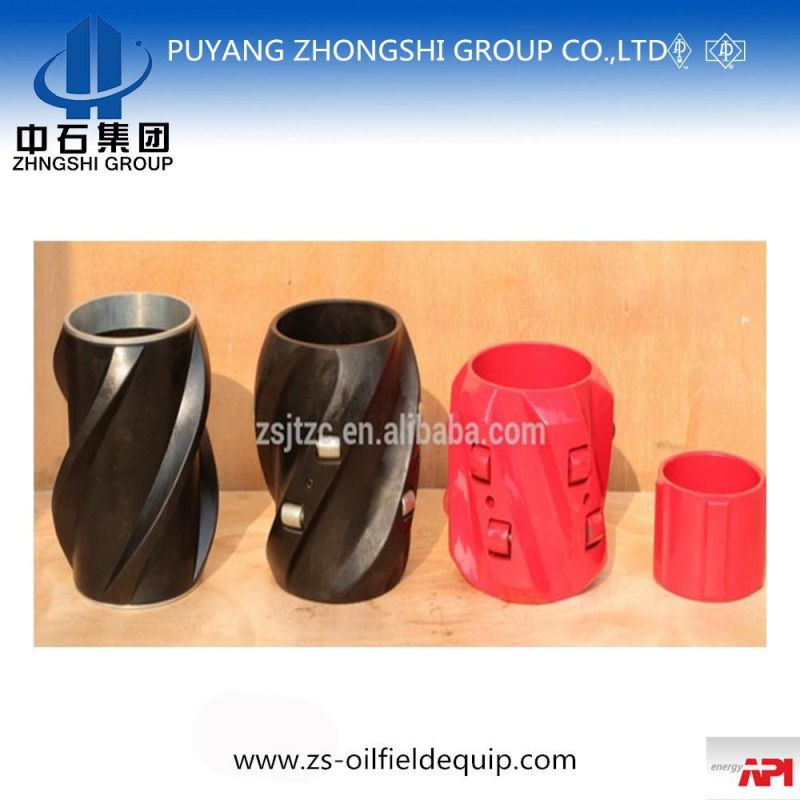

Spiral blade configuration - provides for optimal stand-off and assists turbulent flow during cementing operations
Zero porosity construction
Suit casing ranges from 4.5 to 10.75 inches
Manufactured to strict ISO 9001-2000 quality standards
Tested to API 10TR5
