• Model NO.：5 1,2" & 7" & 9 5,8"
• Drawing：Available
• Size：5 1,2" & 7" & 9 5,8" & 13 3,8"
• ODM：Available
• OEM：Available
• Color：Red and Black
• Marking：Available
• Package：Wood Cases
• Delivery：Base on Order Quantity
• Insert：Phenolic Core
• Transport Package：Wood Cases
• Specification：4 1,2"-20"
• Trademark：zhongshi
• Origin：Henan, China
• HS Code：843143100
• Production Capacity：10000PCS,Month

Casing size(in)casing weight rangeWiper Fin O.Dmminmmin4 1/2"14.14-17.269.50-11.601104.3315"17.11-35.8611.50-24.101224.8035 1/2"20.83-39.8814.00-26.801355.3157"25.30-56.5517.00-38.001706.6937 5/8"35.72-63.6924.00-42.001857.2839 5/8"53.57-79.6236.00-53.502359.25210 3/4"60.27-97.7740.50-65.7026010.23613 3/8"71.43-107.1548.00-72.0033313.11020"139.89-197.9394.00-133.0049819.606

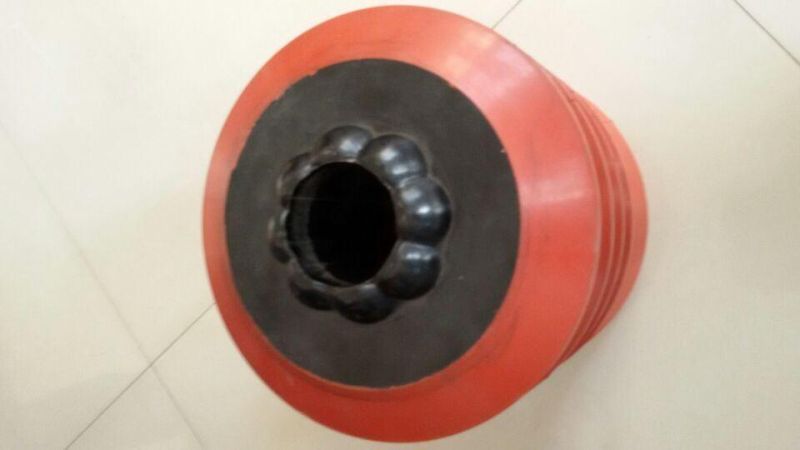

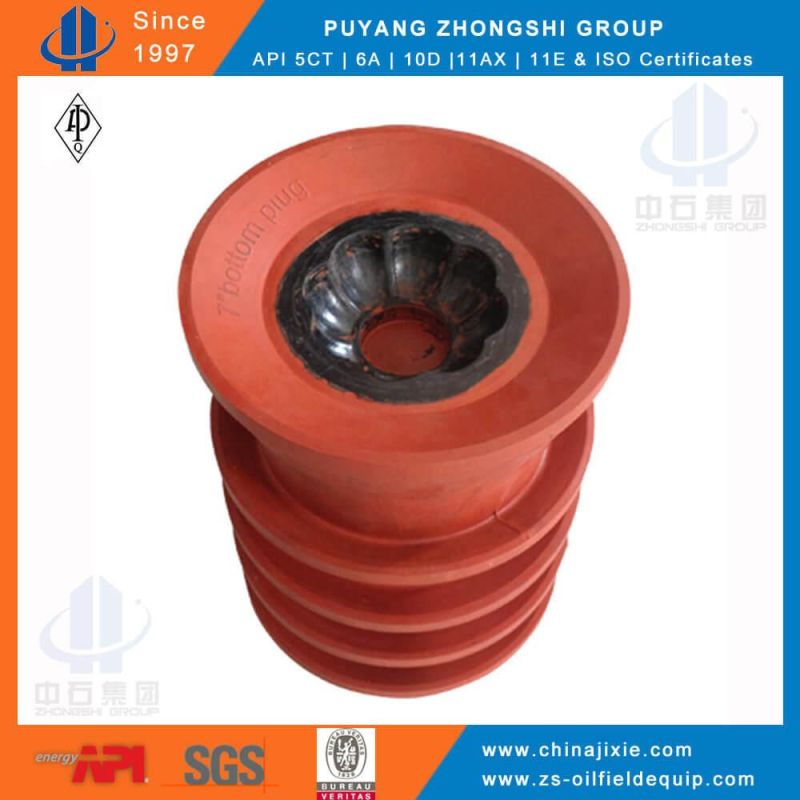

This unique compressed locking design eliminates the need for expensive special wiper plug/locking float collars. Any float collar will serve as a landing base for these Quick Drill™ wiper plugs.

Torque tests of the compressed 7" Quick Drill™ wiper plug at room temperature exceeded 2000 ft lbs of torque resistance. With time and wellbore heat the bonding to the inner wall of the casing becomes greater. Quick Drill™ wiper plugs saves rig time as actual recorded drilling time for a set of 7-5/8" plugs was less than 10 minutes.  easy drill high strength cement aggregate in their patented Float Equipment, assures a good combination of rig time savings plus an excellent opportunity at no secondary cement squeezing.
