Composition Bridge Plug for Completion Tools
Dongying Zhaoxin Industry and Trade Co, Ltd.- After-sales Service：After Sale Service
- Warranty：6 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：50MPa
- Material：Alloy
Base Info
- Model NO.：5-1,2"
- Transport Package：Wooden Case
- Specification：5-1,2" 7"
- Trademark：ZX
- Origin：China
- HS Code：8431431000
- Production Capacity：100 PCS Per Month
Description
4. Structure

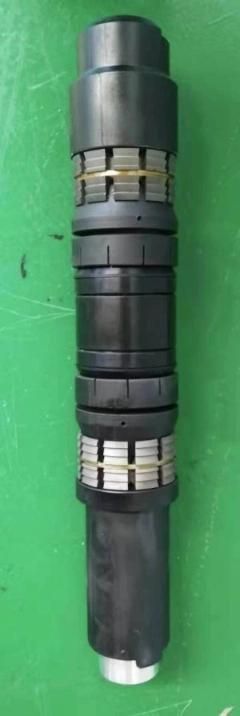

Composition Mandrel , shear ring , rubber sleeve , composition slip ,. Cone and protection cup , pin and bottom coupling
It uses the relative force generated by the setting tool (cable or tubing to transmit hydraulic pressure) to act on the bottom coupling. The force shear to open the pin, and compresses the rubber sleeve through the cone. Within a certain range of tension, the bridge plug Slips rupture and are embedded on the inner wall of the casing, and the rubber sleeve expands and seals to complete the setting. When the tension continues to rise to a certain value, the shear ring is released to break, and the setting tool is separated from the bridge plug. This process is completed; the setting tool is taken out and the operation is carried out. In the later stage, the bridge plug can be quickly drilled out according to the needs of construction and production
