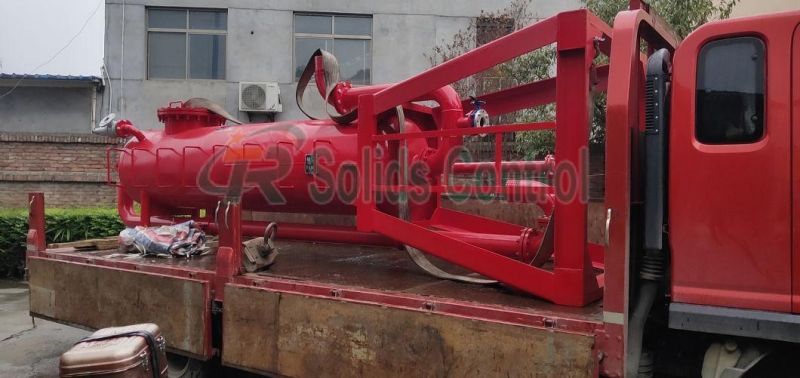

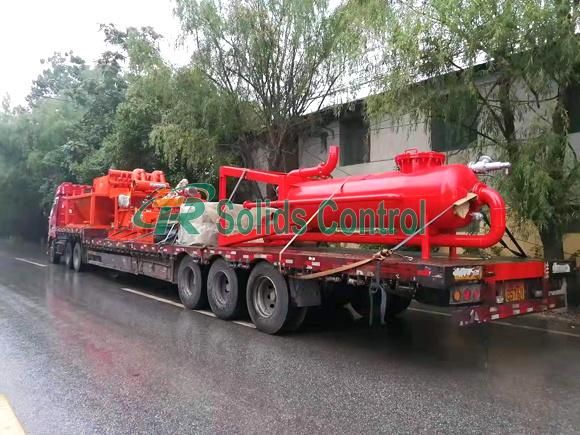

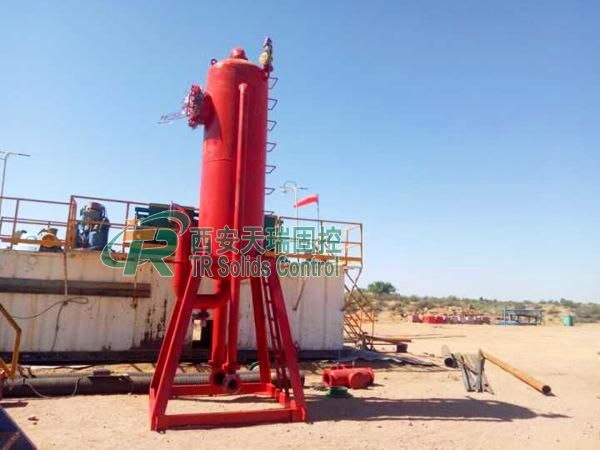

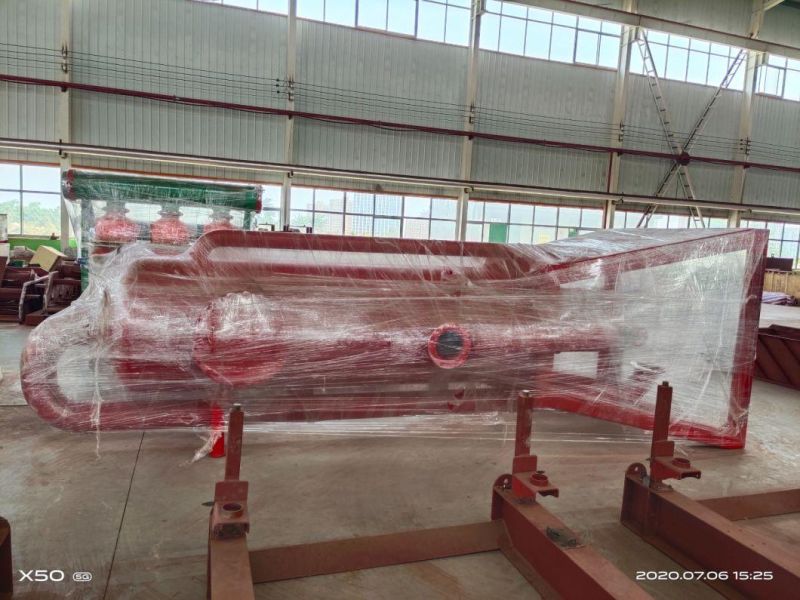

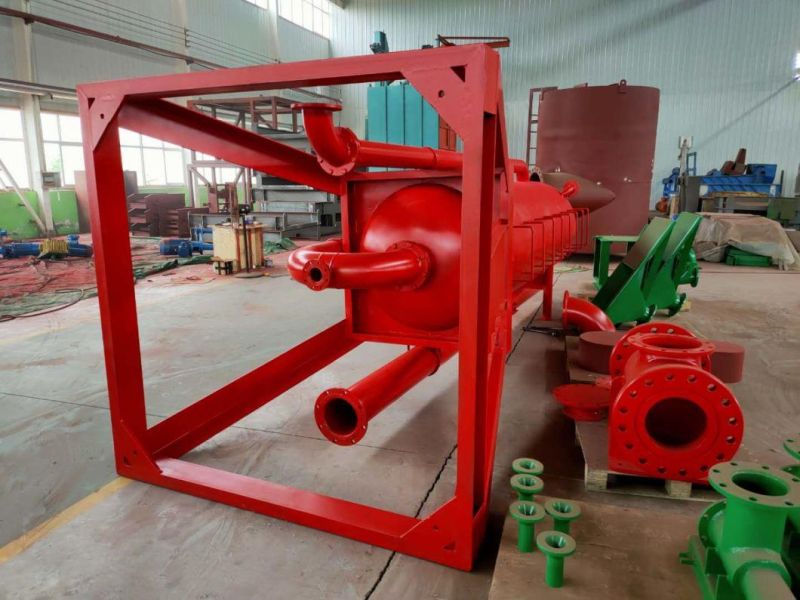

Poor Boy Mud Gas Separator for Solids Control System

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Certification：ISO 9001:2008
  • Power Source：Electric
  • Operation Pressure：Atmospheric Pressure
  • Material：Carbon Steel
  • Type：Liquid Gas Separator
  • Capacity：240m3,H

Base Info

  • Model NO.：TRZYQ1000
  • Main Body Diameter：1000mm
  • Inlet Pipe：Dn125mm
  • Output Pipe：Dn200mm
  • Gas Discharge Pipe：Dn200mm
  • Weight：2235kg
  • Transport Package：Pallet or Wooden Case
  • Specification：2000*2000*5860mm
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：30 Sets,Month

Description

ModelTRZYQ800TRZYQ1000TRZYQ1200Capacity180 m³/h240 m³/h320 m³/hMain Body Diameter800mm1000mm1200mmInlet PipeDN100mmDN125mmDN125mmOutput PipeDN150mmDN200mmDN250mmGas Discharge PipeDN200mmDN200mmDN200mmWeight1750kg2235kg2600kgDimension1900*1900*5700mm2000*2000*5860mm2200*2200*6634mm
Poor Boy Mud Gas Separator for Solids Control System

 Poor Boy Mud Gas Separator for Solids Control SystemPoor Boy Mud Gas Separator for Solids Control SystemPoor Boy Mud Gas Separator for Solids Control System
Poor Boy Mud Gas Separator for Solids Control System


Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.


Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
