Oilfield Downhole Tools Wireline Slickline Pear Drop Rope Socket
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：BBRS
- for Wire Size：0.108", 0.125"
- Connection：Un, Qls, Hdqrj
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：100 PCS Per Month
Description
Basic Info.
Model NO. BBRS for Wire Size 0.108", 0.125" Connection Un, Qls, Hdqrj Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 100 PCS Per MonthProduct Description

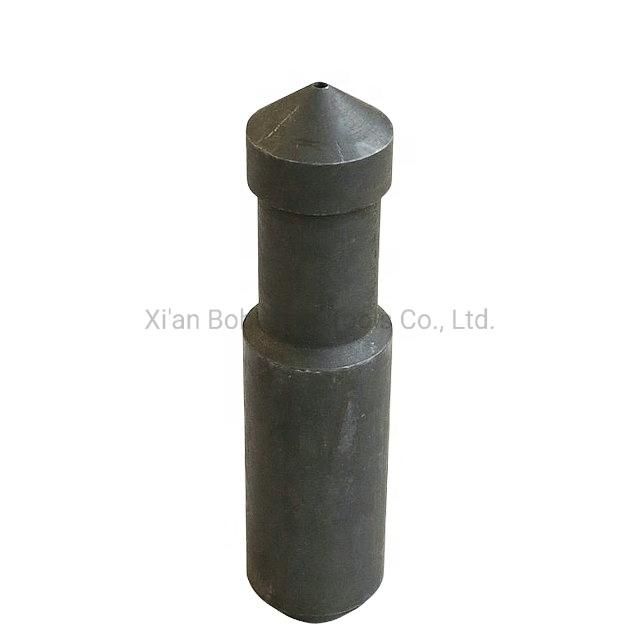

Oilfield Downhole Tools Slickline Wireline CrossoverI. IntroductionA rope socket is used to attach wireline to the tool string. The pear drop rope socket is the most convenient model, which clamps the wireline by the pear-shaped wedge. BOBAN series rope socket are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
| Size | Applicable tubing | Applicable Slickline | Fishing Neck | Connection |
| 1.25" | 2-3/8" | 0.125″ | 1.187" | 15/16UN |
| 1.5" | 2-3/8"~2-7/8" | 0.125″ | 1.375" | 15/16UN |
| 1.5" | 2-3/8"~2-7/8" | 0.16″ | 1.375" | 15/16UN |
| 1.75" | 2-3/8"~2-7/8" | 0.125″ | 1.375" | 15/16UN |
| 1.875" | 2-7/8"~3-1/2" | 0.125″ | 1.75" | 1-1/16UN |
| 2.125" | 3-1/2"~4-1/2" | 0.125″ | 1.75" | 1-1/16UN |
| 2.5" | Over 4-1/2" | 0.125″ | 2.313" | 1-9/16UN |
