Oilfield Downhole Tools Wireline Slickline Tools Slip Rope Socket
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：BBS
- for Wire Size：0.108", 0.125"
- Connection：Un, Qls, Hdqrj
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：100 PCS Per Month
Description
Basic Info.
Model NO. BBS for Wire Size 0.108", 0.125" Connection Un, Qls, Hdqrj Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 100 PCS Per MonthProduct Description

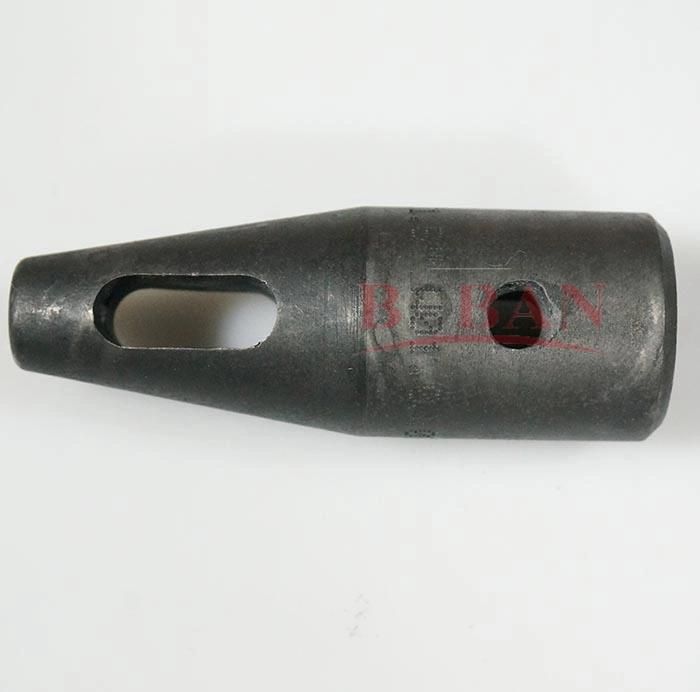

Oilfield Wireline Slickline Tools Slip Rope SocketI. IntroductionA slip rope socket is used to attach wireline to the tool string. The upper section is to load and the lower section is to lead. Fishing neck is available on the top. BOBAN series rope socket are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
| Size | Applicable tubing | Fishing Neck | Connection |
| 1.5" | 2-3/8"~2-7/8" | 1.375" | 15/16UN |
| 1.75" | 2-7/8"~3-1/2" | 1.375" | 15/16UN |
| 1.875" | 2-7/8"~3-1/2" | 1.75" | 1-1/16UN |
| 2.125" | 3-1/2"~4-1/2" | 1.75" | 1-1/16UN |
| 2.5" | Over 4-1/2" | 2.313" | 1-9/16UN |
