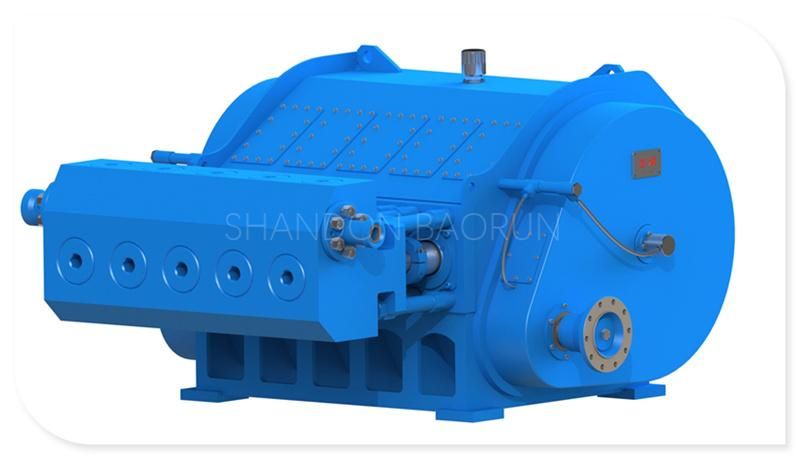

Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield

Shandong Baorun Precision Machinery Manufacturing Co., Ltd.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy
  • Rated Brake Horsepower：2,500HP (1864kw)
  • Maximum Rod Load：192,325 Lbf (855.5kn)

Base Info

  • Model NO.：BR25000Q
  • Stroke Length：8"(203.2mm)
  • Gear Ratio：6.353:1
  • Overhall Dimensions：87.29X79.27X45.90in (2,217 X 2,013 X 1,166 mm)
  • Weight：16,093 Lbs(7,300kg)
  • Application：Fracturing
  • OEM：Accept
  • MOQ：1set
  • Delivery：2-3months Aganist Contract
  • Transport Package：Seaworthy Packing
  • Specification：BR2500Q
  • Trademark：Baorun
  • Origin：China
  • HS Code：841350
  • Production Capacity：100 Sets Per Year

Description

2096
Based on 90% ME and 100% VE - Intermittent service only.
Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield
Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield
Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing OilfieldBaorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield1.Excellent design ability (R&D)10 years experiences in design, production and field application;Two large national labs (materials, transmission) as our backup force;8 skilled senior R&D engineers keep innovating on material, structure and transmission system.2.Strict quality control (QC)Quality control plan, incoming inspection, process inspection, outgoing inspection, quality file and tracing.3.Fast response24 x 7 x365 fast response, providing technical support and feedback to customers.Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield
Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield

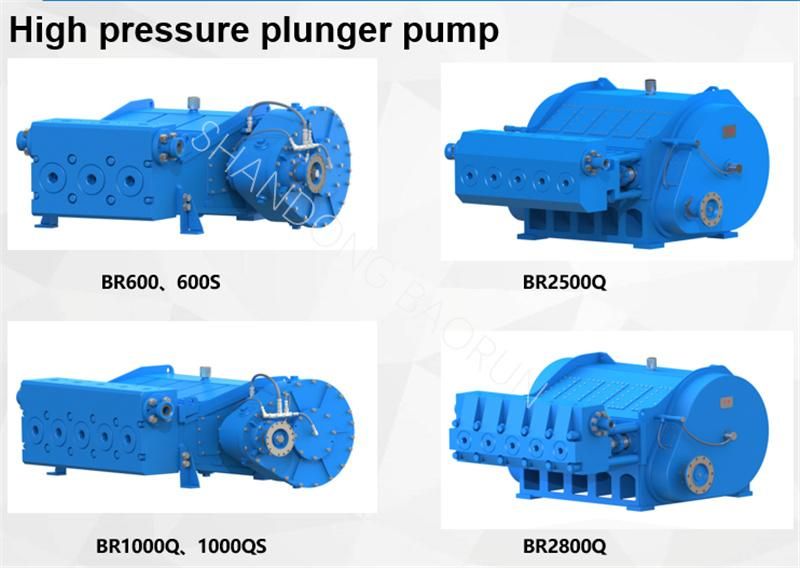

Shandong Baorun Precision Machinery Manufacturing Co.,Ltd is mainly engaged in high pressure pump design and manufacture, including acidizing & cementing & frac pump and parts, hydraulic piston pump, motor, hydraulic multi-way valves as the key components in hydraulic system. Our frac pump horsepower can reach up to 6600HP, which is the most powerful in this oilfield industry now. Spare parts mainly include fluid ends, valve and seat, valve insert, plunger, packing set, junk ring, valve spring and seal. Besides, good interchangeability of spare parts with SPM, GD, FMC and so on can meet customer's unique requirements.

Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield
Baorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing OilfieldBaorun Fluid Ends with Quintuplex Cylinders Made in Acidizing, Cementing and Fracturing Oilfield
