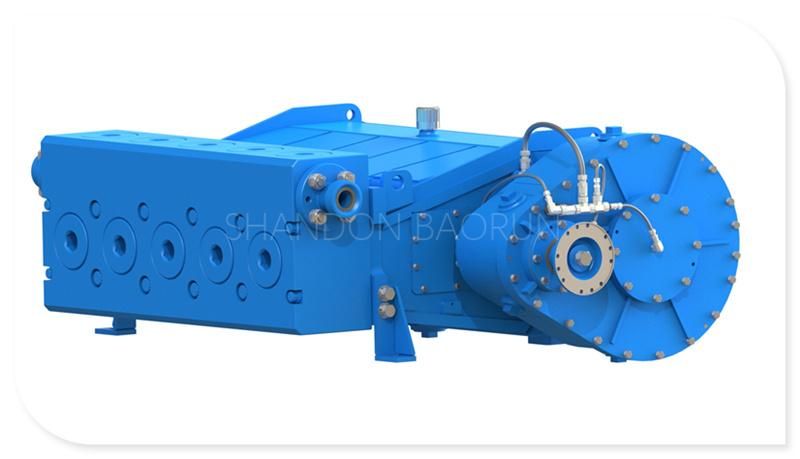

Oil Field Use Plunger Pumps with High Pressure 1000HP, Oilfield Equipment Pumps
Shandong Baorun Precision Machinery Manufacturing Co., Ltd.- Manufacturing Process：Forging
- Surface Treatment：Spray-Paint
- Operation Pressure：Atmospheric Pressure
- Material：Alloy
- Rated Brake Horsepower：1,000HP (745.7kw)
- Maximum Rod Load：100,000lbf (445kn)
Base Info
- Stroke Length：6"(152.4mm)
- Gear Ratio：4.61:1
- Overhall Dimensions：50.98X74.6X26.97in(1,295X1,895X685 0mm)
- Weight：7,230lbs (3,280kg)
- Application：Cementing,Frac,Acidizing
- OEM：Accept
- MOQ：1set
- Delivery：2-3months Aganist Contract
- Transport Package：Seaworthy Packing
- Specification：BR1000QS
- Trademark：Baorun
- Origin：China
- HS Code：841350
- Production Capacity：100 Sets Per Year
Description
2075
Based on 90% ME and 100% VE - Intermittent service only.
1.Excellent design ability (R&D)10 years experiences in design, production and field application; Two large national labs (materials, transmission) as our backup force; 8 skilled senior R&D engineers keep innovating on material, structure and transmission system. 2.Strict quality control (QC) Quality control plan, incoming inspection, process inspection, outgoing inspection, quality file and tracing. 3.Fast response 24 x 7 x365 fast response, providing technical support and feedback to customers.
Welcome to visit our company at any time!
Based on 90% ME and 100% VE - Intermittent service only.

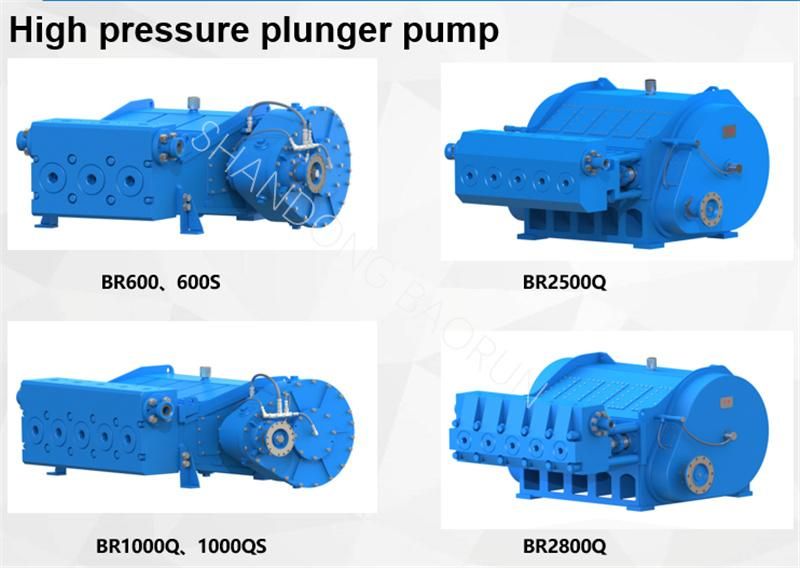

1.Excellent design ability (R&D)| Shandong Baorun Precision Machinery Manufacturing Co.,Ltd is mainly engaged in high pressure pump design and manufacture, including acidizing & cementing & frac pump and parts, hydraulic piston pump, motor, hydraulic multi-way valves as the key components in hydraulic system. Our frac pump horsepower can reach up to 6600HP, which is the most powerful in this oilfield industry now. Spare parts mainly include fluid ends, valve and seat, valve insert, plunger, packing set, junk ring, valve spring and seal. Besides, good interchangeability of spare parts with SPM, GD, FMC and so on can meet customer's unique requirements. |
