• Model NO.：rigid centralizer
• OEM：Avaliable
• Sample：Avaliable
• Vane：Stright Vane, Spiral Vane,
• Centralizers Type：Cast Steel Rigid Centralizers
• Transport Package：Wooden Case
• Specification：4′′~20′′
• Trademark：ZS
• Origin：Henan
• HS Code：8431
• Production Capacity：5000 Piece,Pieces Per Month

Basic Info.

Model NO. rigid centralizer OEM Avaliable Sample Avaliable Vane Stright Vane/ Spiral Vane/ Centralizers Type Cast Steel Rigid Centralizers Transport Package Wooden Case Specification 4′′~20′′ Trademark ZS Origin Henan HS Code 8431 Production Capacity 5000 Piece/Pieces Per Month

Product Description

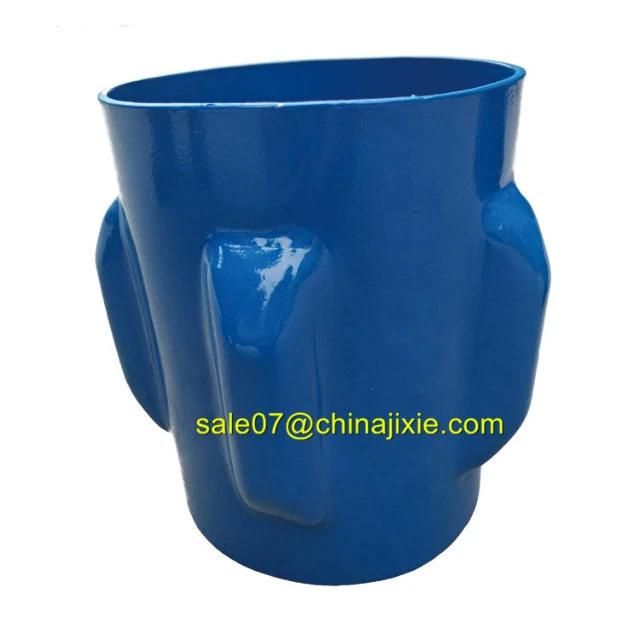

Stand off Centralizer Rigid Centralizer
Description of stand off centralizer
Rigid centralizers are with high supporting force and low starting force , thus enabling the casing smoothly down and at the same time stay at a high level.
Sizes ranging from 4-1/2" to 20", custom size are available

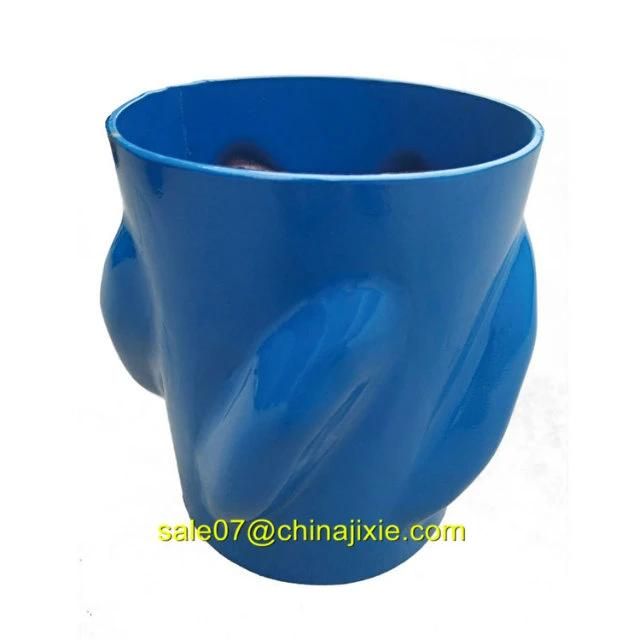

Spiral vane: reducing drag force.

Feature of stand off centralizer
1. Application:in deviated and horizontal wells, liner overlaps, and shoe joints.
2. Suitable for either cased or open hole.
3. Made of high tensile, solid, cast steel, for shock, impact, and corrosion resistance.
4. Vane ends are beveled 30 degrees relative to casing centralizer to provide excellent lead into restrictions, and reduced drag when running into hole.
5. Wide vanes distribute load from the casing string into the well bore without gouging.
6. The design of the vanes keeps running forces at a minimum.
7. The 360 degrees overlapping solid vane provides maximum wall contact and fluid swirl. Thus reduced flow area between the spiral blade and produces a vortex motion of the fluids for more fluid velocity with direction.

Technical parameter of stand off centralizer

Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2" x 6"	145	116.5	200
5" x 6"	145	129	200
5-1/2" x 8-1/2"	205-210	142	200/300
6-5/8" x 8-1/2"	205-210	171	200/300
7" x 8-1/2"	205-210	181	200/300
7" x 9-1/2"	225-235	181	200/300
7" x 9-5/8"	225-235	181	200/300
9-5/8" x 12-1/4"	300-305	248	200
13-3/8" x 17-1/2"	430-435	346	200
