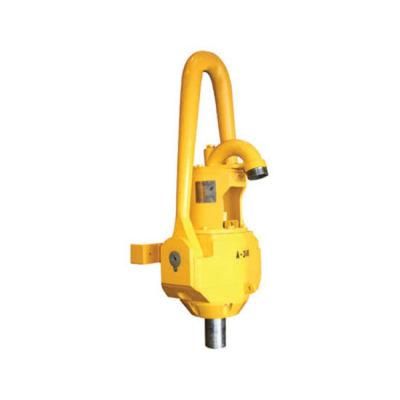

Oilfield Drilling Drilling Power Swivel with Spinner
Dongying Lake Petroleum Technology Co., Ltd.- After-sales Service：Online Services
- Warranty：Online Support
- Manufacturing Process：Casting
- Surface Treatment：Spray-Paint
- Material：Carbon Steel
- Transport Package：Box
Base Info
- Model NO.：ALL
- Specification：100*100
- Trademark：LAKE PETRO
- Origin：China
- Production Capacity：300,Year
Description
ModelXSL135 XSL170 XSL225 XSL450 Overall
dimensions mm 1800×680×590 2340×790×660 2420×980×780 3450×1096×830 in 71×27×23 92×31×26 95×39×31 136×43×33 Weight kg 1968 2268 3000 2972 Ib 4340 5000 6610 6550 Model XSL160.2C XSL225.2C XSL450.2C Air pressure Mpa 0.7-0.9 0.7-0.9 0.7-0.9 Psi 101-130 101-130 101-130 Rated torque N.m 1300 1600 1600 ft.lbf 959 1180 1180 Braking torque N.m 1600 2500 2500 ft.lbf 1180 1840 1840 Rated speed rpm 80 70 70 Rotating direction Single & Double Double direction Double direction Overall dimensions mm 608×450×440 740×565×475 740×565×475 in 24×18×17 29×21×19 29×21×19 Weight kg 218 272 272 Ib 480 600 600 Model SL135 SL170 SL225 SL450 Max.static
load kN 1350 1700 2250 4500 Uston 150 180 250 500 Rated work
load kN 1000 1300 1600 3200 Uston 110 140 175 350 Max.speed rpm 300 300 300 300 Max.working
pressure Mpa 35 35 35 35 Psi 5000 5000 5000 5000 Thresd below sub 4LP 4LP 4LP 4LP Thread below sub 65/8 REG-LH 65/8 REG-LH 65/8 REG-LH 65/8 REG-LH Overall
dimensions mm 1800×680×590 2340×790×660 2420×980×780 3450×1096×830 in 71×27×23 92×31×26 95×39×31 136×43×33 Weight kg 1750 2050 2728 2700 Ib 3860 4520 6010 5950
