• Model NO.：LT 400
• Transport Package：Export Pallet
• Specification：LT 400
• Trademark：ds
• Origin：China
• HS Code：4016931000
• Production Capacity：30000 PCS, Year

Basic Info.

Model NO. LT 400 Transport Package Export Pallet Specification LT 400 Trademark ds Origin China HS Code 4016931000 Production Capacity 30000 PCS/ Year

Product Description

1. Description

The tire clutch is a friction clutch for compressed air, generally used in applications where large torque is required, such as for ball mill, large mechanical press, and the like. The tire clutch has the advantages of high transfer torque, smooth clutching, canulating, structural compact, automatic compensation of wear gap, convenient maintenance.

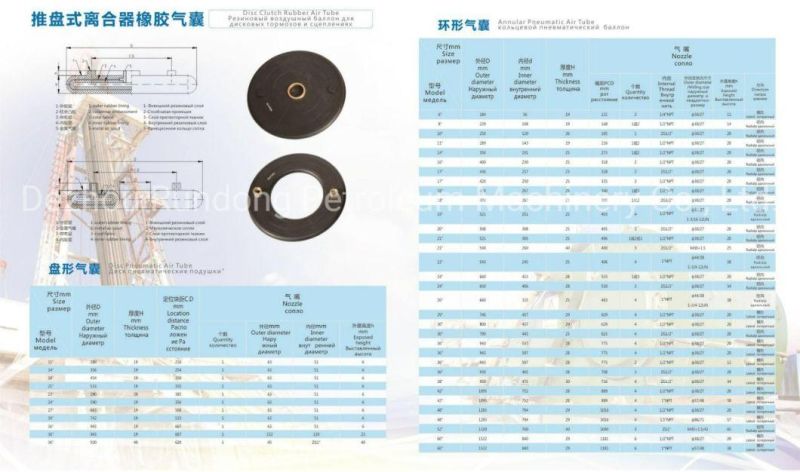

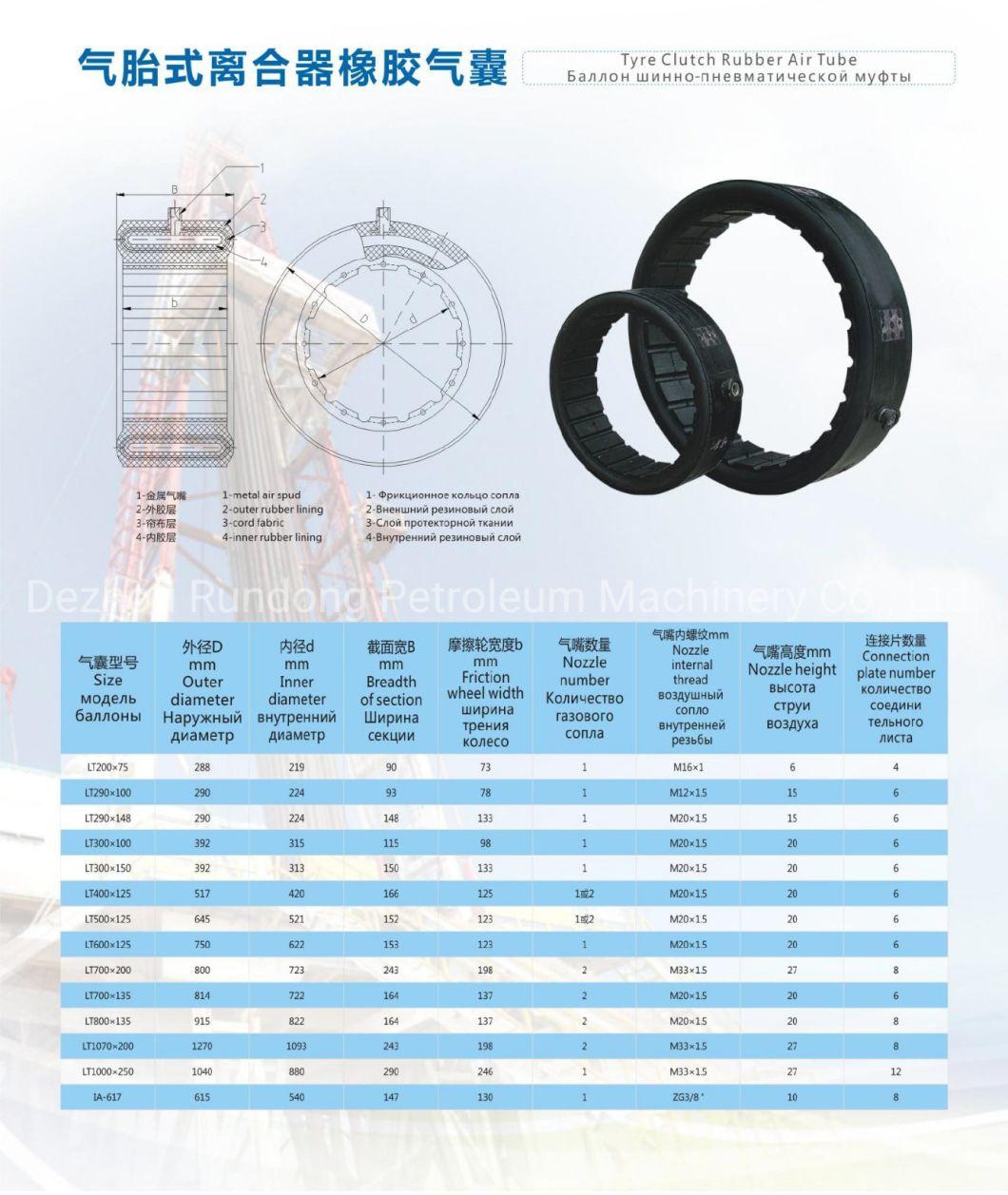

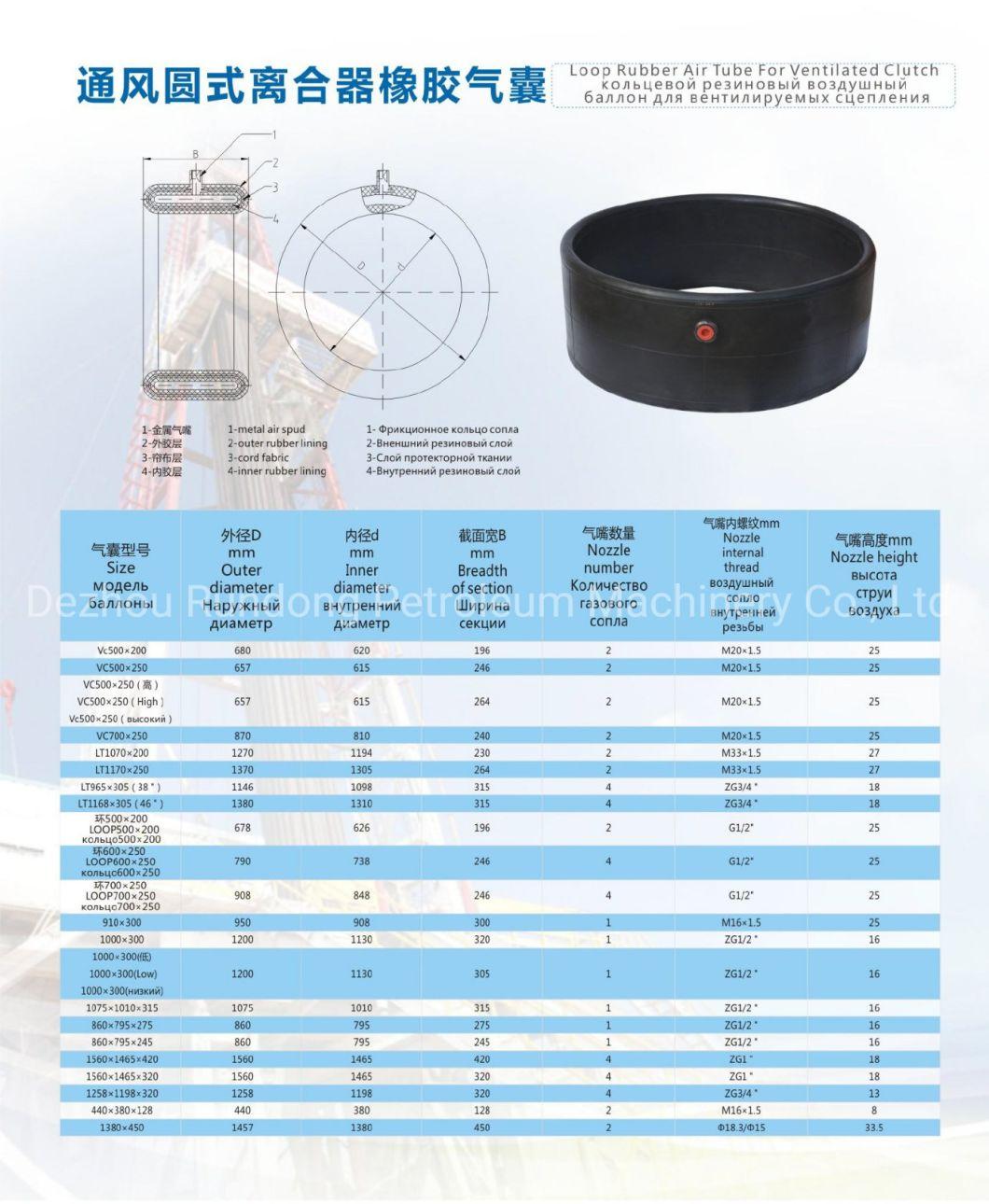

2. Specifications we can offer

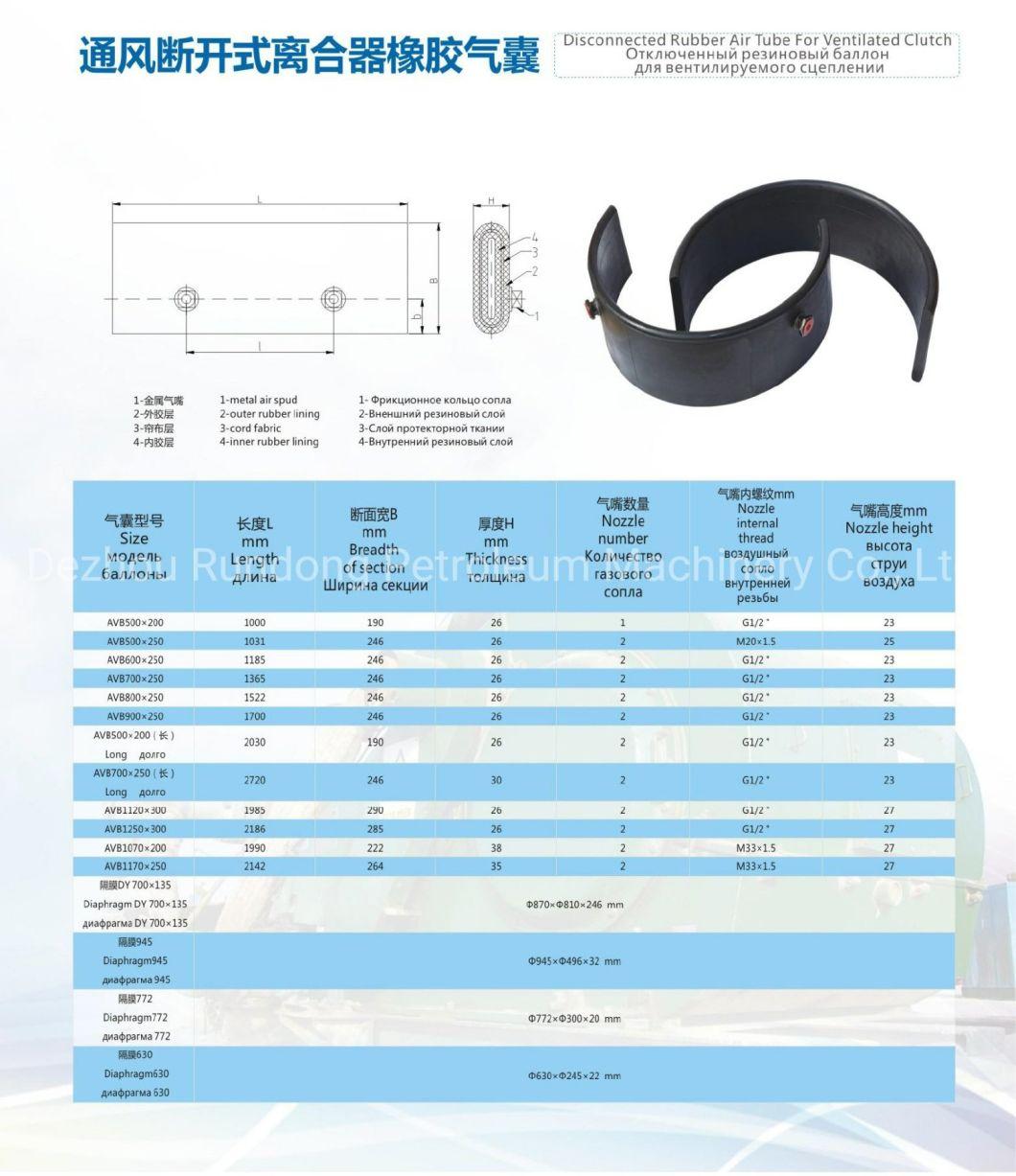

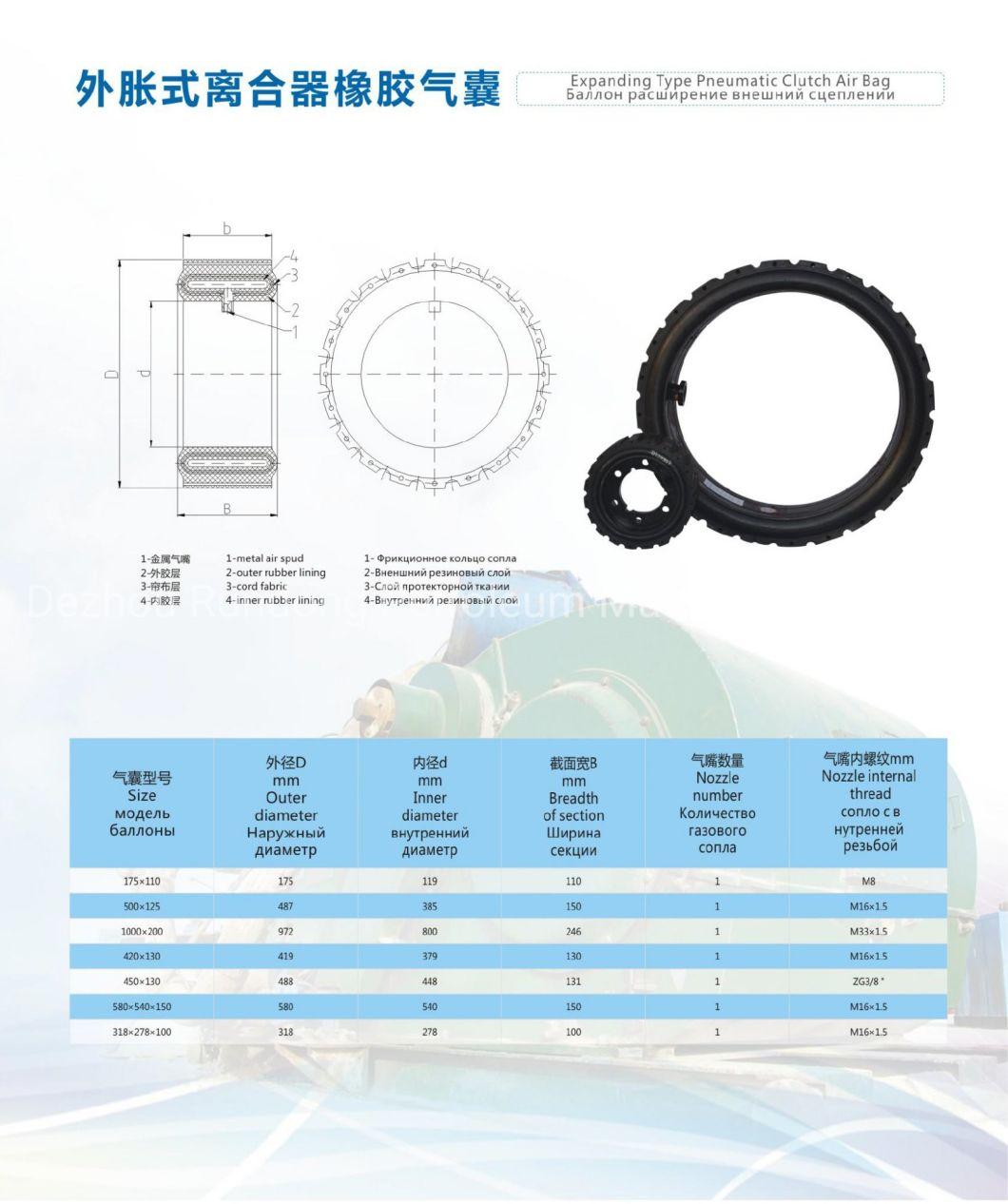

3. Details of our products


4. Structure work principle
The tire clutch can be divided into two types of radial and axial formats according to the mounting position of the tire and the friction plate. Among them, the radial aerial tire can be configured as two structural tires and double exhaust gas.
The tires are expanded when the compressed air is filled, and the air pressure is evenly distributed on the frictional assembly, so that the frictional assembly is pushed to hug the drum wheel mounted on the driven shaft. The frictional assembly is riveted by the aluminum pad and the friction plate and is guided by a torque rod fixed to the side plate.
The torque outputs from the reducer, passes through the active hub to the gas tire clutch, and then push the frictional assembly by the airfill inflation, and the power is transmitted to the driven drum.
When the drive is discharged, the clutch can be separated in the gas tire return spring and the centrifugal force. Since the compressed air intake pipe to the tires is rotated together with the proximal, the clutch input decelerator shaft is designed as a hollow shaft, and is connected to the external compressed air conduit by a mechanical sealing device.

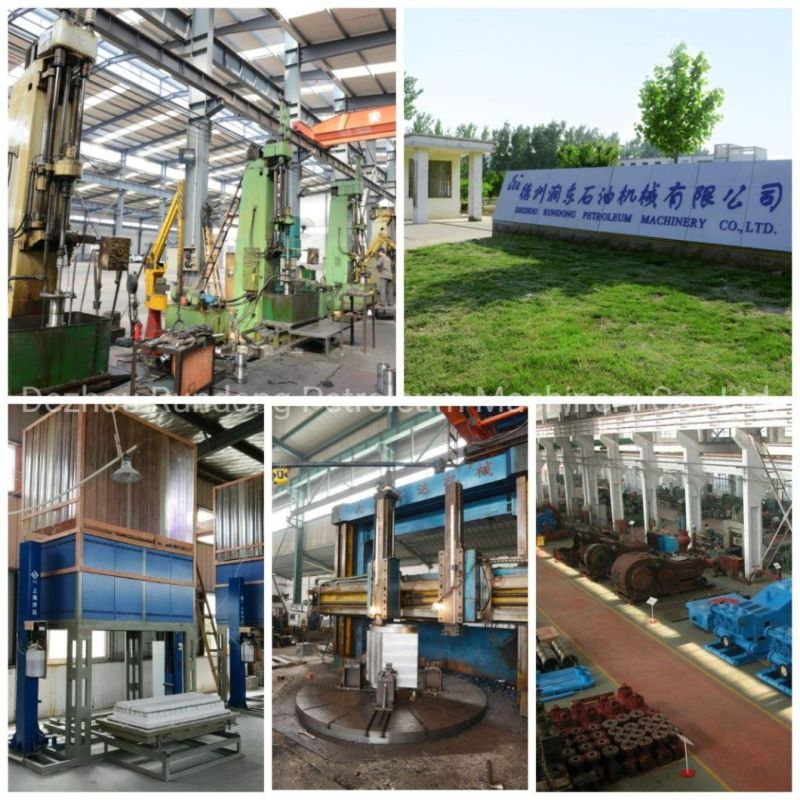

5. Overview of Company

Dezhou Rundong Petroleum Machinery Co., Ltd is a professional company with 18 years history in manufacturing of petroleum machinery products. Our company has an area of 17500 square meters, 12 technical personels, 18 quality inspection personels, 126 workers and 9 patents. Annual output value is up to USD $14 million. After comparing with foreign famous brand products during testing on offshore of COSL and various oilfields , some products enjoy the same quality level with them both in processing technic and service life. Our company has made excellent contribution in pushing Chinese petroleum machinery industry forward.



6. Our patents & certificates

7. Pacakge of our products

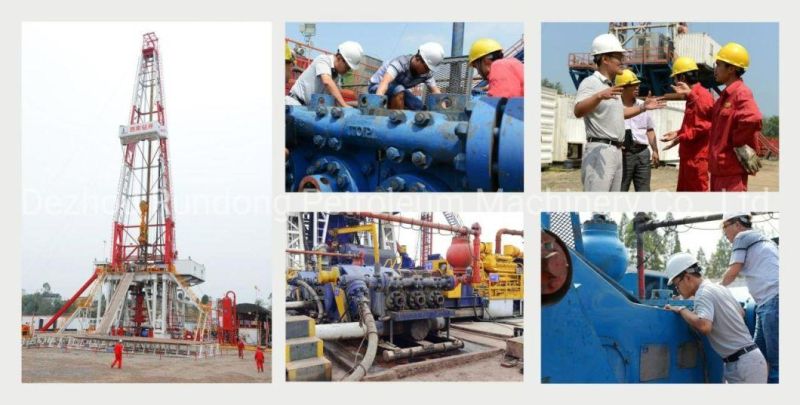

8. Customers' visiting shows

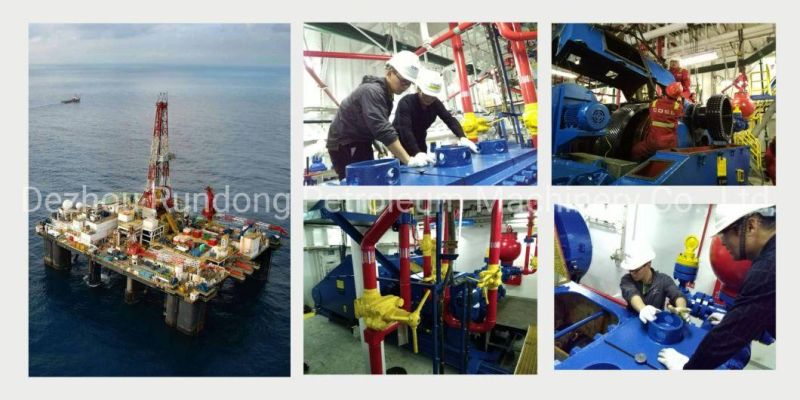

9. After-sales service(on-well service)



10. Transportation


11. FAQ
Q1: Are you manufacture?
A1: Yes, we are. We have been in drilling industry for 20 years and some of our products has enjoyed high reputation already, such as drilling tools, mud pump parts etc. Meanwhile, we trade other accessories to save customers' energy and shipping cost.

Q2: How to believe that our products have high quality?

A2: We are first-choice supplier of COSL, SINOPEC, CNPC since we established our company. Our products have been tested compared with some foreign famous brand on on-shore and off-shore drilling projects many times. Our products show their high-cost-performance always.

Q3: How can I choose the most suitable products ?

A3: Please let us know your needed products name and specifications. Our professional technical department will suggest the most suitable products to you according to your fact demands.

Q4: Could you supply samples?
A4: Yes, we could. We are glad to supply samples, but with sample fees.

Q5: Whether you can manufacture strange kind of products, even the model isn't clear ?
A5: Yes, we could. If you can provide the drawings, we can manufacture as per your drawings. If you don't have drawings, the samples are workable. After receiving your samples, we can measure and make a drawing, then manufacture as per the drawing.

Q6: What is your trade terms?
A6: EXW, FOB, CFR and CIF etc. all acceptable.

Q7: What's the Payment Terms ?
A7: 30% T/T after signing the contract and 70% balance before delivery.

Q8: What's the delivery time?
A8: For stocks in available, it could be shipped out within 3 days after receiving the prepayment. For products need to be produced, usually 35 working days.

Q9: What's the warranty time?
A9: Normally, it is 12 months after you receiving our products.
