Oilfield Downhole Tools Wireline Slickline Link Jar mechanical Link Jar
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：BBLJ
- for Wire Size：0.108", 0.125"
- Connection：Un, Qls, Hdqrj
- Lenghth：2FT, 3FT,5FT
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. BBLJ for Wire Size 0.108", 0.125" Connection Un, Qls, Hdqrj Lenghth 2FT, 3FT,5FT Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

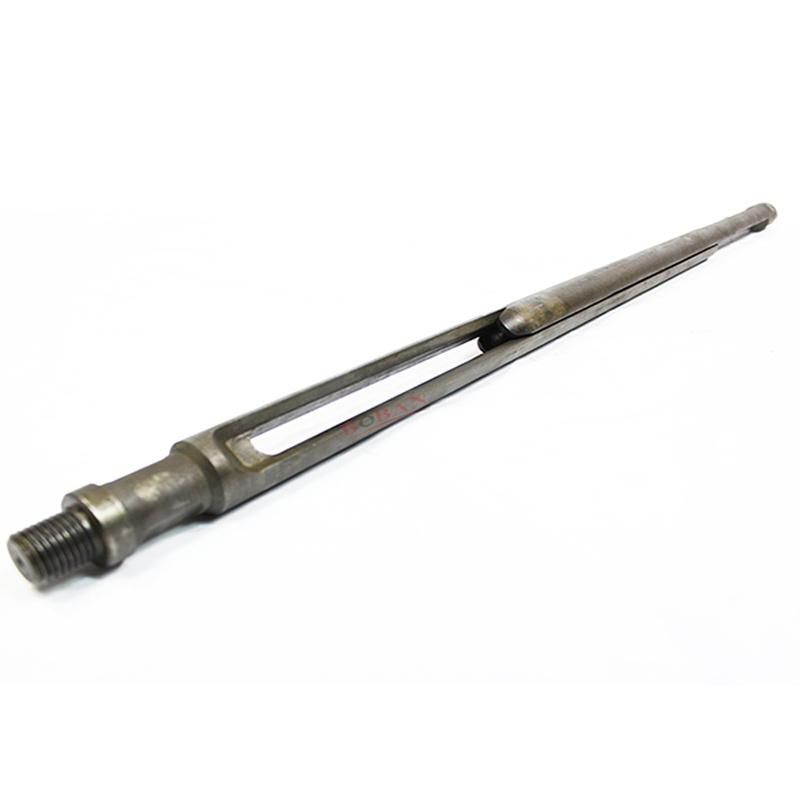

Oilfield Downhole Tools Wireline Slickline Link Jar Mechnical Link JarI. IntroductionA wireline link jar is designed to act like a sliding hammer, utilizing the weight of the stem located immediately above, to convey powerful jarring impacts. Upward and downward impacts (jarring actions) are achieved by controlling the direction and speed of the wireline at surface.
II. General Technical Parameters
| Size | Fishing Neck | Connection | Stroke |
| 1.25" | 1.187" | 15/16-10UN | 20" |
| 1.25" | 1.187" | 15/16-10UN | 24" |
| 1.25" | 1.187" | 15/16-10UN | 30" |
| 1.5" | 1.375" | 15/16-10UN | 20" |
| 1.5" | 1.375" | 15/16-10UN | 24" |
| 1.5" | 1.375" | 15/16-10UN | 30" |
| 1.875" | 1.75" | 1-1/16-10UN | 20" |
| 1.875" | 1.75" | 1-1/16-10UN | 24" |
| 1.875" | 1.75" | 1-1/16-10UN | 30" |
| 2.5" | 2.313" | 1-9/16-10UN | 20" |
| 2.5" | 2.313" | 1-9/16-10UN | 24" |
| 2.5" | 2.313" | 1-9/16-10UN | 30" |
Note. Other sizes are available upon request.
