Oilfield Downhole Tools Wireline Slickline Tungsten Filled Stem
Xi'an Boban Oil Tools Co., Ltd.- After-sales Service：24,7
- Warranty：12 Months
- Manufacturing Process：CNC Milling
- Surface Treatment：Phosphating
- Operation Pressure：N,a
- Material：Cast Steel
Base Info
- Model NO.：BBTS
- for Wire Size：0.108", 0.125"
- Connection：Un,Qls,Hdqrj
- Legth：2, 3, 5FT
- Transport Package：Wooden Case
- Specification：1.25"~2.5"
- Trademark：BOBAN & OEM
- Origin：China
- HS Code：8431431000
- Production Capacity：30 PCS Per Month
Description
Basic Info.
Model NO. BBTS for Wire Size 0.108", 0.125" Connection Un,Qls,Hdqrj Legth 2, 3, 5FT Transport Package Wooden Case Specification 1.25"~2.5" Trademark BOBAN & OEM Origin China HS Code 8431431000 Production Capacity 30 PCS Per MonthProduct Description

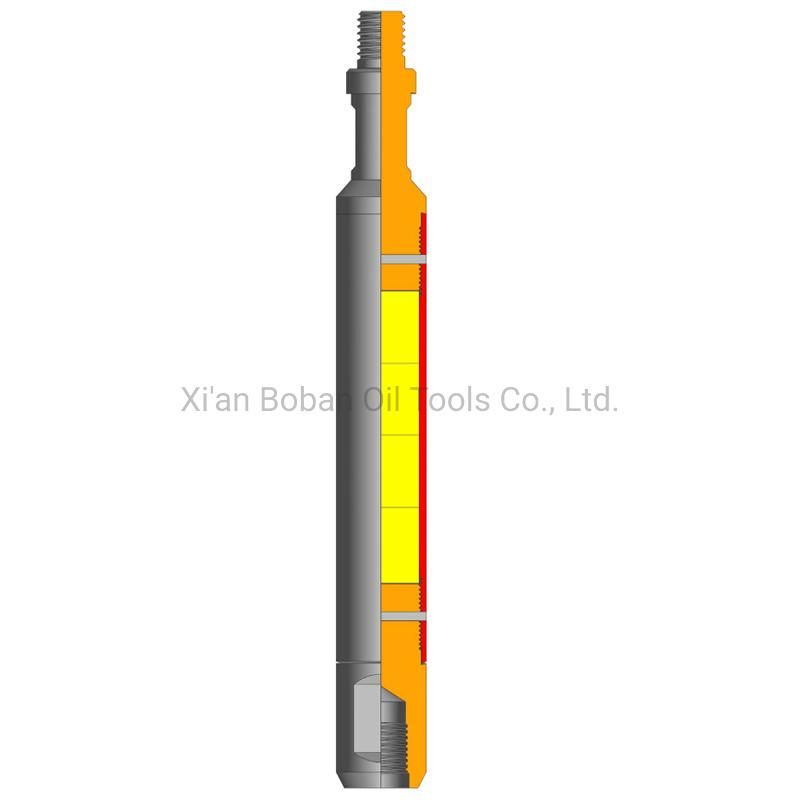

Oilfield Downhole Tools Wireline Slickline Tungsten Filled StemI. IntroductionA tungsten filled stem is designed to serve two purposes. It provides the weight required to overcome friction and pressure differential within the stuffing box during wireline operations, allowing the tool string to descend into the well. It also provides kinetic energy, which is converted into a downward or upward jarring force as required.
BOBAN series slickline tools are available for UN, QLS and HDQRJ connection.
II. General Technical Parameters
| Size | Fishing neck | Connection | Length |
| 1.25" | 1.187" | 15/16UN | 2ft |
| 1.25" | 1.187" | 15/16UN | 3ft |
| 1.25" | 1.187" | 15/16UN | 5ft |
| 1.5" | 1.375" | 15/16UN | 2ft |
| 1.5" | 1.375" | 15/16UN | 3ft |
| 1.5" | 1.375" | 15/16UN | 5ft |
| 1.75" | 1.375" | 15/16UN | 2ft |
| 1.75" | 1.375" | 15/16UN | 3ft |
| 1.75" | 1.375" | 15/16UN | 5ft |
| 1.875" | 1.75" | 1-1/16UN | 2ft |
| 1.875" | 1.75" | 1-1/16UN | 3ft |
| 1.875" | 1.75" | 1-1/16UN | 5ft |
| 2.125" | 1.75" | 1-1/16UN | 2ft |
| 2.125" | 1.75" | 1-1/16UN | 3ft |
| 2.125" | 1.75" | 1-1/16UN | 5ft |
| 2.5" | 2.313" | 1-9/16UN | 2ft |
| 2.5" | 2.313" | 1-9/16UN | 3ft |
| 2.5" | 2.313" | 1-9/16UN | 5ft |
Note. Other sizes are available upon request.
