Hexalobular Broach Go/Nogo Gages

Puyang Zhongshi Group Co., Ltd.
  • After-sales Service:Yes
  • Warranty:1 Year Since Delivery
  • Manufacturing Process:Forging
  • Surface Treatment:Spray-Paint
  • Operation Pressure:No
  • Material:Steel

Base Info

  • Transport Package:Carton
  • Specification:T5-T65
  • Trademark:ZS
  • Origin:Henan, China
  • HS Code:90173000
  • Production Capacity:5000piece,Month

Description

Basic Info.

Transport Package Carton Specification T5-T65 Trademark ZS Origin Henan, China HS Code 90173000 Production Capacity 5000piece/Month

Product Description

Hexalobular Broach Go/NoGo gages

1. Since 1997, with 20 years production experience
2. API Q1, 5CT, 11AX, 11E, 6A and ISO Certificates
3. Strict Quality Control System
4. Prompt Delivery Time




Description

Hexalobular Broach gages can be used to make sure that the size of the 6-lobed (hexalobular) hole has been machined properly. Unlike rotary broaches, hexalobular broach gages have no taper.

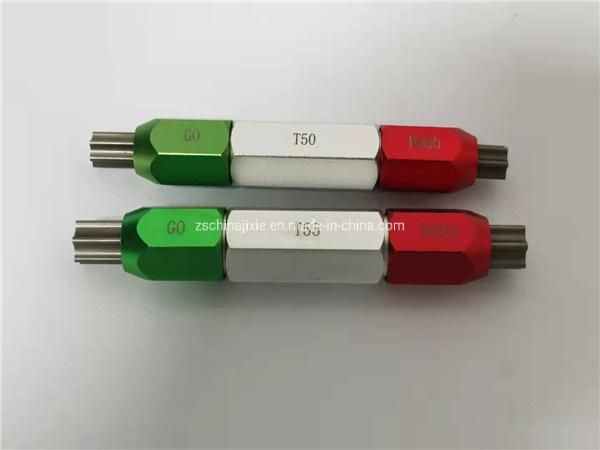

Our gages are made as GO and NOGO pairs. Each gage is designed to be held by hand and inserted into the hexalobular (6-lobed) hole. If the NOGO gage fits, then the hole is too large and the part fails inspection. If the GO gage fits, then the hole is the right size and the part will pass inspection. If the hole was too small the GO gage would not have fit inside.

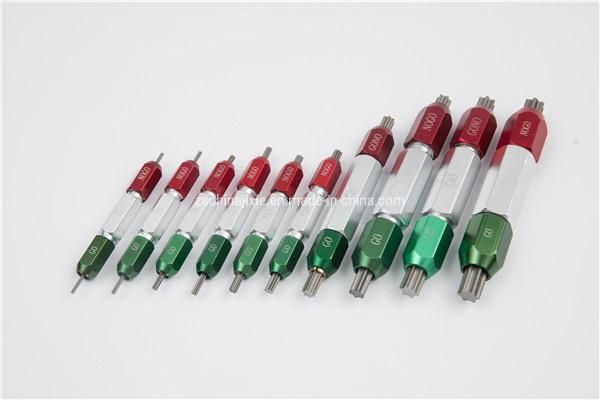

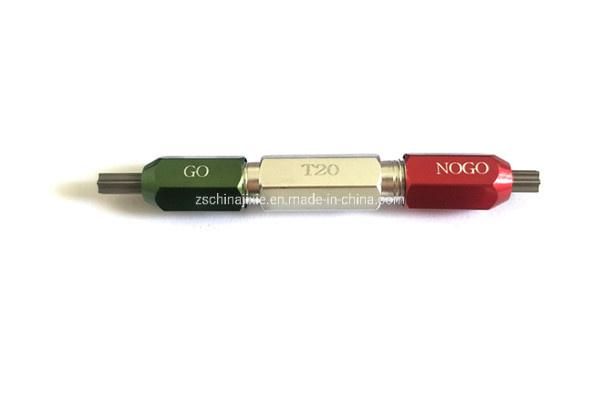

Hexalobular Gages can also help to determine if there is too much twist in the form, a common troubleshooting feature of holes manufactured using the rotary broaching process. All gages come with handles featuring green caps on the GO gage side and red caps on the NOGO side.

Hexalobular Broach Go/Nogo GagesHexalobular Broach Go/Nogo GagesHexalobular Broach Go/Nogo Gages

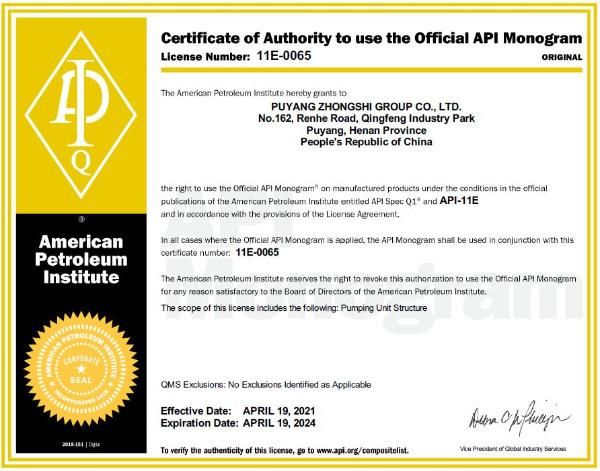

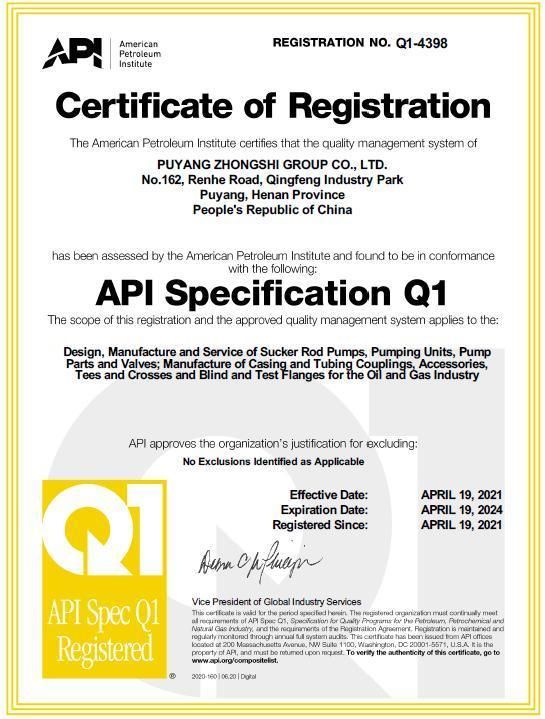

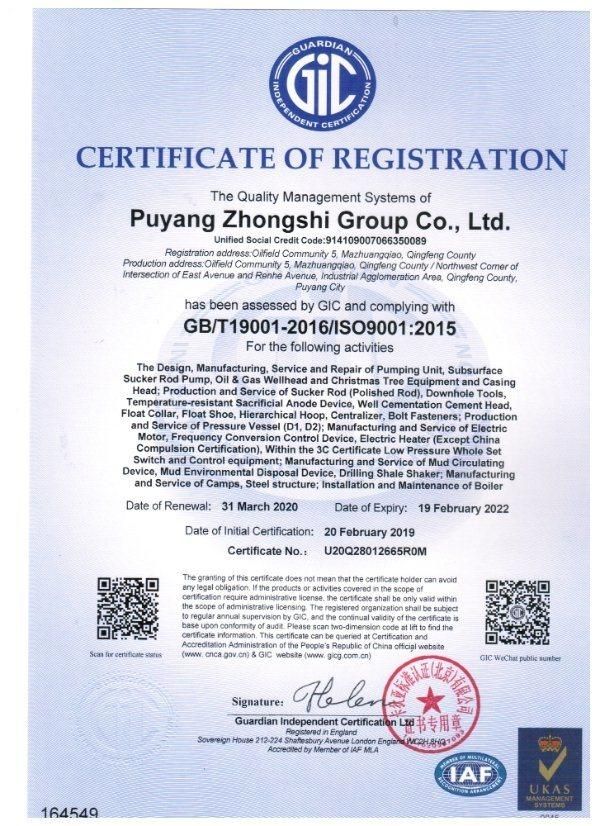

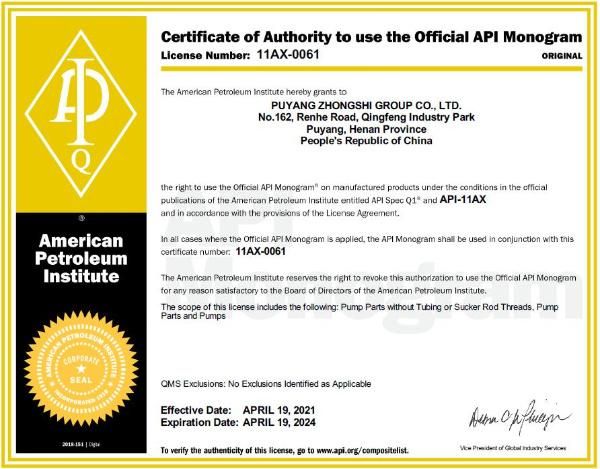

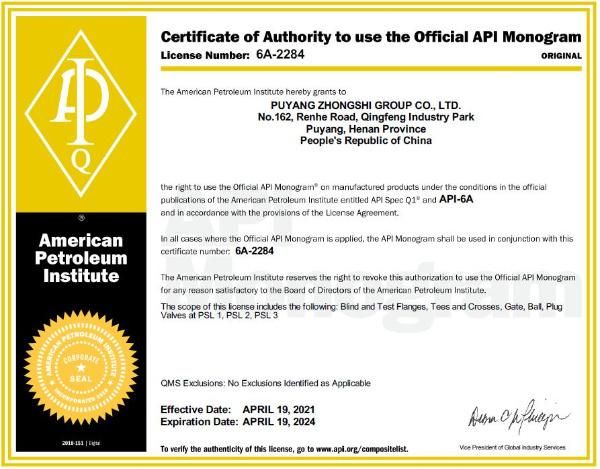

Certificate
Hexalobular Broach Go/Nogo Gages

Hexalobular Broach Go/Nogo GagesHexalobular Broach Go/Nogo GagesHexalobular Broach Go/Nogo GagesHexalobular Broach Go/Nogo GagesHexalobular Broach Go/Nogo Gages


Company Information


Puyang Zhongshi Group Co., Ltd is a professional manufacturer of various oilfield equipments and cementing accessories since 1997, restructured enterprise of SINOPEC.



We have the certificates of API 5CT, API Q1, API 11E, API 6A, API 11AX, ISO 9001 and ISO 14001, etc..

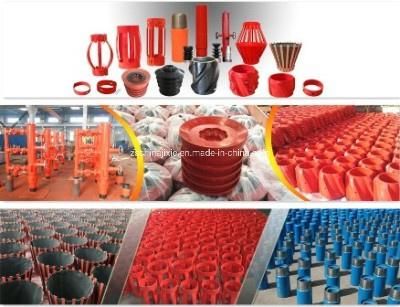

Our  products mainly include:



1. Casing Centralizer

2.  Float Collar & Float Shoe

3. Cementing Plug

4.  Cementing Head
5.  Cement Basket

6.  Tubing Pump / Rod Pump
7.  Valve Ball & seat

8. Casing / Tubing Pipe and Coupling
9. Stage Collar

10. Pumping Unit
11. Sucker Rod
Hexalobular Broach Go/Nogo Gages



Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC.  Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
