API 6A Single Tubing Head for Wellhead
Wise Channel Industries Limited- Certification：API Certificate
- Power Source：Outer Source
- Applicable Medium：Mud, Natural Gas, Crude Oil
- Material：Alloy

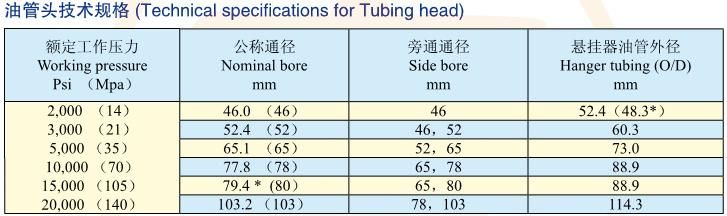

- Working Pressure：2000~20000psi
- Temp. Class：L~U
Base Info
- Model NO.：Tubing head-single
- Production Specification Level：Psl1~Psl4
- Performance Requirement：Pr1, Pr2
- Transport Package：Wooden Case
- Origin：Jiangsu China
- HS Code：8431431000
- Production Capacity：800units Per Year
Description

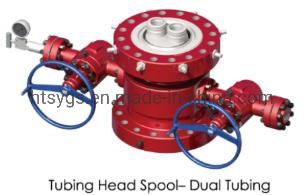

Tubing head and tubing spool are used for hanging tubing and sealing the annular space between casing and tubing, feature with the following:
- Secondary seal between tubing hanger and adapter hanger can be "O" ring, BT seal or metal-metal seal;
- Metal-metal seals, special elastomer seals, or metal+special seals are set between tubing hanger and tubing head;
- Tubing hanger for tubing head has straight type seat bore and 45°cone of hanging shoulder, wth strong loading ability;
- Complete with lubricator and sealing test port;
- Secondary seal mechanism is set at the bottom flange, which can be "O"seal,BT seal or metal seal;
- Tubing hanger and tubing head adapter flange can be penetrated through cable or cable penetrator and be provided with control pipeline interface;

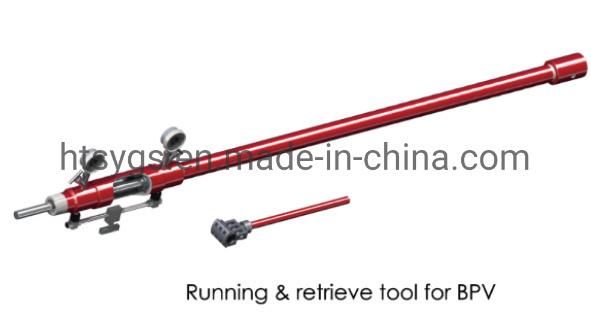

- Tubing hanger can be set with BPV thread as required;
- The flanges are provided with locking screw;
- The connection type of side outlet is bolted with VR thread for valve-replacement operation.

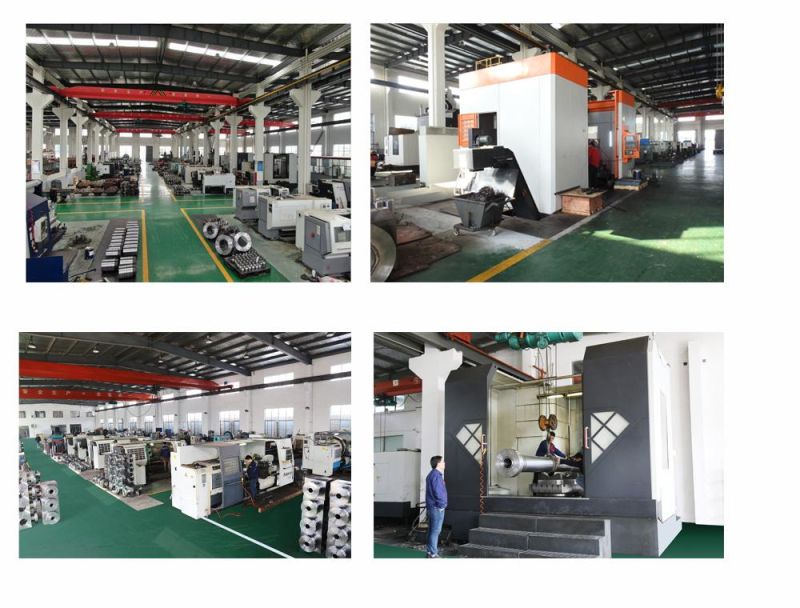

Our production line

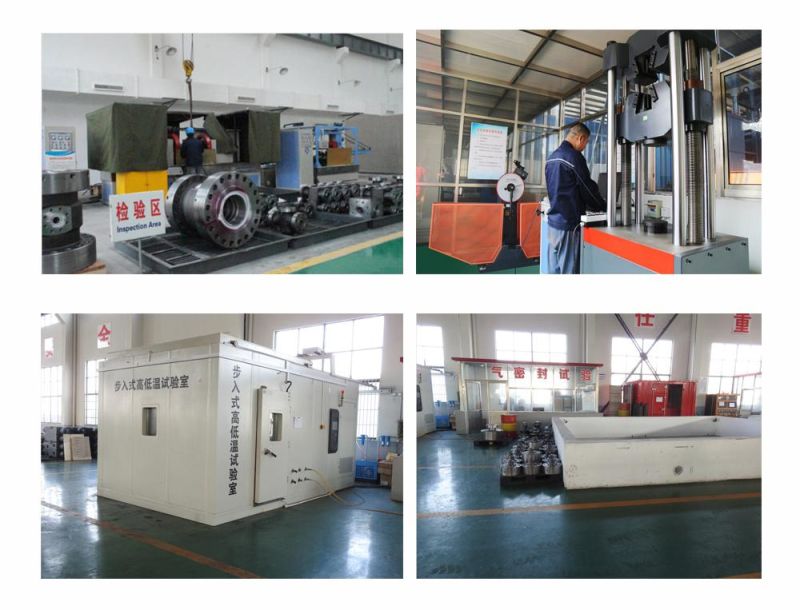

Some Test facilities
