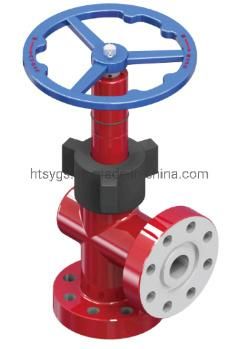

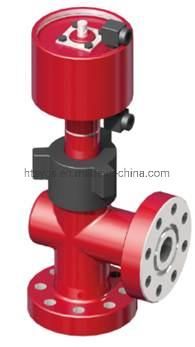

API 6A Adjustable Choke Valve Used in Oil Field
Wise Channel Industries Limited- Certification：API Certificate
- Operation Pressure：2000~2000psi
- Applicable Medium：Mud, Natural Gas, Crude Oil
- Material：Alloy
- Main Bore：2-1,16"~7-1,16"
- Production Specification Level：Psl1~Psl4
Base Info
- Model NO.：Choke Valve-Manual
- Performance Requirement：Pr1, Pr2
- Temp.Class：P~U
- Material Class：AA~FF
- Transport Package：Wooden Case
- Origin：Jiangsu China
- HS Code：8481901000
- Production Capacity：1000units Per Year
Description
Valve needle and spool are made of tungsten carbide, with sufficient corrosion resistant, anti-eroding an wearable capacity.
The two kinds of adjustable and external sleeve type could apply to wellheads&X-mass tree and choke manifold.
Features:
The coupling nut used for connecting the bonnet and body allows fast make-up and break-out;
Stem tip and bean adapter are fabricated from special carbide alloys for corrosion and abrasion resistance;
Indicator lens with scale marks allows the operator to know stem's position and actual orifice area;
Turn hand wheel counter-clockwise and the valve will open;turn hand wheel clockwise and the valve will close;
Main tecgnical data:
Working pressure:2000~20000PSI
Nominal Bore:2-1/16"~7-1/16"
Working temperature: P~U
Production specification level:PSL1~4
Performance requirement: PR1~2
Material class: AA~FF
Working medium: crude oil, natural gas, drilling fluid

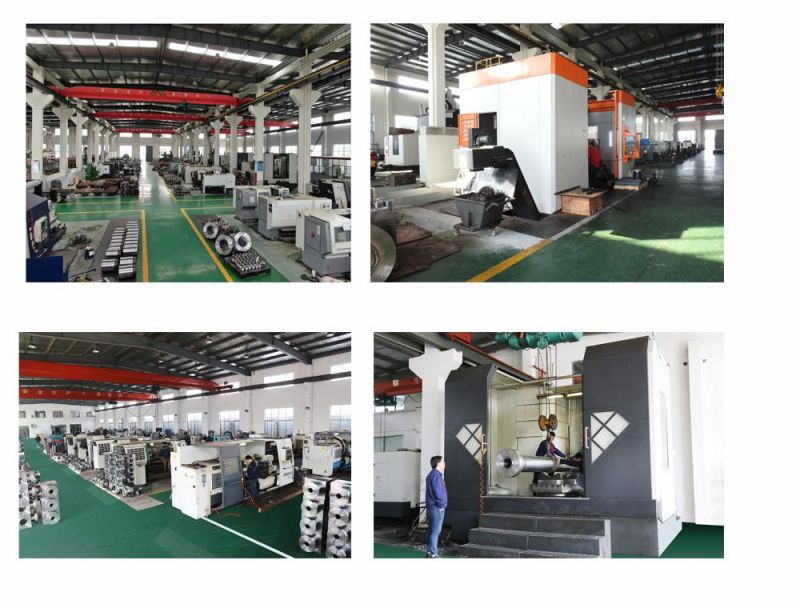

Production Line

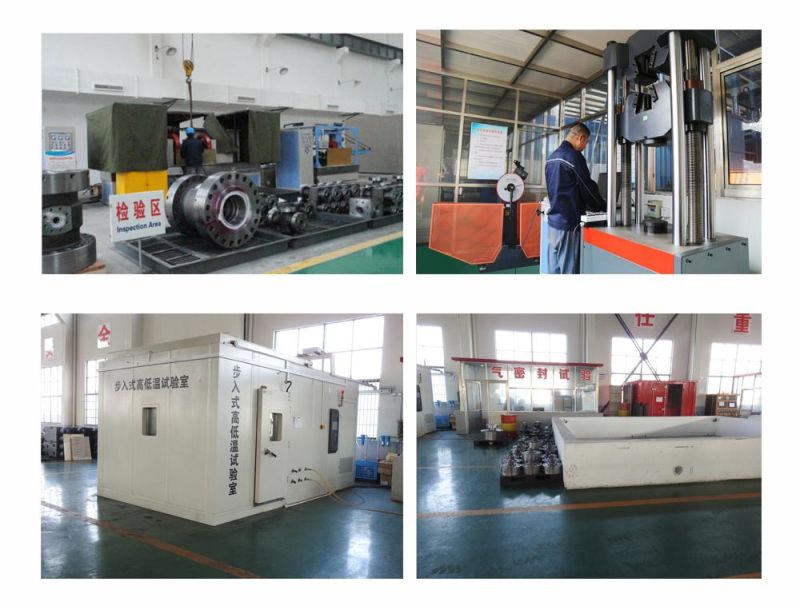

Test Equipment
