• Model NO.：TRZS703
• Capacity：130m3,H
• Vibration Motion：Balanced Elliptical Motion
• Motor Power：1.94+1.0kw
• Vibration Strength：≤7.1g(Adjustabe)
• Double Amplitude：7mm
• Adjustment Angle：-1°-+5°
• Ex Standard：Exdllbt4
• Weight：1930kg
• Transport Package：Pallet or Wooden Case
• Specification：2770*1785*1690mm
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：30 Sets, Month

(Model)TRPS703TRPS585-4TRZS703TRZS585Vibration MotionBalanced Elliptical MotionLinear MotionTreatment Capacity130m³/h140m³/h120m³/h130m³/hMotor Power1.94+1.0kw1.94+1.0kw1.5KW×21.72KW×2Screen Specs.(700×1250mm)×3(585×1165mm)×4(700×1250mm)×3(585×1165mm)×4Screen Area2.6m²2.7m²2.6m²2.7m²Vibration Strength≤7.1G≤7.1G≤7.1G≤7.1GDouble Amplitude7mm7mm6mm6mmDeck Adjustment-1°~+5°-1°~+5°-1°~+5°-1°~+5°Ex StandardExdIIBt4 / IECEX / A-TEXWeight1630kg1618kg1620kg1600kgDimension2770×1785×1690mm2966×1600×1280mm2770×1785×1690mm2966×1600×1280mmRemarkAbove data are tested from the drilling mud with viscosity 45s,and specific gravity 1.2g/cm3.







Application

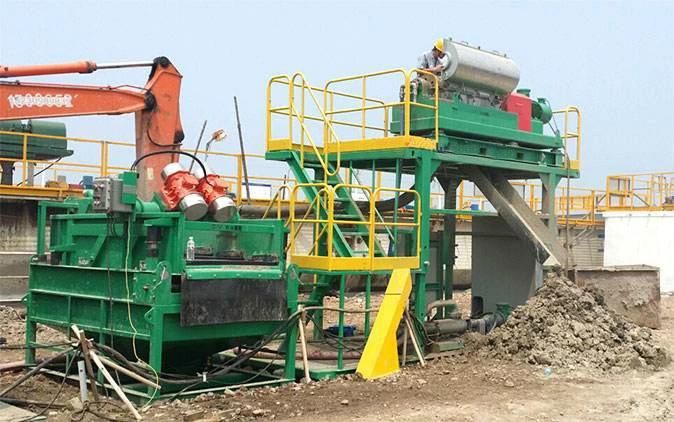

TR drilling shale shaker is widely used in oil & gas drilling, Drilling Waste Management, city bored piling, tunneling construction, trenchless HDD, micro-tunneling, Oil Sludge Dewatering Systems, Oil Mud Seperation, environment protection, mining, Coal Bed Gas Solids Control System, Water Drilling etc.



Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
