Oil Integral Spiral Blade String Drilling Stabilizer for Oilfield

Xi'an TianRui Petroleum Machinery Equipment Co., Ltd.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Atmospheric Pressure
  • Material：Alloy
  • Outer Diameter：5 7,8 "~ 42"
  • Connection：75,8" Reg Pin -75,8" Reg Box

Base Info

  • Model NO.：TRWDQ
  • Hardfacing：Hf1000 Hf2000 Hf3000 Hf4000 Hf5000
  • Blades Number：3 Blade or 4 Blades
  • Processing Type：Forging
  • Blades Model：Spiral
  • Application：S: Energy & Mining, Well Drilling
  • Transport Package：Wooden Case
  • Specification：5 7,8 "~ 42"
  • Trademark：TR Solids Control
  • Origin：Xi′an, China
  • HS Code：84748090
  • Production Capacity：1000PCS,Mont

Description

Bit Size

(in)

Working OD

(mm)

End OD of body(mm)

ID

(mm)

Length

(mm)

Thread code on both endsDrill string typeNear bit typeTopDownTopDown6152.2121511200NC383 1/2 REG6 1/4158.76 1/2165.17 1/2190.5159571600NC464 1/2 REG7 7/82008 3/8212.7159
165711600
1800NC46
NC508 1/2215.2159
165
1788 3/4222.29 1/2241.3178
1971600NC50NC50NC509 5/8244.518006 5/8 REG9 7/8250.812 1/4311.2203
209761800NC56
6 5/8 REGNC56
6 5/8 REGNC56
6 5/8 REG6 5/8 REG16406229
241.32000
2200NC61
7 5/8 REGNC61
7 5/8 REGNC61
7 5/8 REGNC61
7 5/8 REG17 1/2444.524609.626660.428711.2Note: Stabilizer can be made according to customer's special requirement.

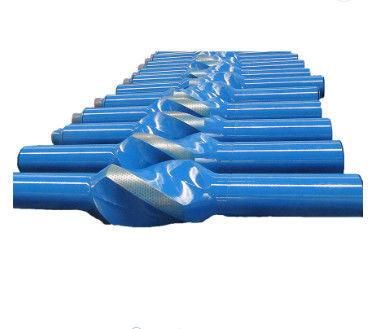

Oil Integral Spiral Blade String Drilling Stabilizer for Oilfield

Optional Stabilizers


We offer several options for IBS, in both alloy steel and non-magnet materials:
Spiral Integral Blade Stabilizer;
Straight Integral Blade Stabilizer;
Non-Magnet Integral Blade Stabilizer.



Competitive Advantages


1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
