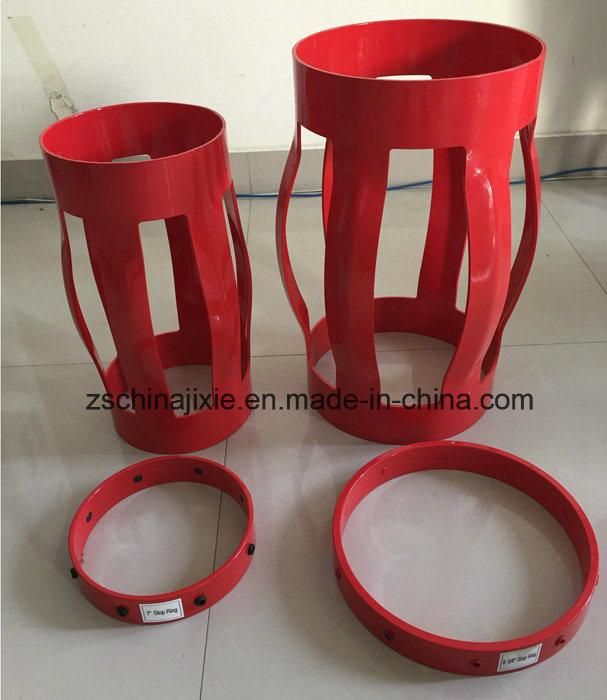

API Q1 Slip on Weld Bow Spring Centralizer for Well Cementing

Puyang Zhongshi Group Co., Ltd.
  • Certification：ISO 9001:2000, API
  • Surface Treatment：Spray-Paint
  • Centralizer Type：Elastic
  • Material：Spring Steel
  • Type：Centralizer
  • Sample：Avaliable

Base Info

  • Model NO.：single piece centralizer
  • Features：High Restoring Force
  • Transport Package：Wooden Case
  • Specification：4 1,2"~20"
  • Trademark：ZS
  • Origin：Henan
  • HS Code：8431
  • Production Capacity：10000 Piece,Pieces Per Month

Description

Model(in)Hooping In-Dia.(mm)Hooping
thickness
 (mm)Hooping height(mm)Total Length(mm)Max. Out-Dia.(mm)Spring
Pieces5-1/2*8-1/2142-1483-590-120650±50225±557*9-5/8181-1863-590-120650±50255±567*8-1/2181-1863-590-120650±50235±568-5/8*12-1/4223-2283-590-120650±50330±589-5/8*12-1/4250-2553-590-120650±50330±5810-3/4*12-1/4274-2763-590-120650±50330±5913-3/8*17-1/2342-3473-590-120650±50450±51118-5/8*24476±13-590-120600±50610±51220*26510±13-590-120600±50660±512
Feaures
1) Material: 65Mn seamless pipe
2) Type: One Piece Construction
3) Certificate: API 10D and ISO certified
4) Size: 4 1/2''---20''. More special sizes or combination are available as requested.
5) High Restoring Force: has restoring force about 198% higher than API standard.
With highest restoring force, zero start force, zero running force.
6) No any weld point. No weakness point.
