• Model NO.：TQseries
• Hydraulic System Max. Working Pressure：21MPa
• Rated Flow of Hydraulic System：110-170 L,Min
• Overall Dimension：1580*900*860mm
• Transport Package：Export Package
• Specification：760kg
• Trademark：BEYOND
• Origin：China
• Production Capacity：100sets,Month

Basic Info.

Model NO. TQseries Hydraulic System Max. Working Pressure 21MPa Rated Flow of Hydraulic System 110-170 L/Min Overall Dimension 1580*900*860mm Transport Package Export Package Specification 760kg Trademark BEYOND Origin China Production Capacity 100sets/Month

Product Description

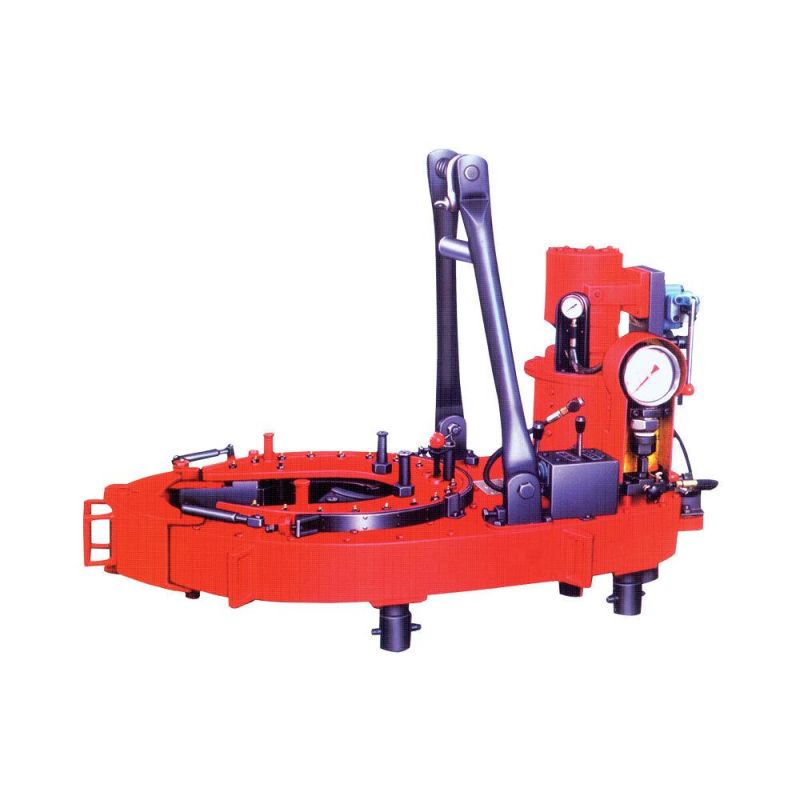

TQ Series of Casing Tongs are widely used for making up or breaking out pipes or casings in diameters of4"--13/".The tong heads are designed"open" type and can freely clamp and escape from the casing. TQ casing Tongs are safe,reliable, and easy to handle with high mobility. This series of tongs can be connected to computer controlling units and can serve as ideal well mechanical tool for surface operations in oil fields. National Invention Patent of the tong has been got. The tongs are designed and manufactured according to API Spec 7K "Specification for Drilling and Well Servicing Equipment".
