• Type：Centrifuges
• Bowl Diameter：450
• Bowl Speed：3200
• Bowl Length：1250
• Capacity：50
• G-Force：2035
• Separation Point：2-5um
• Transport Package：Wooden
• Specification：2650X1800X1700
• Trademark：TR Solids Control
• Origin：China
• Production Capacity：15 Sets, Month

Basic Info.

Type Centrifuges Bowl Diameter 450 Bowl Speed 3200 Bowl Length 1250 Capacity 50 G-Force 2035 Separation Point 2-5um Transport Package Wooden Specification 2650X1800X1700 Trademark TR Solids Control Origin China Production Capacity 15 Sets/ Month

Product Description

Drilling Mud decanter Centrifuge is widely used in oil and gas drilling, Waste Decanter Centrifuge used in vertical cuttings dryer, remove all the soids in the drilling fluids.
Drilling Mud decanter centrifuge adopts centrifugal force to separate solid particles out of drilling fluid. Different solid or particle have different density and flow speed, drilling mud decanter centrifuges also can separate particles as different size and density. Mud Centrifuges is widely used in oil and gas drilling, chemical, foodstuff, pharmacy, mineral beneficiation, water treatment, etc. industries.Waste Decanter Centrifuge used in drilling waste management(DWM).
The feed enters the bowl through a stationary inlet tube and is accelerated smoothly by an inlet rotor. The resulting Drilling Mud Centrifuge forces make the solids collect on the wall of the bowl. The conveyor and the bowl rotate in the same direction, but at different speeds, which has the effect of moving the solids towards the conical end of the bowl for removal.

Mud Centrifuges Technical Parameters

Model	TRGLW355N-1	TRGLW450N-2	TRGLW450N-3	TRGLW550N-1
Bowl Diameter	355mm (14inch)	450mm (17.7inch)	450mm (17.7inch)	550mm (22inch)
Bowl Length	1250mm(49.2inch)	1250mm(49.2inch)	1600(64inch)	1800mm(49.2inch)
Max Capacity	40m3/h	60m3/h	70m3/h	90m3/h
Max Speed	3800r/min	3200r/min	3200r/min	3000r/min
Rotary Speed	3200r/min	3000r/min	2800r/min	2600r/min
G-Force	3018	2578	2578	2711
Separation	2~5μm	2~5μm	2~5μm	2~5μm
Main Drive	30kW-4p	30kW-4p	45kW-4p	55kW-4p
Back Drive	7.5kW-4p	7.5kW-4p	15kW-4p	22kW-4p
Weight	2950kg	3200kg	4500kg	5800kg
Dimension	2850X1860X1250	2600X1860X1250	2950X1860X1250	3250X1960X1350

Variable Speed Decanting Centrifuge Technical Parameters

Model	TRGLW355N-1V	TRGLW450N-2V	TRGLW450N-3V	TRGLW550N-1V
Bowl Diameter	355mm (14inch)	450mm (17.7inch)	450mm (17.7inch)	550mm (22inch)
Bowl Length	1250mm(49.2inch)	1250mm(49.2inch)	1600(64inch)	1800mm(49.2inch)
Max Capacity	40m3/h	60m3/h	70m3/h	90m3/h
Max Speed	3800r/min	3200r/min	3200r/min	3000r/min
Rotary Speed	0~3200r/min	0~3000r/min	0~2800r/min	0~2600r/min
G-Force	3018	2578	2578	2711
Separation	2~5μm	2~5μm	2~5μm	2~5μm
Main Drive	30kW-4p	30kW-4p	45kW-4p	55kW-4p
Back Drive	7.5kW-4p	7.5kW-4p	15kW-4p	22kW-4p
Weight	2950kg	3200kg	4500kg	5800kg
Dimension	2850X1860X1250	2600X1860X1250	2950X1860X1250	3250X1960X1350

Waster Decanter Centrifuges for drilling fluids solids control
Waste Decanter Centrifuges used in vertical cuttings dryer, remove all the soids in the drilling fluids. We are an exporter of Drilling Mud Centrifuges.Our factory approval the API Q1,Mud Centrifuges have the API certification.TR solids control is the designed,selling,production,service and delivery of China Drilling Centrifuges manufacturer. We will provide the high quality Mud Dewatering Centrifuge and best service.Your best Drilling Waste Decanter Centrifuge start from TR solids control.

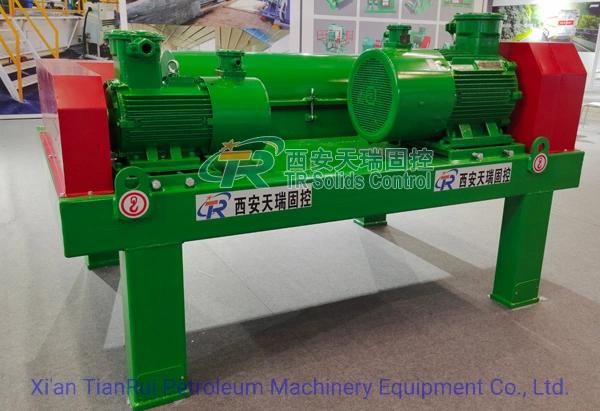

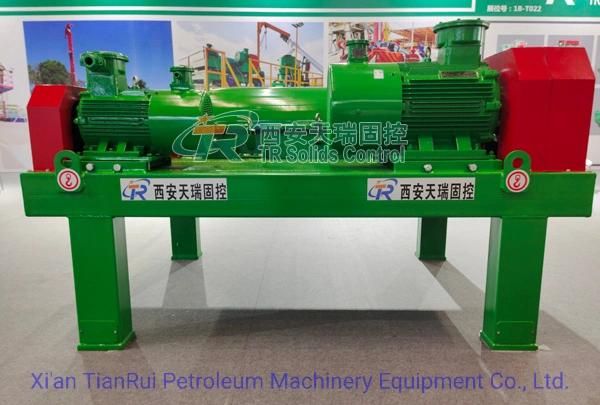

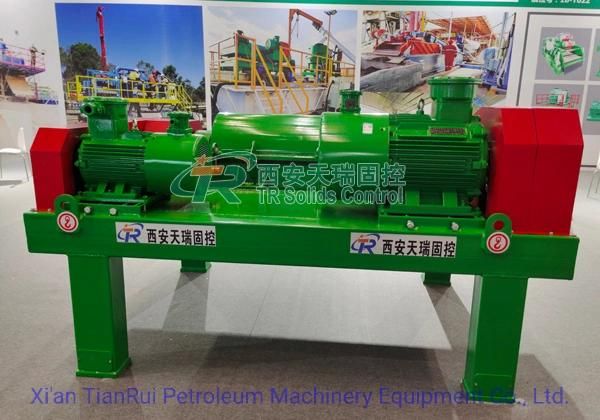

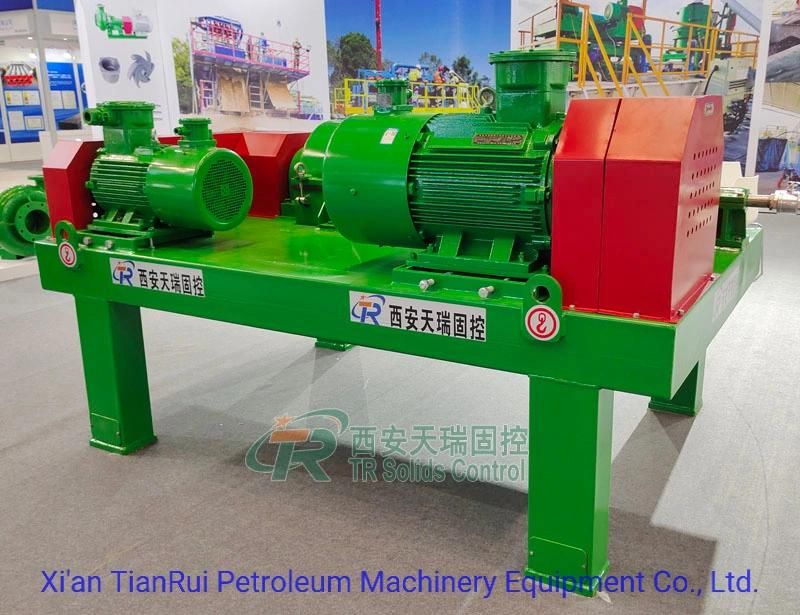

Decanter Centrifuges Photos
