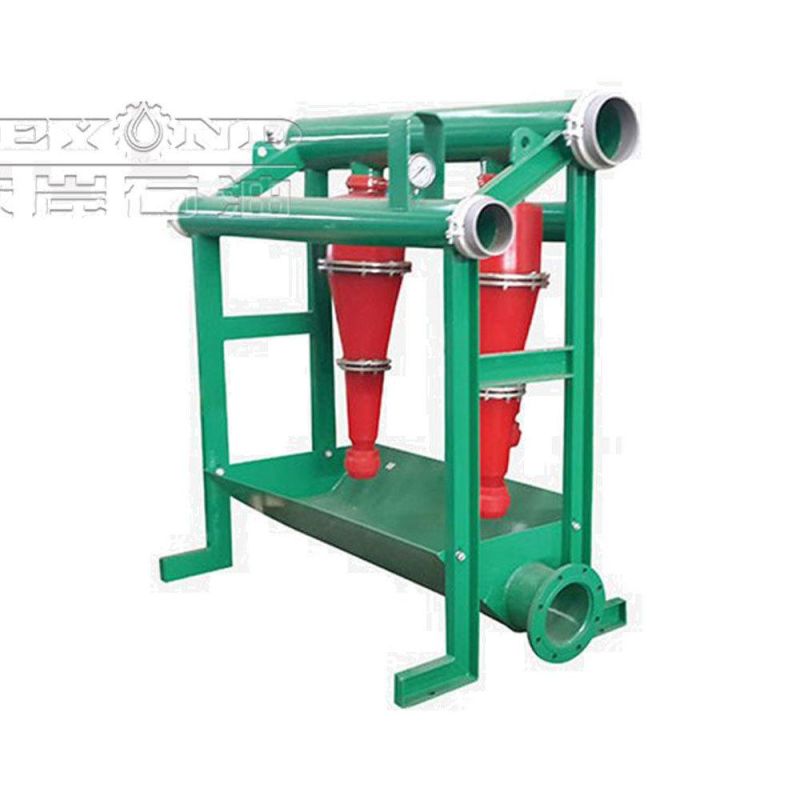

Solid Control System Jzqj Double Hydrocyclone Desander
Shandong Beyond Petroleum Equipment Co., Ltd.- After-sales Service：1year
- Warranty：1year
- Certification：ISO 9001:2000
- Material：Stainless Steel
- Model：Jzqj300*2
- Hydrocyclone Diameter：300mm
Base Info

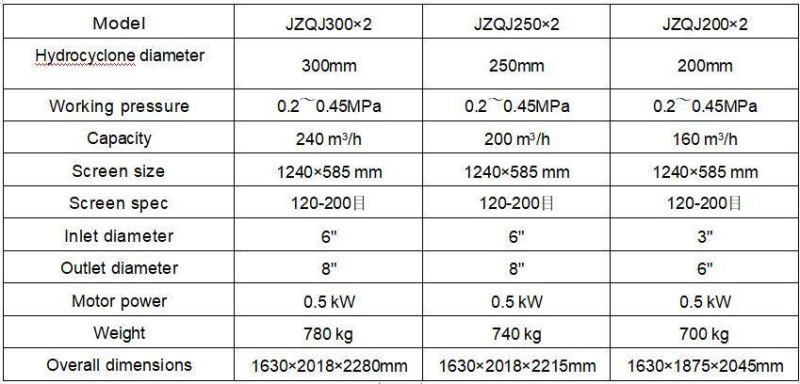

- Model NO.：JZQJ Double series
- Working Pressure：0.2~0.45MPa
- Capacity：2400m3,H
- Screen Size：1240*585 mm
- Screen Spec：120-200
- Inlet Diameter：6"
- Outlet Diameter：8"
- Motor Power：0.5 Kw
- Overall Dimensions：1630*2018*2280mm
- Transport Package：Export Package
- Specification：780kg
- Trademark：BEYOND
- Origin：China
- Production Capacity：10sets,Year
Description
As a solids control equipment of the second stage in drilling operation, desander is used to remove harmful solid particles of 40-74µm in drilling liquid.Suspending particles can be separated from the liquid under the centrifugal acceleration, by use of working principle of centrifugal subsidence. At present time, six types,JZQJ300×2,JZQJ250×2, JZQJ200×2 and JZQJ300×1, JZQJ250×1, JZQJ200×1are available. The former applies to over 3000-meter-long drills, and the latter applies to small drills of less than 3000 meters and service rig.
