Product Description

 Drilling Manifold

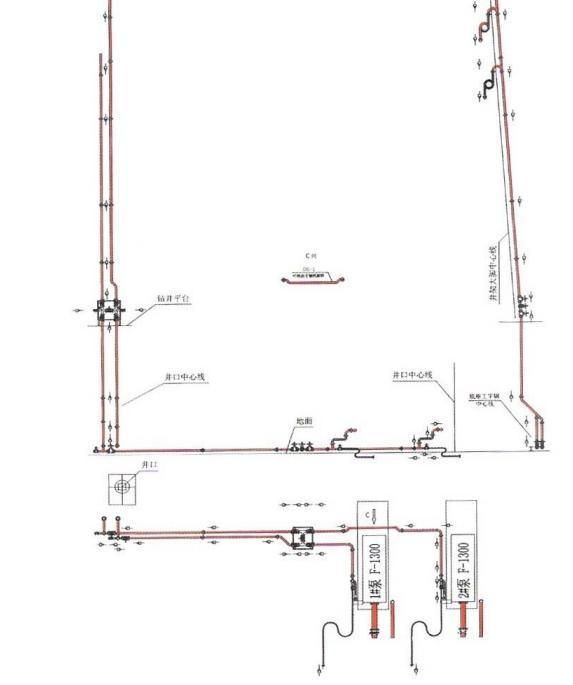

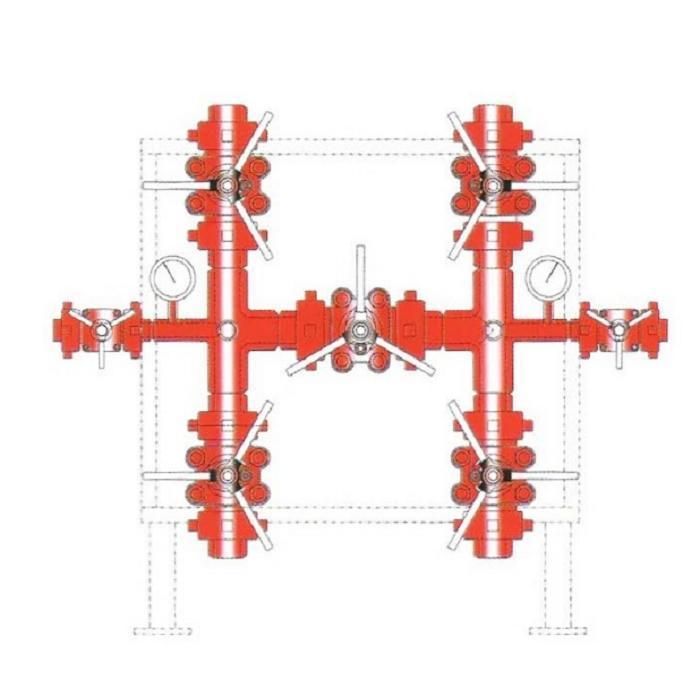

Feature of ZJGH100/35 drilling fluid manifold:
  ZJGH100/35 drilling fluid manifold consists of Z23Y 100-5000PSI & Z23Y 50- 5000PSImud valve ,high-pressure spherical union, high- -pressure cone union,tee,high-pressure hose, elbow,pressure gauge,and pup joint etc.
  The gate and valve seat of Z23Y- 5000psi mud valve are welded with carbide against erosion and corrosion, so that it can enlarge the working life, and reduce operating torque .



Installation:

1. First clean up each sealing face and sealing groove of union and coat it with grease and get rid of dirt form the pipeline.
2. 2. Check whether each jointer is fastened or not .

Usage gist & maintenance:

1. Regularly inject mud gate valve with grease to maintain the gate valve ;
2. Regularly check whether all connecting position and fixing bolts are loose ;
3. If leak around sealing position, the seal should be replaced immediately ;
4. Keep the outer surface of the manifold clean and paint it against rust regularly.

Notice:
  Z23Y- 5000PSI hard sealing mud gate valve is only used for pipeline opening/closing but for choke valve so as to avoid damage against sealing face .

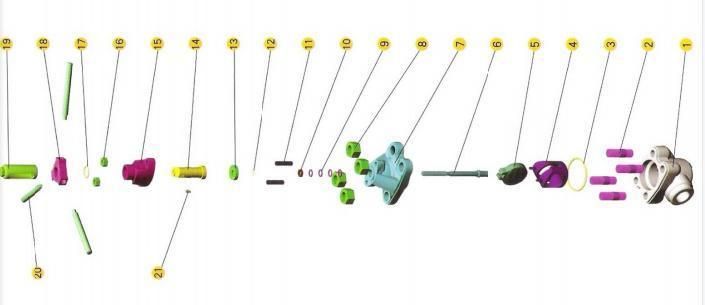

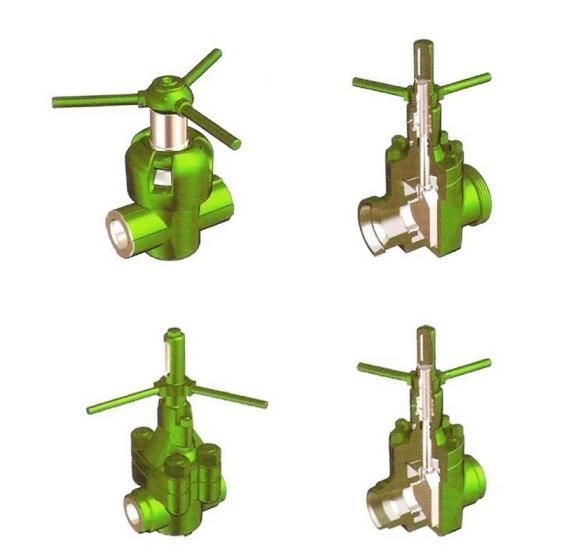

Drilling fluid manifold valve:




Item	Component	Qty	Material
1	Body	1	A487
2	Body Stud	4	A193
3	O-Ring	1	NBR
4	Seat	1	NBR
5	Gate	1	316
6	Stem	1	316
7	Bonnet	1	A487
8	Body Stud Nut	4	A194
9	Packing	3	NBR
10	Packing Ring	1	Steel
11	Bonnet Stud	2	A193
12	O-Ring	1	NBR
13	Retainer Ring	1	Steel
14	Stem Screw	1	Steel
15	Screw Housing	1	Steel
16	Bonnet Stud Nut	2	A194
17	O-Ring	1	NBR
18	Hub	1	Steel
19	Stem Protector	1	Ductile Iron
20	Handle	3	Steel
21	Key	1	Steel

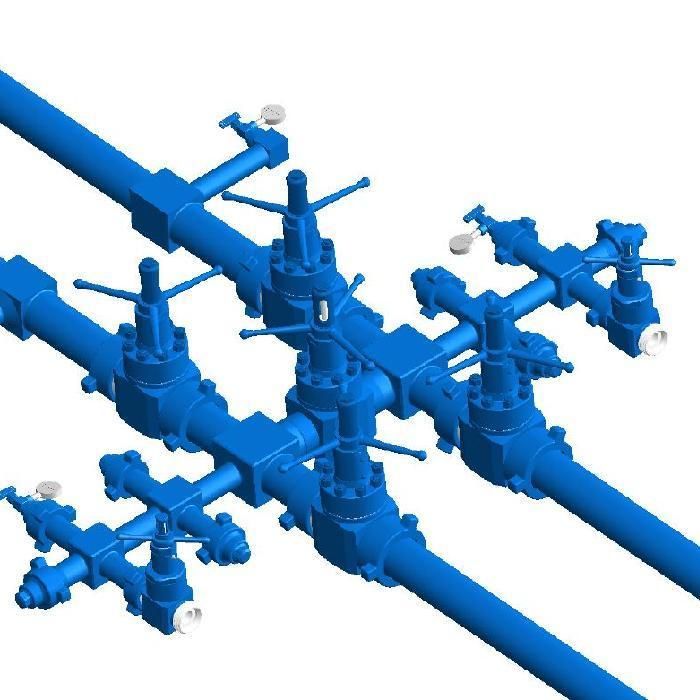

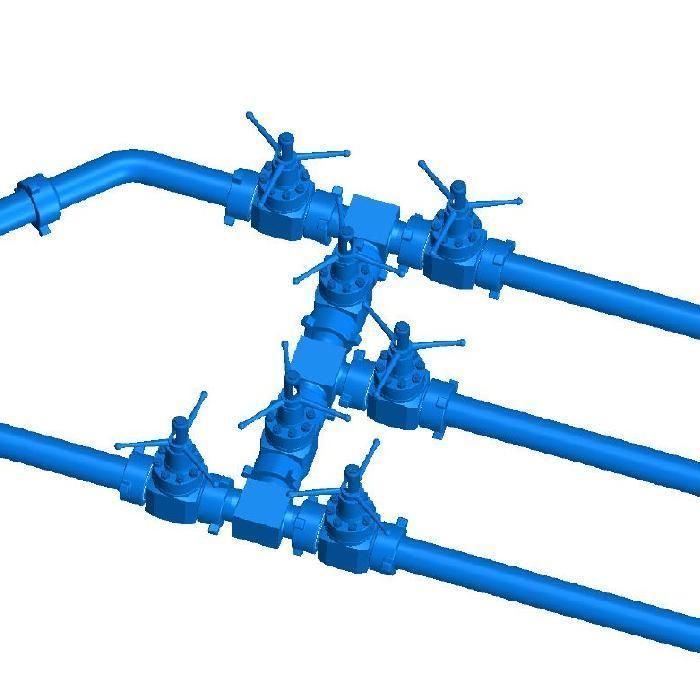

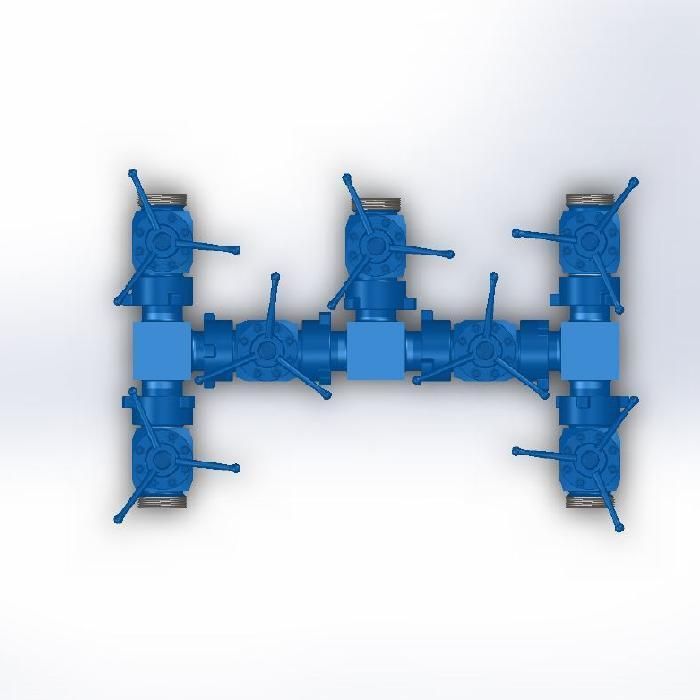

 Product show:
