• Transport Package：Common Export Packing
• Specification：standard
• Trademark：xinhuafa
• Origin：Cn
• HS Code：84139100
• Production Capacity：50000sets,Per Year

Basic Info.

Transport Package Common Export Packing Specification standard Trademark xinhuafa Origin Cn HS Code 84139100 Production Capacity 50000sets/Per Year

Product Description

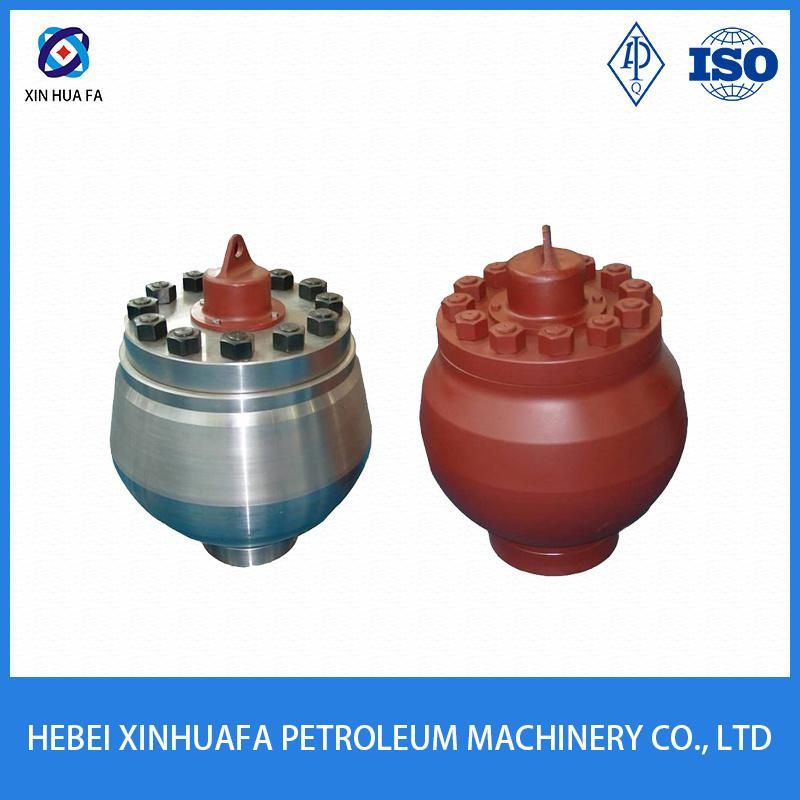

oil drilling mud pump Pulsation Dampener


Air bag assembly is a part of mud pump, used as pressure balance on mud pump, the max pressure is 5000psi. It is forged by high quality alloy steel 35CrMo or 40CrMnMo, which holding high machinery performance and sprying technology.We can manufacture it used on almost all types of mud pumps or customize in accordance with your request.

features:

1. Pulsation Dampener are forged with 4130 Low-Temperature Resistance Alloy Steel

2. Pulsation Dampener has precise inside chamber size with surface roughness 6.3, increase the life span of the bladder.

 3. Available in various materials to meet a wide range of applications

4. We have 7 national patents. We are going to build a complete customer service system, set up a Houston, TX based warehouse for various of expendables.

Xinhuafa produces a series of API7K-compliant mud pumps ranging from F-500 to F-2200. F-2200 is a tri-cylinder, single-action, heavy-duty, high-pressure drilling pump with a maximum power of 2,200HP, maximum working pressure of 52MPa, and maximum displacement of 77.65L/s.

F-1300, F-1600, F-1300L and F-1600 mud pumps have a Max. Pump pressure of 34.5MPa (5000Psi) and a displacement of 46.5L/S with a liner of Φ180mm. These two models are the first choice for medium and deep drilling rig as an assorted component.

F-1600,F-2200 mud pumps with high-power and high-pressure are developed to meet drilling requirements of offshore deep-water, terrestrial and horizontal wells, especially in desert areas.

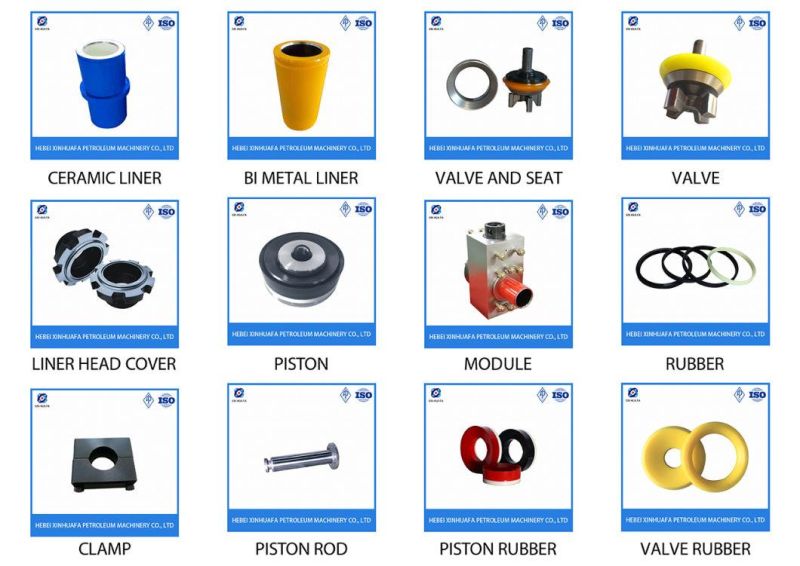

We can supply :
BOMCO & EMSCO :
F-500  F-800  F-1000  F-1300  F-1600  D-375 D-700
LANSHI:
3NB-1300C  3NB-1000   3NB-1000C  3NB-800
QINGZHOU:
SL3NB-1300A  QZ-1000  QZ-500  QZ-350  QZ-800 SL3NB-1600
HHF:
3NB-1600F  HHF1300/1600
GARDNER DENVER :
PZ-7  PZ-8  PZ-9  PZ-10  PZ-11
IDECO:
T-500  T-800  T-1000  T-1300  T-1600
NATIONAL: P-50  8-P-80 9-P-100  10-P-130  12- P-160  14-P-200  14-P-220 K-700 K-700A  K-500 K-500A OILWELL :
A-350PT  A-560PT  A-600PT  A-850PT A-1100P  A-1400PT A-1700PT
RUSSIAN:
8T-650  UNBT-600 UNBT-950 UNBT-1180L UNBT-950A UNBT-400 BT-600 UB-590 UNB-600 8T310 8T650-01
