Bonded Rubber Piston

HEBEI XINHUAFA PETROLEUM MACHINERY CO., LTD.
  • Manufacturing Process：Forging
  • Surface Treatment：Spray-Paint
  • Operation Pressure：Vacuum
  • Material：Cast Steel
  • Module：Fb1600,F1600,12p160,Pz-9,A1700PT,T1600
  • Application：Piston Pump

Base Info

  • Specifications：60 to 300mm
  • Advantage：Durable
  • Tensile Strength：>610MPa
  • Name：Mud Pump Urethane Piston
  • Package：Standard
  • MOQ：3
  • Port：Tianjin
  • Model：F Series,3nb Series,etc
  • Theory：Centrifugal Pump
  • Transport Package：Wooden Box and Sea Shipment
  • Specification：standard
  • Trademark：xinhuafa
  • Origin：Cn
  • HS Code：841391000
  • Production Capacity：50000sets,Per Year

Description

Basic Info.

Specifications 60 to 300mm Advantage Durable Tensile Strength >610MPa Name Mud Pump Urethane Piston Package Standard MOQ 3 Port Tianjin Model F Series,3nb Series,etc Theory Centrifugal Pump Transport Package Wooden Box and Sea Shipment Specification standard Trademark xinhuafa Origin Cn HS Code 841391000 Production Capacity 50000sets/Per Year

Product Description

Mud Pump Piston

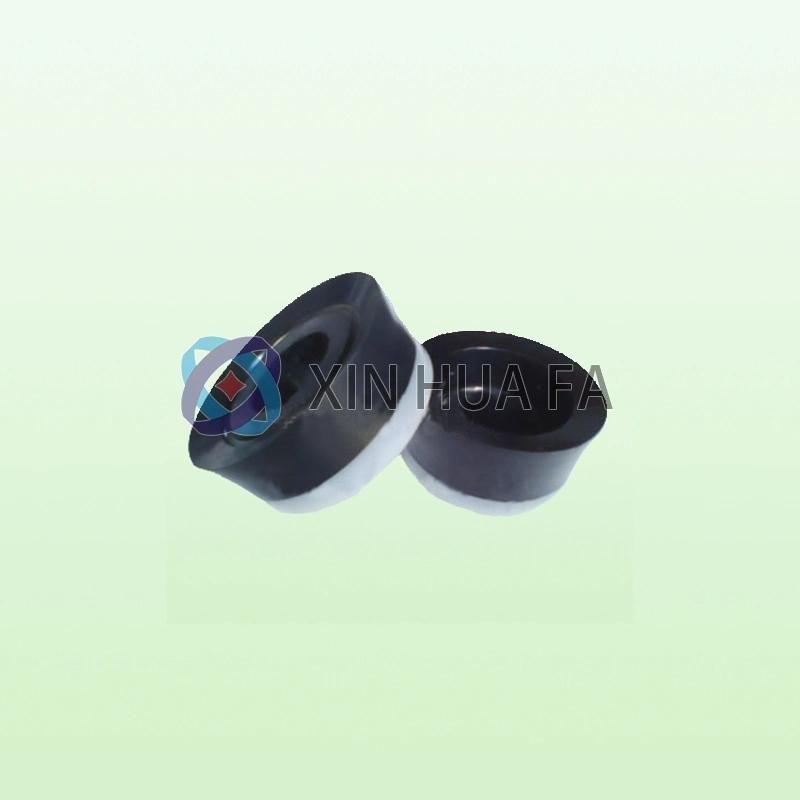

Pistons with Replacement Rubbers
This kind pistons are conform with API Standard and has very good performance in various drilling conditions. The piston hub is processed with premium forging steel. The piston rubber is made from specially formulated compounds which are resistant to the effects of heat, oil and water. The multi-ply fabric reinforced backings used in the production of the piston rubbers has high tensile strength, chemical products resistance, wear resistance  and has long service life. This kind of piston can be interchangeable with other pistons that manufactured according to API Standard.

Bonded Polyurethane Pistons
This kind piston is to vulcanize the piston rubber on the piston hub directly, no need to use plates and snap rings, it suite to all kinds of mud especially suit to used on high pressure jet drilling and ceramic liners with long service life. It can be interchangeable with other pistons that manufactured according to API Standard.

Bonded Rubber Pistons
This kind of piston is made of special nitrile rubber which has a good performance of heat resistance, oil resistance, water resistance, suite to use in the working condition of high pressure, long stroke etc, especially suite to use on the liner that has a certain abrasion.

Piston Replacements
Supply a full line of piston replacements including piston hubs, plates, sanp rings and piston rubbers.

Bonded Rubber Piston
Bonded Rubber Piston


Product Parameters
Russian pumpUNBT950,UNB600,8T650,UNBT 1180L,NBT600,NBT300ect.
BOMCO/Emsco/HongHuaFB1300/1600, F1300/1600, F800/1000, F500 & some duplex pumps.
Gardener denverPZ 7, PZ 8/9, PZ 10/11, KF-FXK, FY-FXD, FD-FXX, FG-FXG, FQ-FXQ, FF-FXP, FG-GXG.
National7P50, 8P80, 9P100, 10P130, 12P160, 14P220, JWS165, JWS340/400, C250/350, K700, K500, K380.
OilwellA560/600PT, A850/1100PT, A1400/1700PT, 214P, 810P.
IdecoT500, T800/1000, T1300/1600.
WirthTPK1000, TPK1600, TPK2000/2200.
WeatherfordMP-5,MP-8,MP-10,MP-13,MP-16

Features, Advantages and Benefits:

This piston is the best choice for oil-based and synthetic drilling fluids.

The piston is bonded to the hub for optimal strength and extrusion resistance.

The improved seal design centers the piston and promotes longer piston life with reduced liner wear.

The cut-back hub protects the liner from damage.

The dual-durometer elastomeric compound resists extrusion while ensuring a tight seal and improved wiping action.

The piston comes complete with a hub O-ring and sleeve.

Company profile

Hebel Xinhuafa Petroleum Machinery Co. LTD was established in 2006,with 5000m2 plant.The company focuses on R&D of mud pump fittings and several R&D results were horned with awards as well as patented for invention. The company is engaged in product design, manufacturing and service on all the quality oilfield replacement parts, including mud pump fluid end parts including Fluid end modules, liners, pistons, valves,&seats, extension rods, piston rods, valve covers etc.

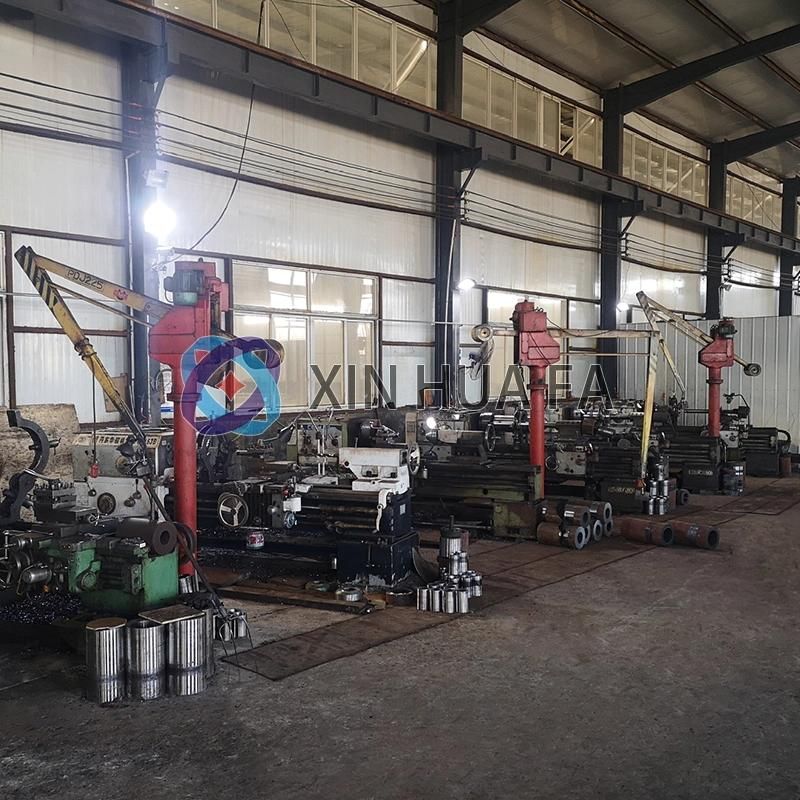

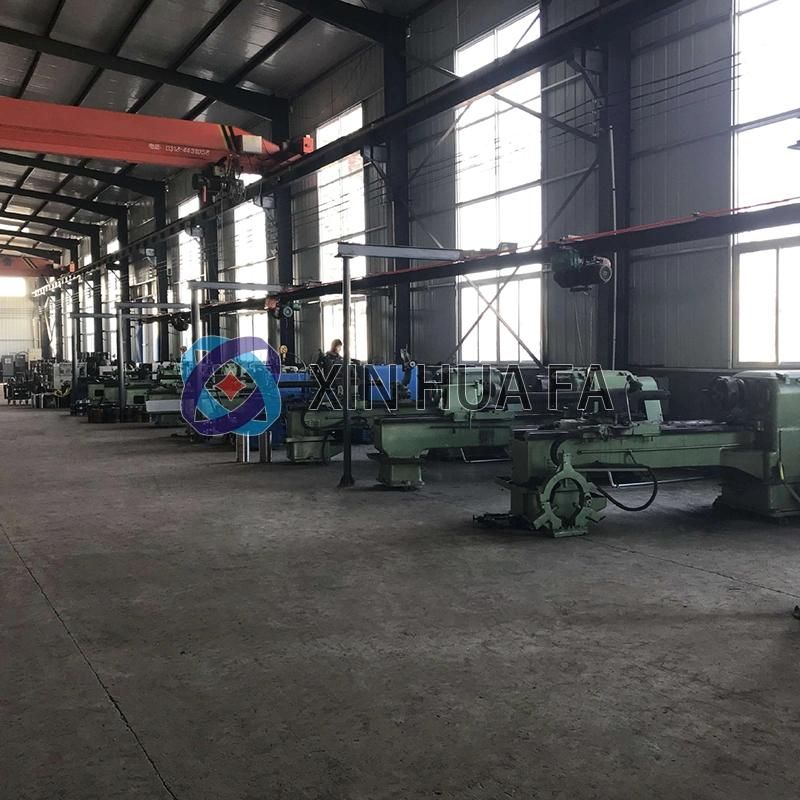

The company holds a professional technical team and is equipped with advanced machineries,improving the technical skills and updating product quality,

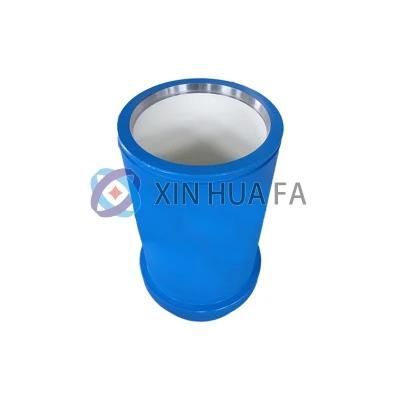

Our products are certified by ISO9001 quality control. We supply products not only our oilfields company of domestic, but also dozens of countries all over the world, such as USA, Canada, Indonesia and Iran. With several years' persistence, we are widely accepted as a professional supplier of high quality mud pump cylinder liners and other parts in fluid end modules.


Bonded Rubber Piston
Bonded Rubber Piston

If interested,please contact me:
