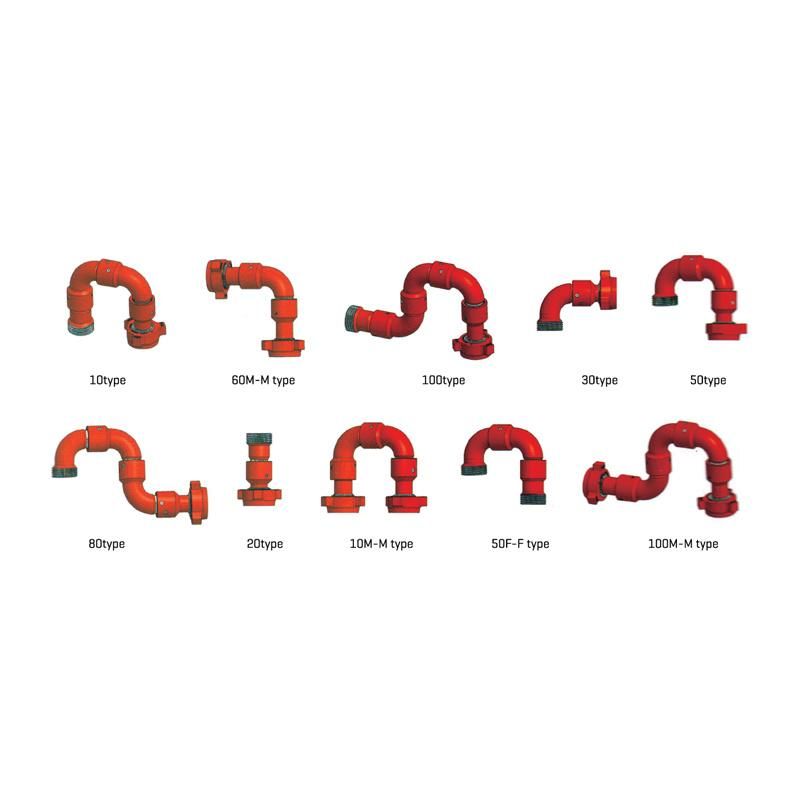

Type50 Fxm Swivel Joints with Hammer Union Connection
Dongying On-tech Equipment Co., Ltd- After-sales Service：Online Services
- Warranty：12 Months
- Manufacturing Process：Casting
- Surface Treatment：Galvanized
- Operation Pressure：High Pressure
- Material：Cast Steel
Base Info
- Model NO.：All models
- Pressure：5000~15000psi
- Application：Connect Drilling Transportation Loops for Slurry
- Connection：Hammer Union, Integral, Thread, Welding
- Color：Red, Blue, as Required
- Certificate：API
- Transport Package：Wooden Cases
- Specification：1" ~ 4"
- Trademark：On-tech
- Origin：China
- HS Code：84314310
- Production Capacity：1000PCS,Months
Description
Overview
Product Description
Detailed Photos

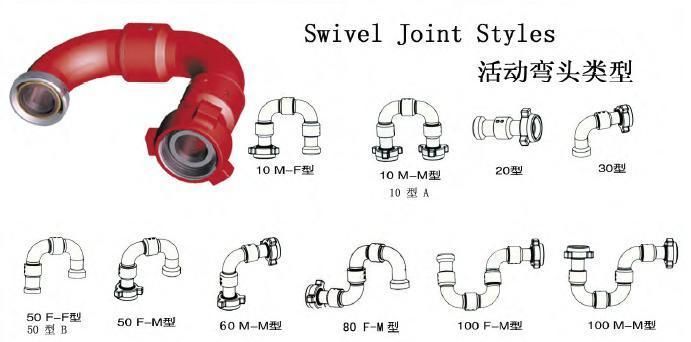

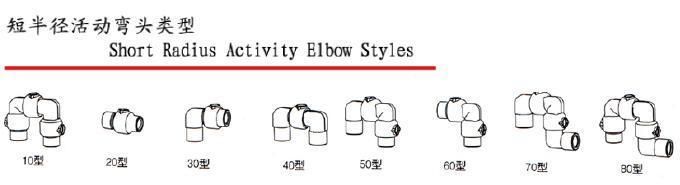

1.Product name:Short Radius of the Elbow or Short Radius Swivel Joint
2.Pressure of work : 5000PSI to 15000PSI
3.Norminal Menstruation: 1" ~4"
4.Working Temperature: -29degree ~121 Degree(PU grade)
5.Standard :API 16C &NACE MR0175
6.Connection method: Female Thread or union connection
| item | value |
| Model Number | Swivel Joint |
| Technics | Forged |
| Connection | union, thread, etc. |
| Shape | Equal |
| Head Code | Round |
| Product name | Swivel Joint |
| Application | Petroleum |
| Color | Red, blue, as request |
| Size | Customized Size |
| Keyword | Swivel Joint |
| Working Pressure | 35Mpa 70Mpa 105Mpa |
| Surface treatment | spray paint |
