• Specification：Customizable
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84749000
• Production Capacity：300 PCS , Month

Basic Info.

Specification Customizable Trademark TR Solids Control Origin Xi′an, China HS Code 84749000 Production Capacity 300 PCS / Month

Product Description

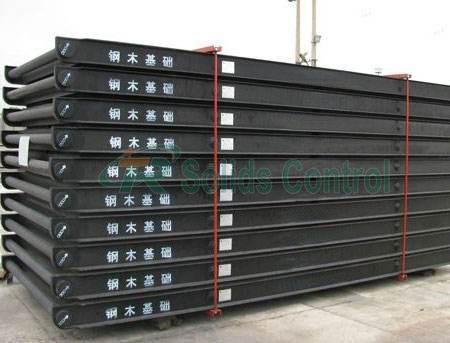

Steel Wood Foundation Structure

The wood of this product is processed into square wood by Larch with harder wood and stronger water resistance than Korean pine, and then treated according to the national standard GB9221-88 for railway sleeper wood preservation. The oil immersion depth is more than 10 mm, and the local compressive strength limit of the transverse grain is more than 40 kg/cm_. All steels are made of standard die steel.

Advantages of Steel Wood Foundation

Steel-wood foundation is designed to reduce drilling cost year by year. It has the advantages of high strength, strong bearing capacity, good interchangeability, convenient transportation, low cost, convenient installation, strong shock absorption, non-cracking, no fear of water, corrosion resistance, no distortion, long service life and easy recovery and storage.

Usages of Steel Wood Foundation

Steel-wood foundation is mainly used in drilling base, mud pump, purifying tank, power house, SRC room, oil tank, water tank and other drilling rig equipment foundation to ensure the stability of drilling equipment for a long time. Steel-wood foundation is suitable for drilling in plateau, plateau, desert, hill, beach, swamp and other different areas with drilling depth of 1000-7000m by various drilling rigs such as ZJ20, ZJ30, ZJ40, ZJ50 and ZJ70. The Steel-wood foundation replaces the traditional concrete foundation, greatly reduces the drilling cost, improves the economic efficiency, not only saves the land, but also improves the field management level.

Use Method of Steel and Wood Foundation

Steel-wood foundation is suitable for all kinds of surface layers, especially for soft layers. This product can be directly put on the surface of the ground, because the steel-wood foundation has a large contact area with the ground, and the requirements for the foundation are low. It can be used as long as the following conditions are met: the bearing capacity of the foundation surface is greater than 0.06 Mpa and the flatness of the foundation surface is less than 40 mm.

Before placing equipment on Steel-wood foundation, surface debris on Steel-wood foundation should be cleaned up to avoid instability of equipment placement.
