• Model NO.：KQ65,21 KQ65,35 KQ80-65,35 KQ65,70 KQ78-65,70 KQ65
• Type：Composite
• Model：Kq65,21
• Rated Pressure：3000psi
• Nominal Size：Main 2-9,16″ Side 2-9,16″
• Working Temperature：-46°c ~121°c (L . U)
• Available Medium：Crude Gas
• Psl：Psl1 ~ 4
• Material Class：AA ~Hh
• Pr：Pr1 ~ 2
• Connection Type：Clamp, Flanged
• Transport Package：Wooden Case
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84749000
• Production Capacity：300 Sets , Month

ItemComponentQtyMaterialRemark1Pressure Gauge4  2Needle Valve4  3Bull Plug14130 4Casing Head Housing14130 5Threaded Gate Valve1  6Casing Spool1  7Flanged Gate Valve11



Technical Parameters for X-mas Tree Assembly:

ParameterTypeKQ65/21KQ65/35KQ80-65/35KQ65/70KQ78-65/70KQ65/105KQ78-65/105Rated Pressure3000psi5000psi5000psi10000psi10000psi15000psi15000psiNominal SizeMain2-9/16″2-9/16″3-1/8″2-9/16″3-1/16″2-9/16″3-1/16″Side2-9/16″2-9/16″2-9/16″2-9/16″2-9/16″2-9/16″2-9/16″Working Temperature-46°C ~ 121°C ( L . U )Available MediumCrude GasPSLPSL1 ~ 4Material ClassAA ~ HHPRPR1 ~ 2Connection TypeClamp,FlangedFlanged

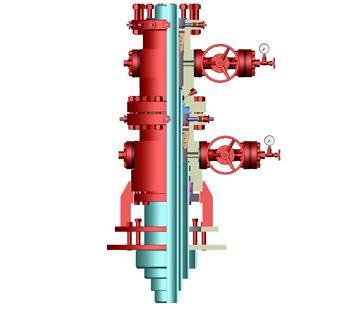

Casing Head Assembly







The casing head is a kind of part of connecting casings and wellheads. It is used to support the weight of technical casing and intermediate casing and seal the annular space between the casings, which provides a transition joint for the installation of the tubing head, Christmas tree and other wellheads. The two-side-outlet design allows the casing head to supply cement, monitor and control well's sinking, and inject balance liquids etc.



The casing head produced by our company has a standard configuration, which accepts the casing hangers produced by our company. These casing hangers can be available in different sizes according to the casing procedure and the change of well head condition. The top flange of the casing head is in accordance with the requirements of API type 6B or BX flange.



The options open to the casing head are as follows:



• If required, it can be designed in integral or split structure.
• The connecting type of casing head and surface casing is weld, thread and slip type. The thread type is available as API CSG female threaded, API BTC female threaded.
• Matched casing hanger structural type: slip, thread(mandrel).
• The connecting type of side outlet includes thread, bolted flange and flange. The studded outlets contain 1 1/2" valve removal threads.
• In the bottom of casing head and casing spool sets casing secondary seal mechanism and sealing test port.





Parts List:



Item
ComponentQtyMaterial



Remark

1Lockdown Screw124130 2Packing Nut125140 3Packing Washer24410 4Packing60PTFE 5Slip Hanger Assy1  6Casing Head Housing14130




ItemComponentQtyMaterialRemark1Slip Hanger Assy1  2Lockdown Screw Assy12  3BT Seal Ring1NBR 4Casing Spool14130 5Grease Fitting4



ItemComponentQtyMaterialRemark1Socket Head Screw16  2Upper Lock Ring14140 3Seal Ring1NBR 4Lower Lock Ring14140 5Positioning Ring14140 6Slip14130
