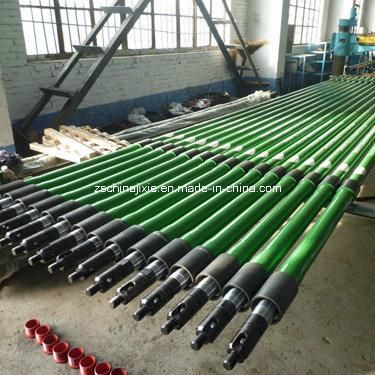

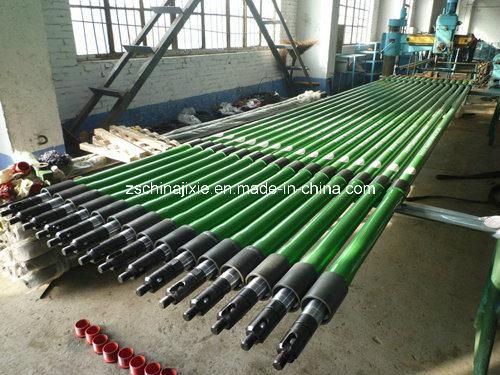

API 11ax Oilwell Subsurface Tubing/Sucker Rod Pump

Puyang Zhongshi Group Co., Ltd.
  • Certification：API 11ax, ISO
  • Type：Pumping Equipment
  • Material：N80
  • Certificate：Confirm to API 11ax
  • Barrel Length：8-30ft
  • Pump Bore：125-375

Base Info

  • Model NO.：Tubing pump
  • Plunger Length：2-7ft
  • Usage：Oil (Gas) Production Machinery, Oil and Gas Processing Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery
  • Power Type：Electric
  • Transmission System：Hydraulic
  • Transport Package：Wooden Case
  • Specification：8.5x1.1x23
  • Trademark：ZHongshi
  • Origin：Puyang
  • HS Code：84314310
  • Production Capacity：800set,Month

Description

Specification

Nominal Bore

In(mm)

Plunger Length

Ft(m)

Ma. O.D.

(mm)

Rod

In

Tubing

In

Stroke

Ft(m)

20-125TH1.25(32)

4-6

(1.2-1.8)

733/42 3/8





26.25(8.0)

20-150TH1.50(38)73

3/4

(5/8)

 4-6

(1.2-1.8)

      47.5/47.6 0.75      2 3/8(2 7/8) 24.61(7.5)

 25-150RHAC

RHAM

 1.50(38) 59.4/59.5 2 7/8

 25-175RHAC

RHAM

 1.75(44) 59.4/59.5 2 7/8

 25-200RWAC

RWAM

 2.00(51) 59.4/59.5 2 7/8

 30-225RHAC

RHAM

 2.25(57) 72.1/72.2 3 1/2

 30-250RWAC

RWAM

 2.50(63.5) 72.1/72.2 3 1/2



 Material and Surface Treatment

PartsMaterial, Surface treatmentSpecial requirementsBarrel

Carbon Steel, Chrome plate, nickel-phosphorous plate,

carbonitriding, carburized

Brass barrelPlungerCarbon steel, nickel spray, chrome plateDouble chrome plateBall & SeatStainless steel, Tungsten carbide, Titanium carbideNickel carbideCageAlloy steelHard-linedAPI 11ax Oilwell Subsurface Tubing/Sucker Rod Pump
