• Model NO.：TRSB5*4-11J
• Power：30kw
• Impeller Diameter：11inch
• Lift：30kw
• Electric System：60Hz
• Ex Standard：Exdiibt4,Iecex,a-Tex
• Weight：696kg
• Transport Package：Wooden Case or Pallet
• Specification：1696*568*805mm
• Trademark：TR Solids Control
• Origin：Xi′an, China
• HS Code：84748090
• Production Capacity：50 Sets, Month

ModelPowerFlowLift(m)EfficiencyNPSHElectricTRSB8×6-14J75KW320m3/h40m65%550HZTRSB8×6-12J355m3/h43m66%4.860HZTRSB8×6-13J55KW290m3/h33m64%5.550HZTRSB6×5-12J196m3/h48m61%360HZTRSB6×5-13J45KW180m3/h34m60%350HZTRSB5×4-14J149m3/h61m58%4.660HZTRSB6×5-12J37KW160m3/h30m60%350HZTRSB5×4-12J112m3/h45m58%4.660HZTRSB6×5-11J30KW120m3/h21m62%2.550HZTRSB5×4-12J112m3/h37m57%4.660HZTRSB5×4-12J22KW90m3/h30m56%4.550HZTRSB5×4-10J105m3/h30m57%4.260HZTRSB5x4-11J18.5KW90m3/h24m56%4.550HZTRSB4x3-12J55m3/h46m48%460HZTRSB4x3-13J15KW50m3/h40m48%4.550HZTRSB4x3-11J54m3/h35m47%460HZTRSB4x3-12J11KW45m3/h30m47%450HZTRSB3x2-12J28m3/h45m40%3.160HZTRSB3x2-12J7.5KW45m3/h24m46%450HZTRSB3x2-11J25m3/h35m41%3.160HZTRSB3x2-11J5.5KW20m3/h23m39%350HZ



Selection of Centrifugal Pump:

First determine the capacity equipped with your centrifugal sand pump. Generally when you choosing, the capacity should be a little larger than the matched equipment. There is a valve required in the centrifugal pump outlet to regulate flow rate.
Ensure how much lift your centrifugal pump needs. Choose centrifugal pump with high lift, because the loss of pipe line is very large.
If you use centrifugal pump for supplying mud to the desander and desilter, you'd better choose a lager capacity centrifugal pump. Because the desander and desilter require very strict in the pressure. If the chosen capacity of centrifugal pump is too small to supply the desander and desilter, the pressure is insufficient. Therefore, it will influence the working effect of desander and desilter.

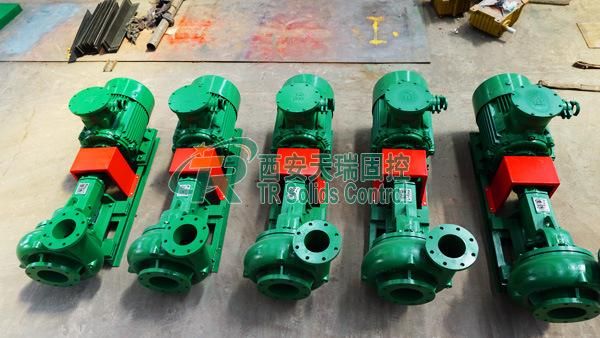

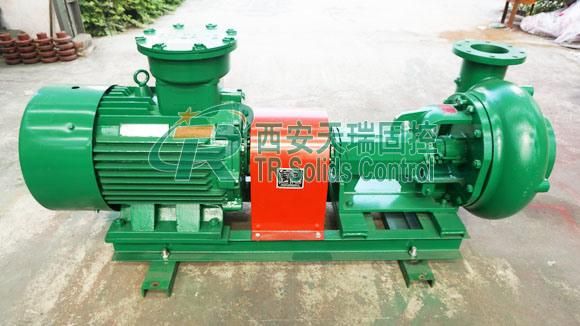

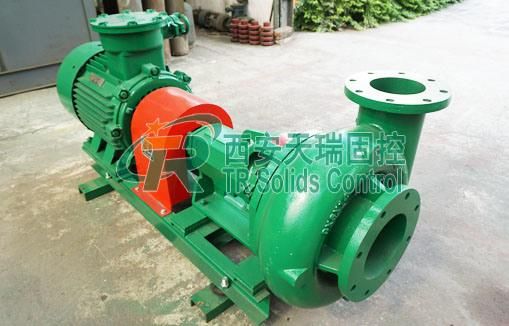

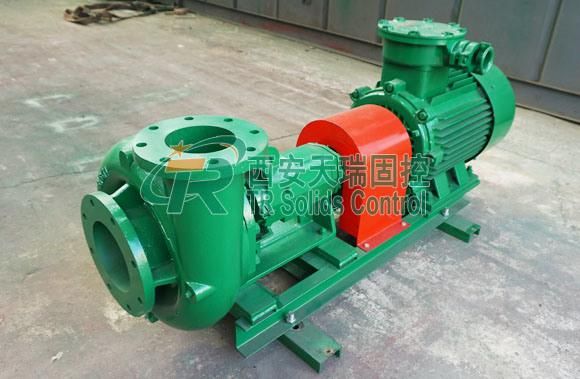

Design Features of TRSB Series Centrifugal Pump

1.Impeller with open vane structure
2.The open vane structure impeller reduces the shaft load to minimum, more suitable for transferring high density and high viscosity mud.
3.Higher efficiency and longer service
4.The vane profile complying with the hydraulic principle,
5.Increase the output and efficiency. Utilizing wear-resistant materials for the key parts to prolong the service life.
6.Axial adjustment structure
7.Axial adjustment structure makes it free to adjust the clearance between impeller and mechanical seal,ensuring equipment operation more reliable.
8.More choice
9.A variety of pump casing and impeller can meet different requirements of the customers.
10.The same power frame
11.The same power frame reduces the spare parts.

Are you finding a centrifugal pump manufacturer for your mud treatment problem? TR Solids Control is your best choice. As a professional and innovative specialist in this industry for more than 10 years, we could provide top quality solid control equipment and satisfying solution. Contact with us for more details about our desander, mud tank, shale shaker, decanter centrifuge, mud cleaner, mud agitator, vacuum degasser, shaker screen etc.

Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.

Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
