Oilwell 13 3/8 ′′ Casing Non Rotating Top and Bottom Cementing Plug
Puyang Zhongshi Group Co., Ltd.- Certification:ISO 9001:2000, ISO 9001:2008
- Surface Treatment:Without Processing
- Material:Rubber and Phenolic Resin
- Type:Cementing Plug
- Sample:Available
- Type 1:Conventional
Base Info
- Model NO.:5 1,2" -20"
- Type 2:Anti-Rotating
- Spec:5 1,2"-20"
- Color:Red and Black
- Transport Package:Wood Cases
- Specification:5 1,2"-20"
- Trademark:zhongshi
- Origin:Henan, China
- HS Code:843143100
- Production Capacity:2000PCS,Month
Description
Plugs:

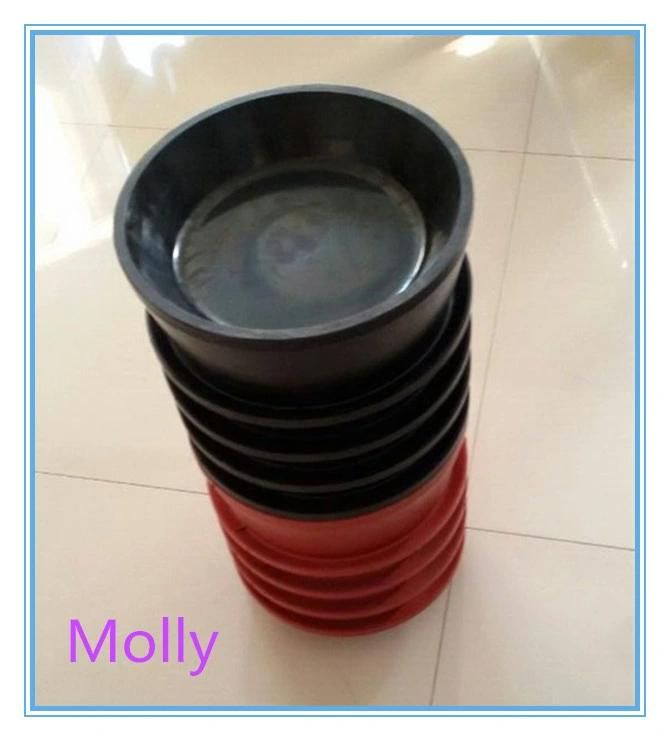

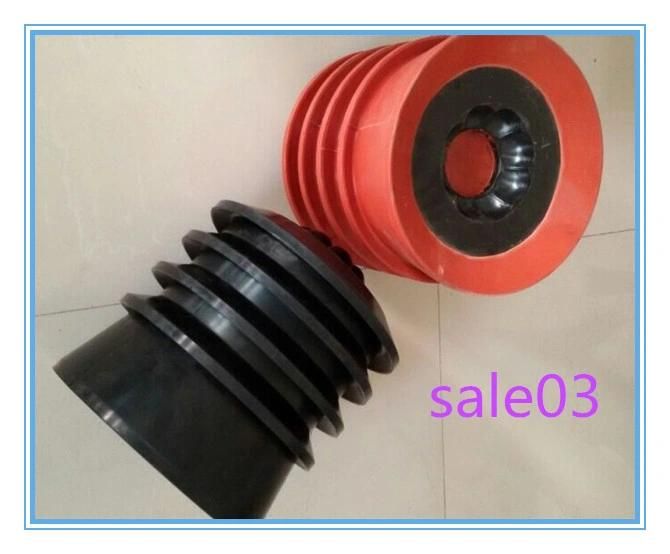

Cementing Plugs from high-performance special elastomers and core materials. These Cementing Plugs are specially designed with a positive wiping action to ensure that the casing is clean.
Wiper Fin O.D mm in mm in 4 1/2" 14.14-17.26 9.50-11.60 110 4.331 5" 17.11-35.86 11.50-24.10 122 4.803 5 1/2" 20.83-39.88 14.00-26.80 135 5.315 7" 25.30-56.55 17.00-38.00 170 6.693 7 5/8" 35.72-63.69 24.00-42.00 185 7.283 9 5/8" 53.57-79.62 36.00-53.50 235 9.252 10 3/4" 60.27-97.77 40.50-65.70 260 10.236 13 3/8" 71.43-107.15 48.00-72.00 333 13.110 20" 139.89-197.93 94.00-133.00 498 19.606
