• Model NO.：ZS12111
• Sample：Provide
• OEM：Accept
• Transport Package：Wooden Case
• Specification：4 1,2~20 in
• Origin：China
• HS Code：0
• Production Capacity：20000 Pieces,Month

Basic Info.

Model NO. ZS12111 Sample Provide OEM Accept Transport Package Wooden Case Specification 4 1/2~20 in Origin China HS Code 0 Production Capacity 20000 Pieces/Month

Product Description

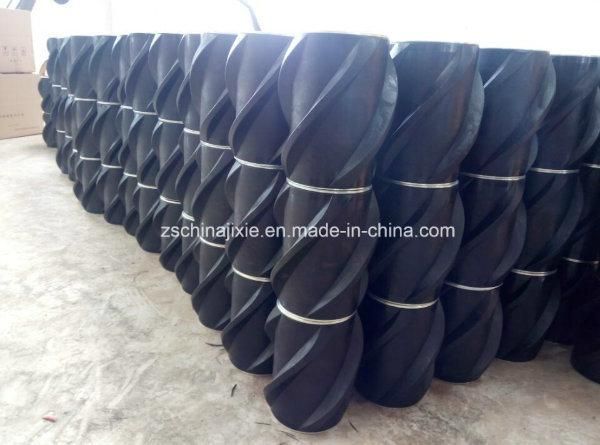

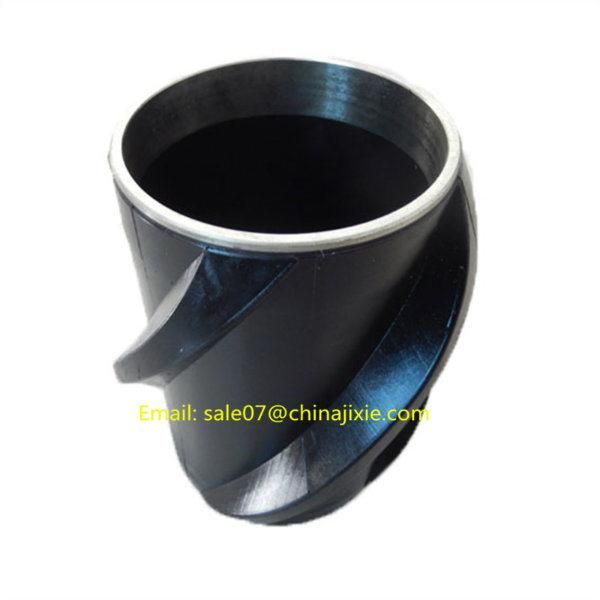

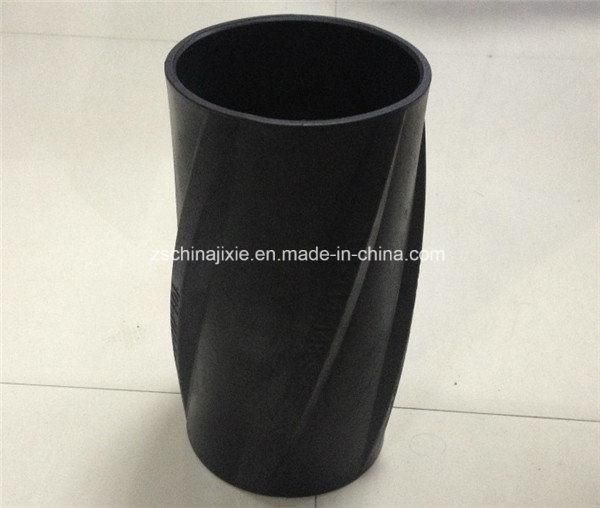

Spiral polymer casing centralizer


Model	Max OD(mm)	ID(mm)	Length(mm)
4-1/2"× 6"	145	116.5	200
5"×  6"	145	129	200
5-1/2"×  8-1/2"	205-210	142	200/300
6-5/8"×  8-1/2"	205-210	171	200/300
7"×  8-1/2"	205-210	181	200/300
7"×  9-1/2"	225-235	181	200/300
7"×  9-5/8"	225-235	181	200/300
9-5/8"×  12-1/4"	300-305	248	200
13-3/8"×  17-1/2"	430-435	346	200

 Polymer Centralizer/Plastic Centralizers Features:
1. plastic centralizer is designed to reduce drag and friction down hole it have lower friction factors, ultimate drag and rotational torque reduction, increased abrasion resistance for maximum stand-off.
2. Vanes are designed to enhance hole cleaning using maximized flow-by area.
3. They are design to provide optimum flow and its fins or blades overlap the entire 360-degree open hole circumference.
4. plastic centralizer withstands high well bore temperature up to 200 degree Celsius
5. plastic centralizer are well head friendly and have high impact with shock resistance, and Shock proof along with optimum tensile and yield strength.
6. plastic centralizer are constructed of one-piece in superior quality polymer.
7. Sizes are available from 4 1/2" to 20" for any hole combination.
 Please send an inquiry if you have interest.
